What is Automated Control Magnetic Tie-rod Hydraulic Cylinder
Magnetic tie-rod hydraulic cylinders are a standard industrial component used for precise position monitoring in automated systems. These cylinders feature a magnet integrated into the piston and work with external sensors to detect its position throughout the stroke.
Video
Parameter Table
| Model | FSR-SB-1TC40CB145DAC |
|---|---|
| Type | Double acting |
| Bore | 40mm |
| Rod | 22mm |
| Stroke | 145mm |
| Working Pressure | 14Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |

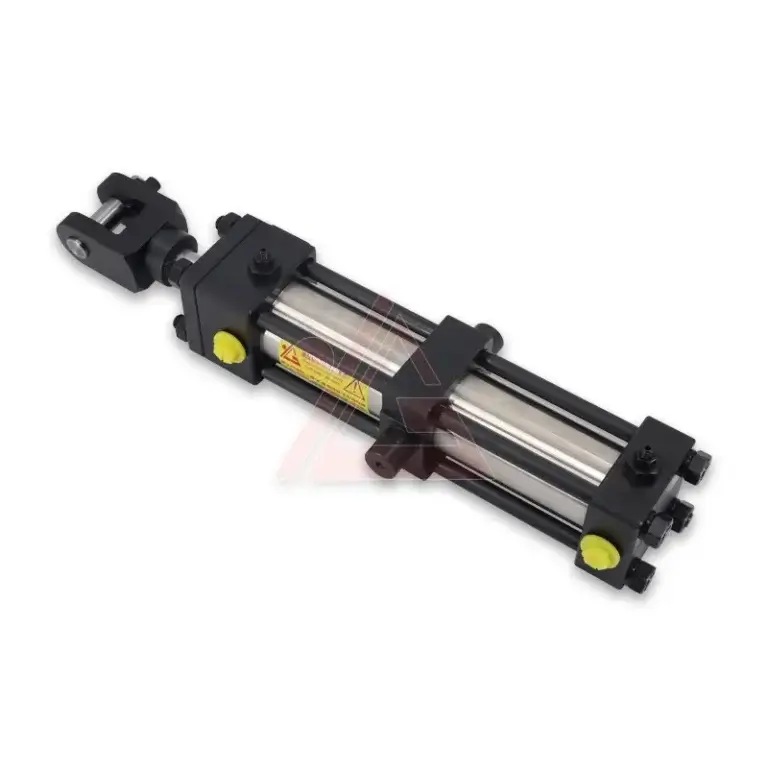

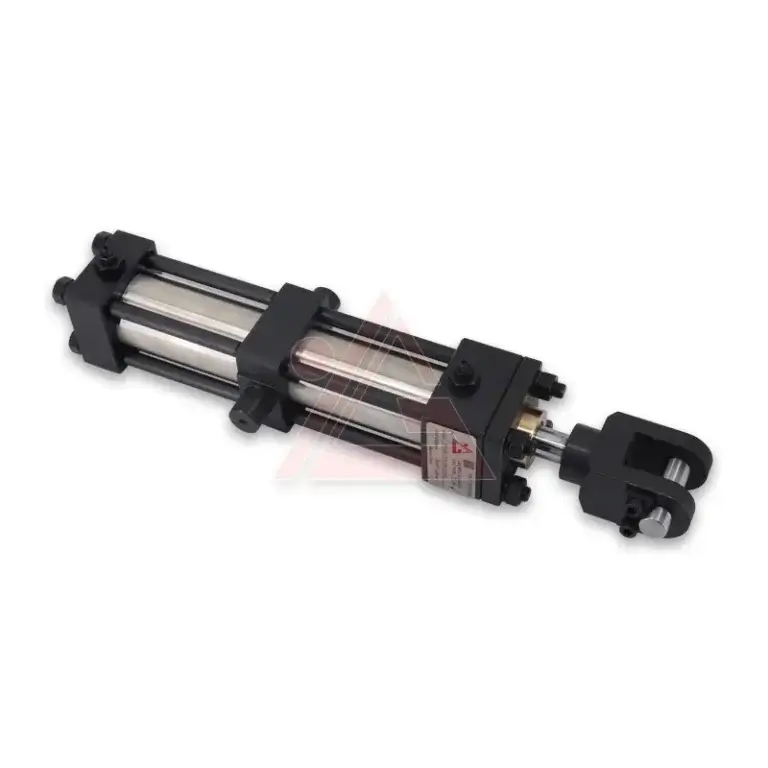

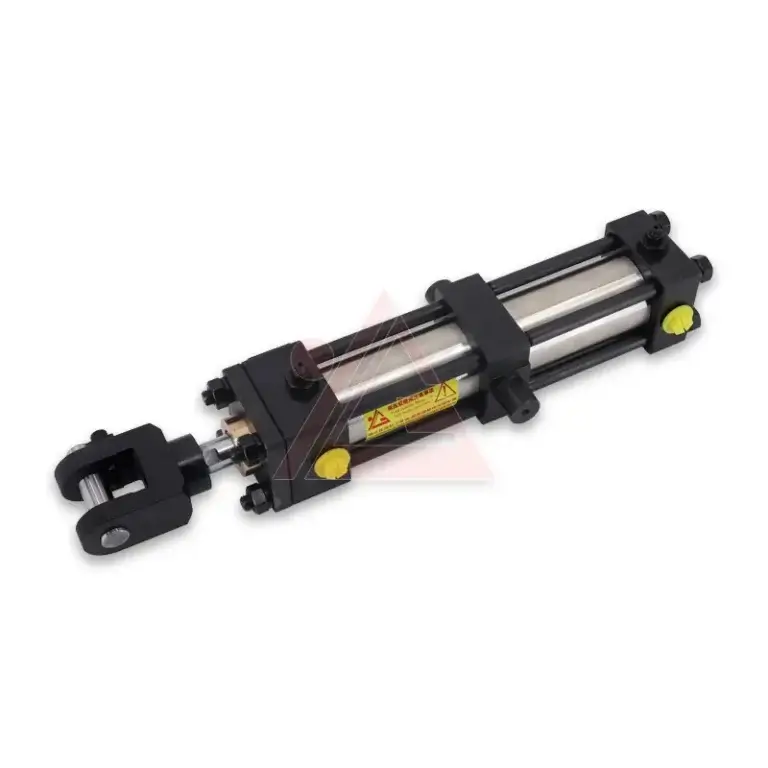

Details of Automated Control Magnetic Tie-rod Hydraulic Cylinder
Features of Automated Control Magnetic Tie-rod Hydraulic Cylinder
Real-Time Position Monitoring
The integrated magnetic sensor provides continuous feedback on the piston's exact location, which is crucial for systems requiring accurate movement and positioning.
High Repeatability and Accuracy
These systems can achieve very high accuracy and repeatability, down to sub-millimeter levels, essential for intricate operations like CNC machining, injection molding, and robotic movements.
Predictive Maintenance
Monitoring motion patterns and delays via sensor data can help identify potential issues like seal wear or fluid leaks before a major breakdown occurs, enabling proactive maintenance.
Applications
Widely used in construction equipment, industrial machinery, agricultural vehicles, material handling, and automation systems.
FAQ
Standard: 16-25MPa. High-pressure models: up to 35MPa (with 42CrMo alloy).
We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
Monthly output 400PCS, our products & service cover 20+ countries and regions.
Yes, we can produce by your samples or technical drawings.
