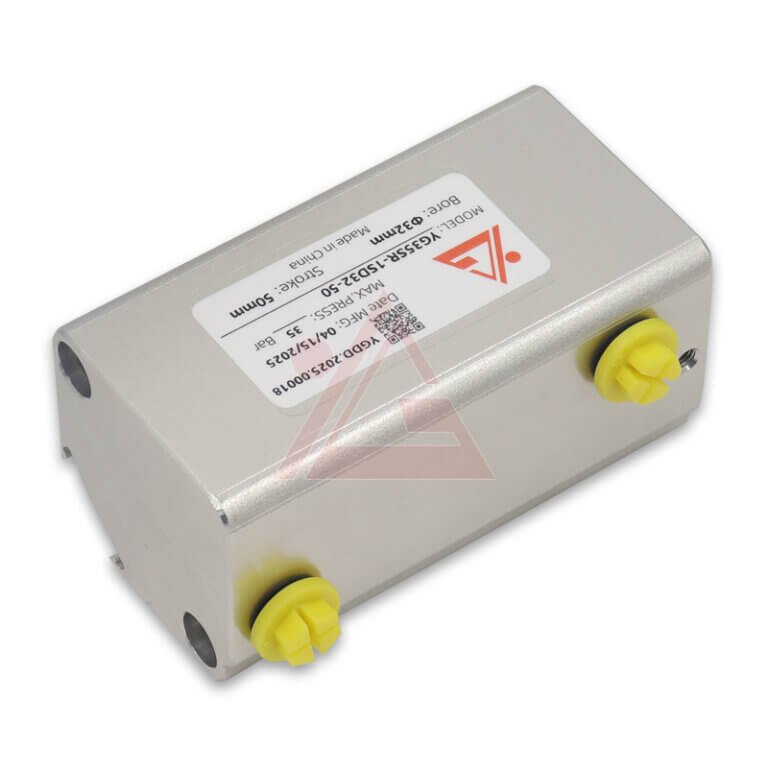

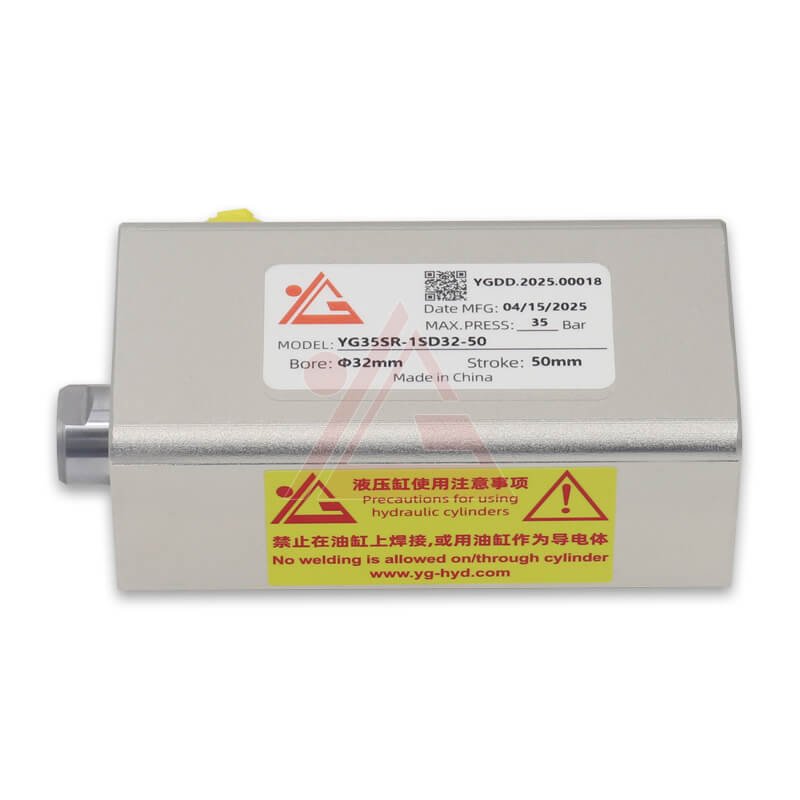

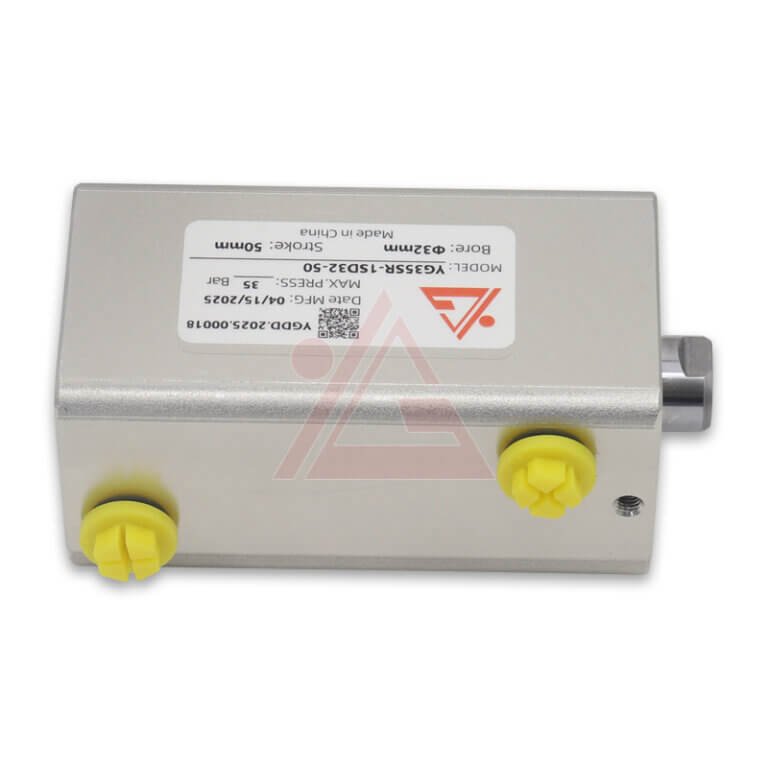

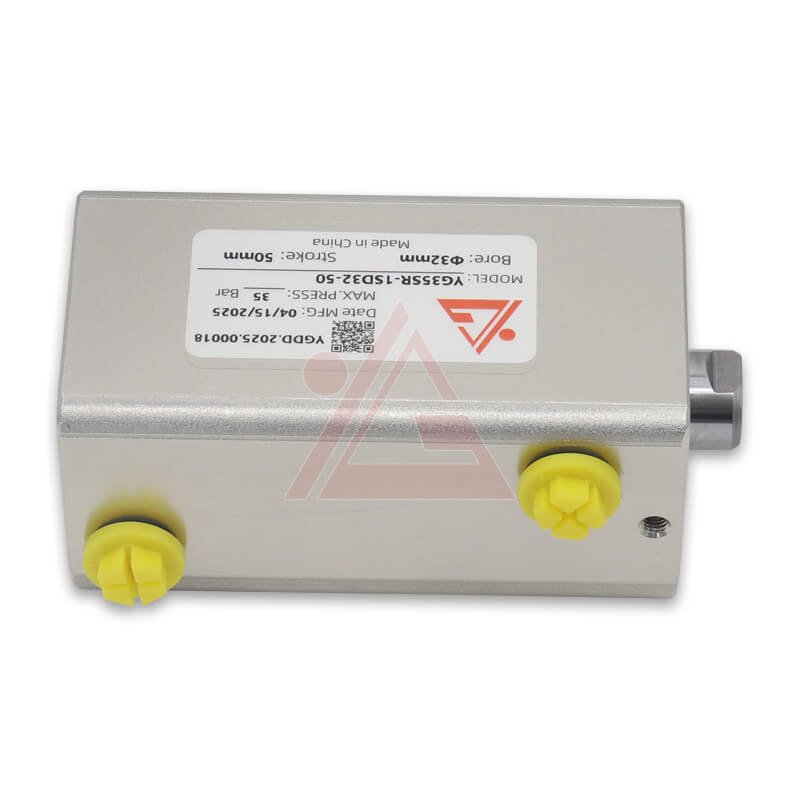

What is Durable Engineering Type Magnetic Compact Hydraulic Cylinder
A magnetic compact hydraulic cylinder is a specialized actuator designed for tight installations that require electronic position sensing. These cylinders integrate a magnet into the piston, allowing external sensors to detect the piston’s position without requiring complex internal mechanisms.
Video
Parameter Table
| Model | YG35SR-1SD32-50 |
|---|---|
| Type | Double acting |
| Bore | 32mm |
| Rod | 16mm |
| Stroke | 50mm |
| Working Pressure | 3.5Mpa |
| Tube | 45# Steel |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |

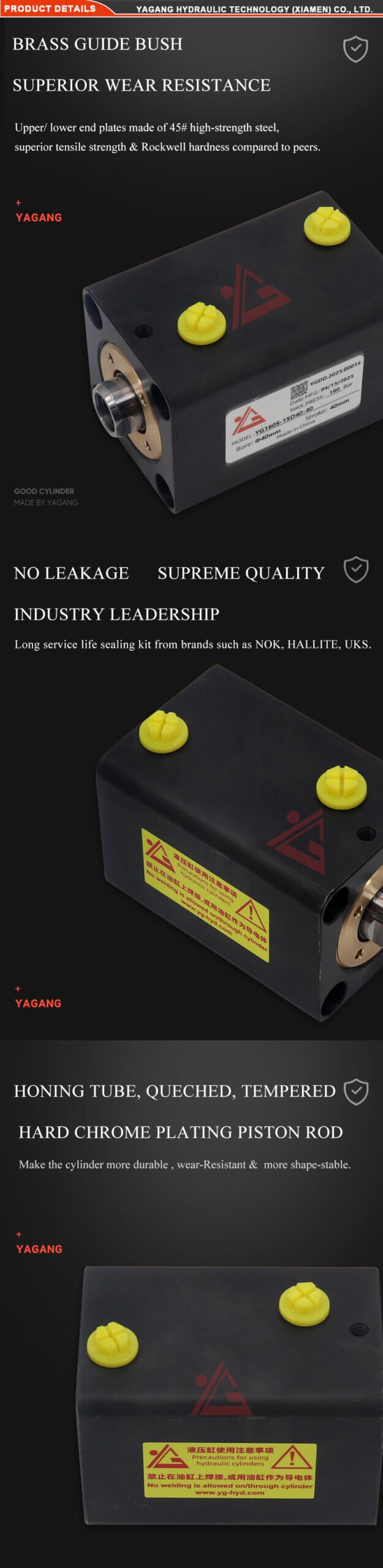

Details of Durable Engineering Type Magnetic Compact Hydraulic Cylinder
Features of Durable Engineering Type Magnetic Compact Hydraulic Cylinder
Precision & Non-Contact Sensing
Integrated magnets allow for real-time piston position detection via external sensors without physical wear, resulting in high repeatability (often down to 0.1 mm) and a longer operational lifespan.
Extreme Space Efficiency
Their "compact" design features a reduced overall body length compared to standard cylinders, allowing them to fit into tight machinery layouts like injection molds or robotic tooling.
High Force Density
Despite their small size, they utilize incompressible hydraulic fluid to generate significantly more force than equivalent pneumatic or electric actuators—often up to ten times the power density of electric motors.
Applications
Widely used in construction equipment, industrial machinery, agricultural vehicles, material handling, and automation systems.
FAQ
We have 3 production lines and can produce more than 4,00 hydraulic products every day.
Yes, we can produce by your samples or technical drawings.
In-house QC team: Strict inspections at each production stage.
Hard chrome plating (30-50μm, HV≥800), with optional laser cladding for extreme wear resistance.
Yes, 12-month warranty, lifetime tech support.
