What is Professional Durable Double-axis Compact Hydraulic Cylinder for Medicine Industry
A double-acting compact hydraulic cylinder provides controlled, powerful force in both extension and retraction strokes and is designed with a short overall length for use in space-constrained machinery. These cylinders feature ports at both ends for bidirectional hydraulic pressure.
Video
Parameter Table
| Model | YG35SD-1SD40-50 |
|---|---|
| Type | Double acting |
| Bore | 40mm |
| Rod | 45mm |
| Stroke | 22mm |
| Working Pressure | 3.5Mpa |
| Tube | 45# steel |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |

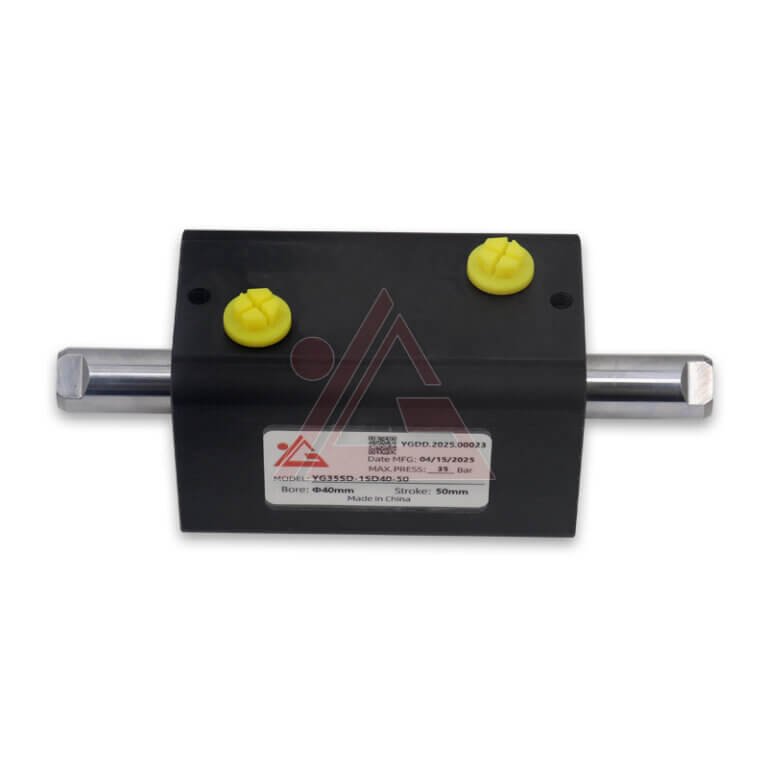

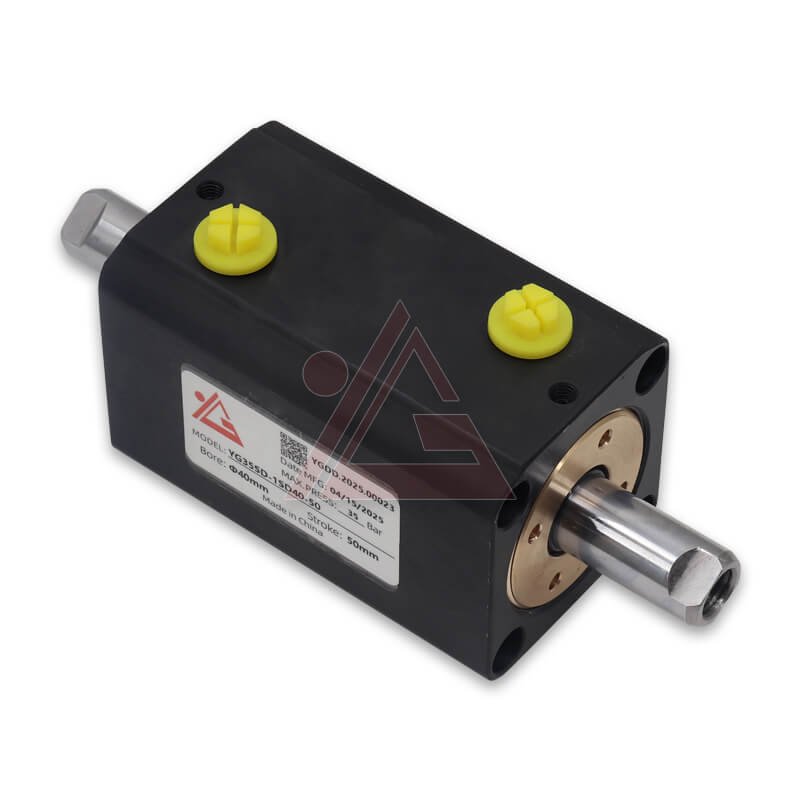

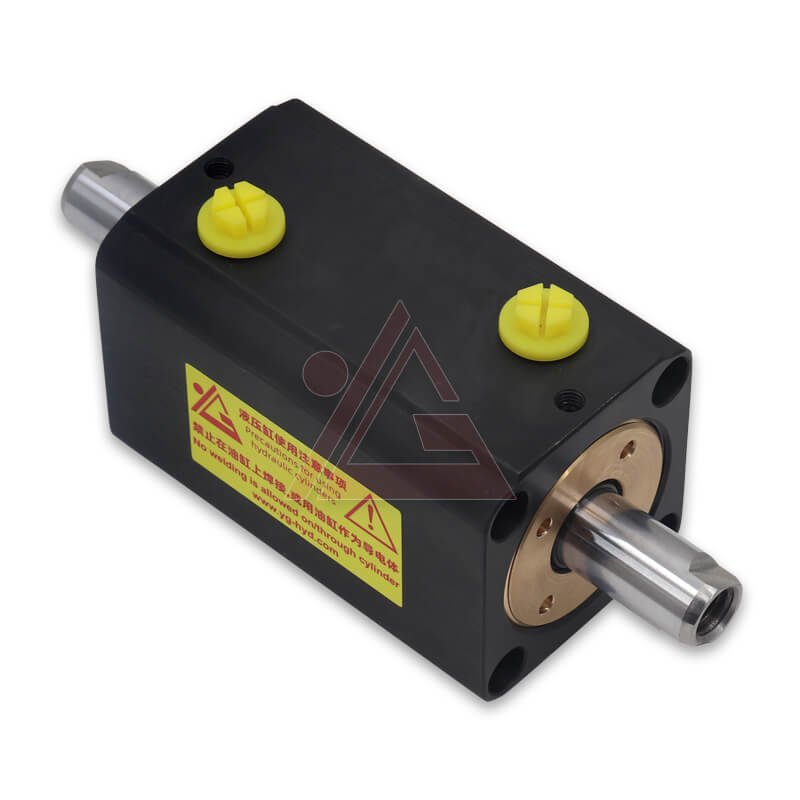

Details of Professional Durable Double-axis Compact Hydraulic Cylinder for Medicine Industry
Features of Professional Durable Double-axis Compact Hydraulic Cylinder for Medicine Industry
Bi-directional Force and Control
Unlike single-acting cylinders that rely on gravity or springs to return, double-acting cylinders use hydraulic pressure for both extension and retraction. This allows for push and pull functionality with equal precision.
Space Efficiency
In "compact" configurations—such as welded-body designs—these cylinders are smaller than tie-rod or spring-return models because they eliminate bulky external retraction mechanisms.
Faster Cycle Times
Retraction is powered by hydraulic fluid rather than slower external forces like gravity. This enables rapid, repeatable cycles essential for high-speed manufacturing and robotics.
Applications
Widely used in construction equipment, industrial machinery, agricultural vehicles, material handling, and automation systems.
FAQ
You can first contact us and inform us of the product specifications, model or drawings you desire. We will provide you with a quote and confirm the transportation method as soon as possible. Subsequently, we will draft the order for you. Please confirm the order amount and make the payment.
20days (standard), 20-35 days for custom orders.
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
Of course, We will keep track of the order throughout the process and promptly inform you of the production progress.
Yes, we can produce by your samples or technical drawings.
