A successful Hydraulic Cylinder Rebuild requires more than just mechanical skill—it demands the right tools for the job. Whether you’re a professional repair technician or an equipment owner planning to handle rebuilds in-house, having a properly equipped rebuild kit is essential for achieving lasting, reliable results. Using incorrect or makeshift tools can damage precision components, compromise seal integrity, and lead to premature failure. In this guide, we’ll cover the essential tools you need to perform a quality Hydraulic Cylinder Rebuild, from disassembly through final testing.
1. Safety and Preparation Tools
Before any work begins, safety equipment and proper preparation tools set the foundation for a successful rebuild.
Personal protective equipment (PPE): Safety glasses, gloves, and steel-toed boots protect against hydraulic fluid spray and heavy components.
Service manual: Always have the cylinder manufacturer’s specifications on hand for torque values, seal configurations, and disassembly procedures.
Labeling supplies: Masking tape and markers help you label hydraulic lines and components for accurate reassembly.
For a complete overview of the rebuild process, refer to our detailed guide on How to rebuild a hydraulic cylinder. Starting with the right safety tools ensures your Hydraulic Cylinder Rebuild proceeds without unnecessary risks.
2. Disassembly Tools
Proper disassembly prevents damage to precision surfaces that are critical to the cylinder’s performance.
Spanner wrenches or pin wrenches: Used to remove gland nuts and retaining rings without marring surfaces.
Brass punches and hammers: Soft-faced tools prevent scarring of the rod or piston when driving components apart.
Cylinder holding fixture: A sturdy bench-mounted vise with soft jaws securely holds the cylinder body during disassembly.
Hydraulic puller: For stubborn pistons or glands, a hydraulic puller applies controlled force without shock loading.
These tools ensure that during your Hydraulic Cylinder Rebuild, components are removed cleanly without introducing new damage that could compromise the final result.
3. Inspection and Measurement Tools
Accurate measurement is the backbone of a quality rebuild. Without precise measurements, you cannot determine whether components are within spec or need replacement.
Micrometers (outside and inside): Essential for measuring rod diameter, piston diameter, and wall thickness.
Dial bore gauge: Used to check cylinder barrel roundness, taper, and scoring depth.
Straightedge and feeler gauges: For checking rod straightness and surface flatness.
Surface roughness comparator: Helps evaluate seal groove and rod surface finish requirements.
Caliper: A versatile tool for quick measurements of seals, grooves, and mounting dimensions.
Whether you’re working on a single acting cylinder , double acting cylinder or a more complex configuration, precise measurement tools are non-negotiable for a successful Hydraulic Cylinder Rebuild.
4. Cleaning Tools and Supplies
Contamination is the enemy of hydraulic systems. Proper cleaning tools ensure that every component is spotless before reassembly.
Parts washer or solvent tank: Allows thorough cleaning of metal components.
Lint-free wipes and shop towels: Standard rags can leave fibers that contaminate seals; lint-free materials are essential.
Small brushes: For cleaning seal grooves, threaded areas, and internal passages.
Compressed air: Used to blow dry components after cleaning, but ensure air is filtered and moisture-free.
Plastic wrap or clean covers: Protect cleaned components from dust until assembly.
A clean work environment and proper cleaning tools directly impact the longevity of your Hydraulic Cylinder Rebuild.

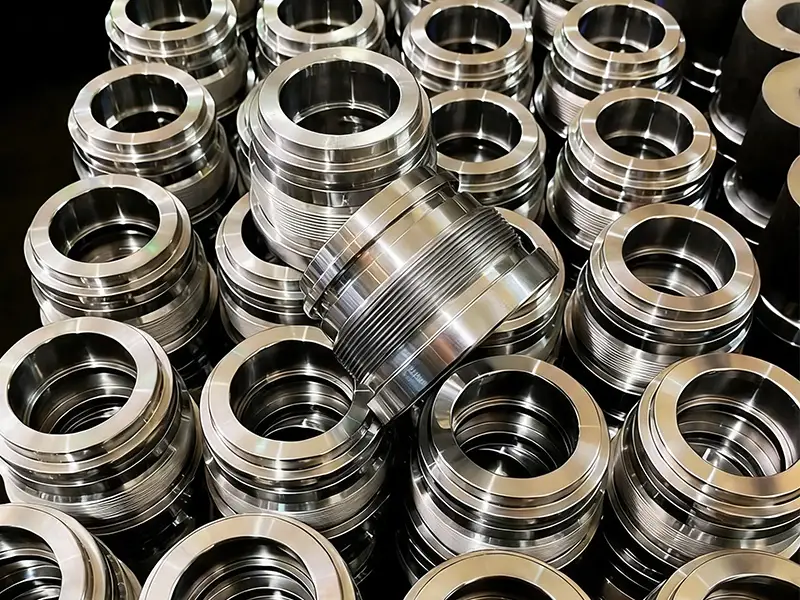

5. Seal Installation Tools
Installing seals correctly requires specialized tools that prevent damage to delicate sealing surfaces.
Seal installation sleeves: Protect new seals from sharp threads and edges during installation.
Seal picks (plastic or brass): Used to carefully remove old seals without scratching grooves.
O-ring tools: Non-marring tools designed specifically for installing O-rings.
Seal press or pusher: For seating large or tight-fitting seals evenly.
Assembly lubricant: Clean hydraulic fluid or specialized assembly gel lubricates seals for smooth installation.
For a double acting hydraulic cylinder, proper seal installation is especially critical, as both sides of the piston must seal effectively against pressure in either direction. Investing in quality installation tools pays dividends in the reliability of your Hydraulic Cylinder Rebuild.
6. Assembly and Torque Tools
Precision assembly ensures that all components are correctly aligned and secured to manufacturer specifications.
Torque wrench (calibrated): Absolutely essential for tightening piston nuts, gland nuts, and mounting bolts to exact specifications.
Cylinder assembly stand: Allows safe, ergonomic assembly of larger cylinders.
Dead blow hammer: Useful for seating components without damaging surfaces.
Thread lubricant or anti-seize: Applied to threads to ensure accurate torque readings and prevent galling.
When working with a small hydraulic cylinder, delicate care is required to avoid over-torquing, while larger units like a tie rod cylinder demand precise torque sequencing. A calibrated torque wrench is the most critical tool in this phase of your Hydraulic Cylinder Rebuild.
7. Testing Tools
A rebuild isn’t complete until the cylinder has been tested under operating conditions.
Hydraulic test stand: Allows testing of the cylinder with controlled pressure before installation.
Pressure gauge: Monitors operating pressure during testing.
Flow meter: Helps verify speed and internal leakage.
Thermometer or thermal imager: Checks for abnormal heat buildup that could indicate issues.
Stethoscope or listening device: Helps identify unusual noises during cycling.
For specialized applications like a rotary cylinder, testing must verify rotational smoothness and sealing integrity. Thorough testing confirms that your Hydraulic Cylinder Rebuild meets or exceeds original performance specifications.
Conclusion
Performing a Hydraulic Cylinder Rebuild requires a carefully curated set of tools, from basic safety equipment to precision measuring instruments and specialized seal installation tools. Each category plays a vital role in ensuring the final result is reliable, safe, and long-lasting.
Whether you’re setting up an in-house repair shop or assembling a portable rebuild kit for field service, investing in quality tools pays for itself through reduced downtime, fewer repeat failures, and extended equipment life. With the right tools and proper procedures, you can achieve results that match—or even exceed—the performance of a new cylinder.
