Integrated 360° Continuous Rotation and Powerful Linear Actuation: High-Performance Solutions for Complex Articulated Machinery.

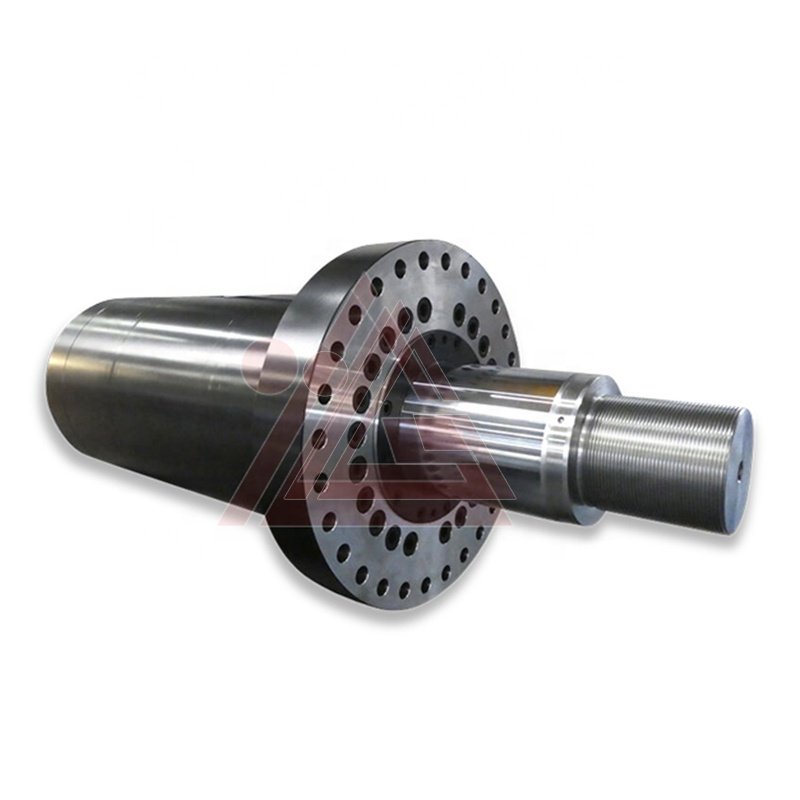

A hydraulic cylinder with rotating joint (also known as a rotary union integrated cylinder) is a specialized engineering component that combines a linear actuator with a central rotary manifold. This integration allows hydraulic fluid to pass from a stationary source to the rotating part of a machine while the cylinder simultaneously performs its extension or retraction stroke. It is the core power unit for equipment requiring unlimited 360-degree rotation, such as hydraulic grapples, rotary drilling rigs, and material handlers.
Our high-precision hydraulic cylinder with rotating joint designs eliminate the risk of hose entanglement and twisting during complex maneuvers. Engineered to handle high-pressure multi-channel fluid transfer, these units ensure that your hydraulic attachments maintain full power and responsiveness at any rotational angle. By consolidating the swivel and the cylinder into one compact assembly, we provide a streamlined solution that simplifies machine architecture and enhances overall operational reliability.
The integrated hydraulic cylinder with rotating joint allows for seamless oil passage through internal channels, completely eliminating external hose wrapping and significantly reducing the risk of hose bursts and downtime in articulated equipment.
Our rotary joints can be configured with multiple independent oil ports (up to 12+ channels), supporting not just the cylinder action but also auxiliary functions like hydraulic clamping, braking, or motor rotation through a single central axis.
We utilize premium PTFE-based rotary seals and specialized hardened surfaces. This ensures that the hydraulic cylinder with rotating joint maintains a perfect seal under high dynamic pressures and extreme rotational speeds, even in heavy-duty demolition or forestry applications.
Yagang hydraulic cylinders ensure precision motion control for automated production lines. They address the need for reliable, low-maintenance actuation in packaging, handling, and assembly systems, minimizing downtime in continuous operations.
For high-speed, repetitive cycles in CNC and stamping equipment, Yagang hydraulic cylinders provide exceptional accuracy and rigidity. They are engineered to combat wear and maintain positioning precision over long service life.
As the core power component, Yagang hydraulic cylinders deliver consistent, high-force output for molding and forging. They are built to withstand extreme pressure spikes and ensure stable platen movement, crucial for product quality.
In high-heat, high-shock mill environments, Yagang’s heavy-duty hydraulic cylinders offer robust performance for rolling and handling. Their design focuses on heat resistance and structural integrity to withstand punishing conditions.
Subjected to extreme abrasion and shock loads in crushers and kilns, Yagang hydraulic cylinders are built for toughness. Their robust design prioritizes seal protection and piston rod strength to maximize uptime in the harshest environments.
Our process is built to ensure clarity, efficiency, and full client satisfaction, solidifying our role as your reliable hydraulic partner.
Our technical team assists you in selecting the precise standard cylinder model that meets your required bore, stroke, mounting style, and pressure ratings, ensuring optimal fit and function for your machinery.
Utilizing ISO-compliant quality systems, we manufacture your standard cylinders. Every unit undergoes rigorous in-house testing, including static pressure hold tests and dynamic cycle tests, exceeding industry requirements.
We manage efficient packaging and logistics, providing fast and secure shipping globally. Our focus on rapid delivery minimizes your downtime and accelerates project timelines.
We offer comprehensive technical documentation and readily available remote support for troubleshooting and maintenance guidance, ensuring sustained peak performance throughout the cylinder’s lifespan.
No. Our hydraulic cylinder with rotating joint is engineered so that the rotary union matches the cylinder’s working pressure. We use high-pressure rotary manifold technology that can handle standard system pressures up to 350 Bar (5000 PSI) without compromising flow rate.
Yes. For marine or subsea applications, we provide specialized versions with stainless steel housings, ceramic-coated rods, and enhanced IP-rated sealing to prevent salt-water ingress into the rotating interface.
Absolutely. We specialize in reverse engineering. If you provide us with the original part number, mounting dimensions, or a technical drawing, we can manufacture a drop-in replacement hydraulic cylinder with rotating joint that meets or exceeds the original OEM specifications.
The rotary joint is designed for long-life operation. We recommend greasing the external bearings every 250 hours and performing a seal inspection annually. We provide full seal kits and maintenance manuals for every unit sold.
Yes, we are a primary manufacturer and offer tiered wholesale pricing for OEM machinery builders and attachment distributors. For bulk orders, we also offer custom branding and specialized packaging options to suit your supply chain needs.
