Experience superior power density with our helical hydraulic rotary actuator series, designed as an Automatic and Compact Hydraulic Rotary Cylinder for demanding motion control tasks.

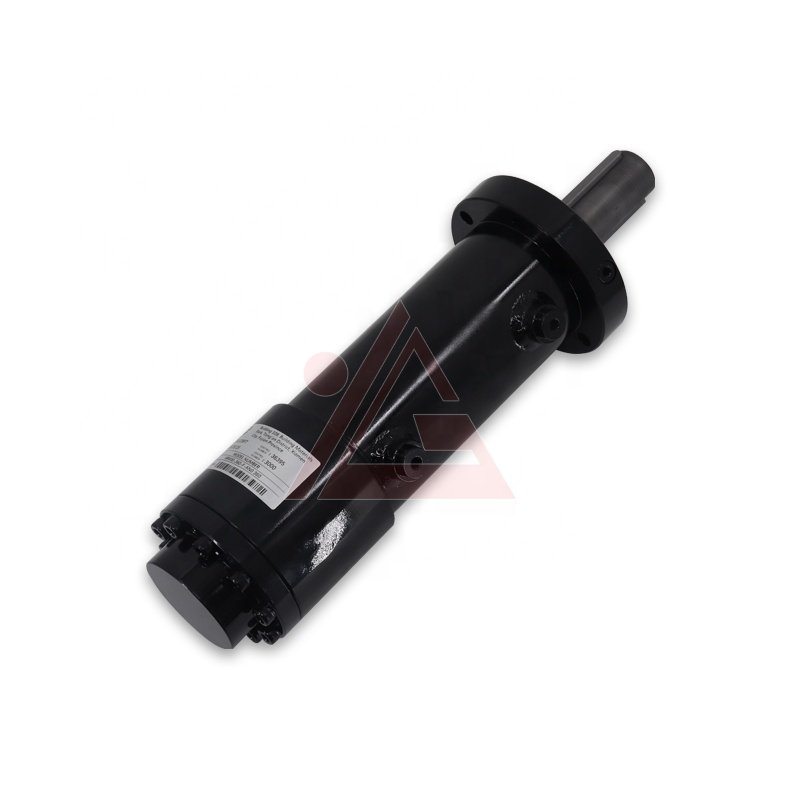

A Helical Rotary Actuator is a highly efficient hydraulic device that converts the linear motion of a piston into a powerful rotational movement through a specialized sliding helical gear set. Unlike traditional rack-and-pinion designs, the helical hydraulic rotary actuator delivers exceptionally high torque within an incredibly small footprint. This makes it the premier choice for applications where space is at a premium but high rotational force is non-negotiable.
Often referred to as an Automatic and Compact Hydraulic Rotary Cylinder, these units utilize multiple helical splines to distribute loads evenly, ensuring smooth movement and zero drift. Whether integrated into construction machinery, mining equipment, or marine steering systems, our actuators provide 90-degree, 180-degree, or even 360-degree rotation with consistent precision and rugged durability.

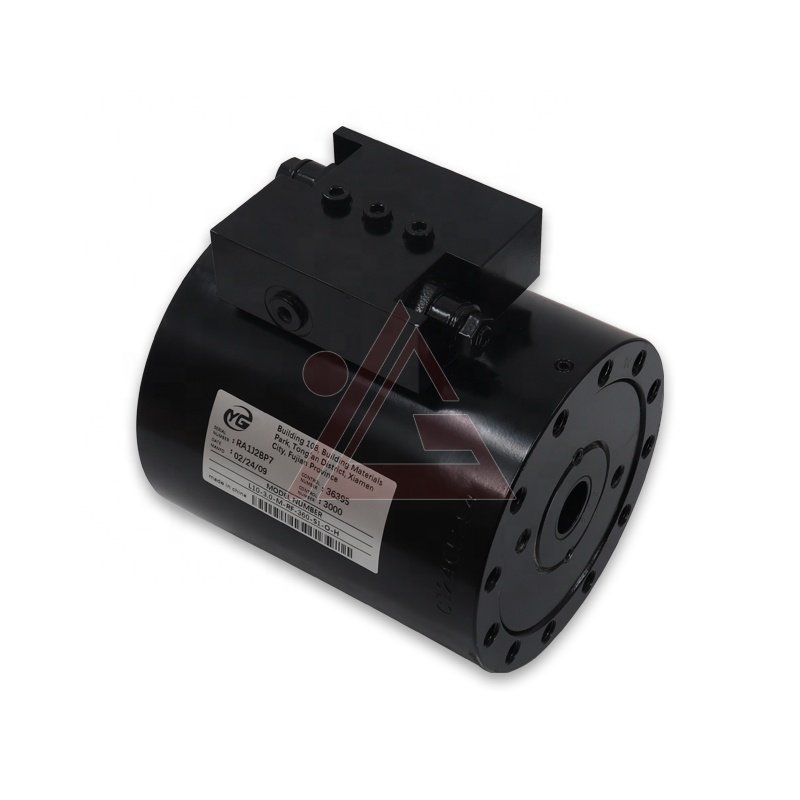

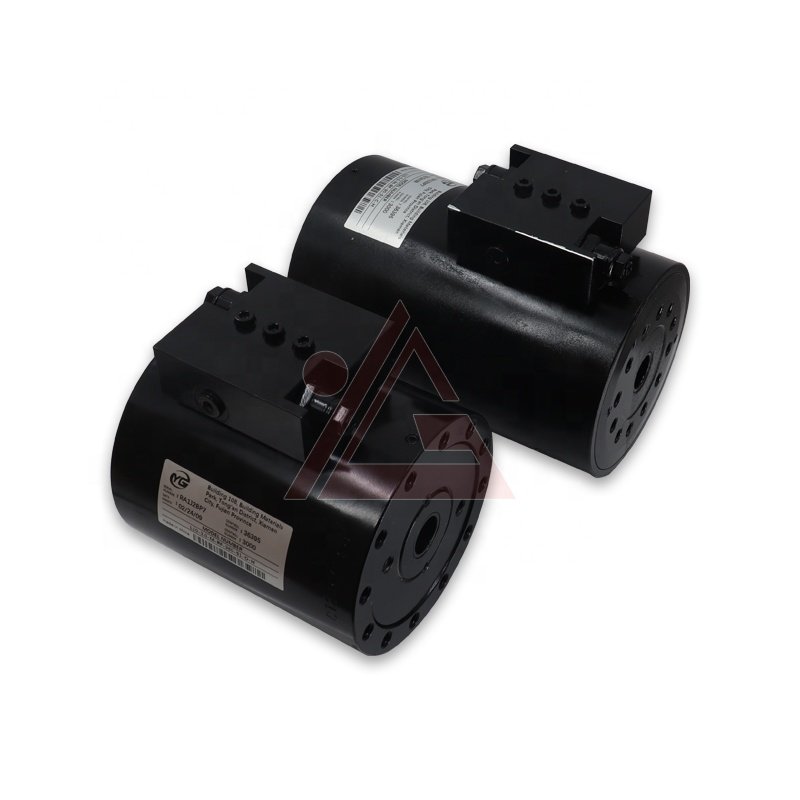

The defining characteristic of our Helical Rotary Actuator is its compact, cylindrical envelope. By utilizing internal helical gears rather than external linkages, this Automatic and Compact Hydraulic Rotary Cylinder fits into tight spaces where other actuators simply cannot. This streamlined profile doesn't just save space; it also reduces the overall weight of your equipment without compromising on output torque.
Safety and precision go hand-in-hand. The unique geometry of a helical hydraulic rotary actuator provides an inherent "self-locking" tendency and high holding torque. Even under heavy loads or vibrations, the actuator maintains its angular position without the "drift" often seen in standard cylinders. This ensures that your machinery remains exactly where you positioned it, enhancing both operational safety and accuracy.
Our Helical Rotary Actuator series is designed for "plug-and-play" integration. With no external moving parts or exposed gears, the internal components are fully shielded from dust, debris, and corrosive elements. This enclosed design makes it a truly Automatic and Compact Hydraulic Rotary Cylinder that requires minimal maintenance, significantly reducing downtime and long-term service costs in harsh industrial or offshore environments.
Yagang hydraulic cylinders ensure precision motion control for automated production lines. They address the need for reliable, low-maintenance actuation in packaging, handling, and assembly systems, minimizing downtime in continuous operations.
For high-speed, repetitive cycles in CNC and stamping equipment, Yagang hydraulic cylinders provide exceptional accuracy and rigidity. They are engineered to combat wear and maintain positioning precision over long service life.
As the core power component, Yagang hydraulic cylinders deliver consistent, high-force output for molding and forging. They are built to withstand extreme pressure spikes and ensure stable platen movement, crucial for product quality.
In high-heat, high-shock mill environments, Yagang’s heavy-duty hydraulic cylinders offer robust performance for rolling and handling. Their design focuses on heat resistance and structural integrity to withstand punishing conditions.
Subjected to extreme abrasion and shock loads in crushers and kilns, Yagang hydraulic cylinders are built for toughness. Their robust design prioritizes seal protection and piston rod strength to maximize uptime in the harshest environments.
Our process is built to ensure clarity, efficiency, and full client satisfaction, solidifying our role as your reliable hydraulic partner.
Our technical team assists you in selecting the precise standard cylinder model that meets your required bore, stroke, mounting style, and pressure ratings, ensuring optimal fit and function for your machinery.
Utilizing ISO-compliant quality systems, we manufacture your standard cylinders. Every unit undergoes rigorous in-house testing, including static pressure hold tests and dynamic cycle tests, exceeding industry requirements.
We manage efficient packaging and logistics, providing fast and secure shipping globally. Our focus on rapid delivery minimizes your downtime and accelerates project timelines.
We offer comprehensive technical documentation and readily available remote support for troubleshooting and maintenance guidance, ensuring sustained peak performance throughout the cylinder’s lifespan.
The primary difference lies in the helical gear mechanism. While other designs might use racks or vanes, a helical hydraulic rotary actuator uses a sliding piston with internal and external splines. This allows it to generate massive torque in a much smaller, cylindrical body, functioning as a more efficient Automatic and Compact Hydraulic Rotary Cylinder.
Yes. Due to the high surface contact of the helical splines, a Helical Rotary Actuator offers excellent holding torque and resistance to back-driving. This makes it ideal for positioning booms, platforms, or steering systems where maintaining a specific angle is critical for safety.
Absolutely. We can customize the torque output, rotation angle (up to 360°), and mounting interfaces of your helical hydraulic rotary actuator. If your project requires a specific Automatic and Compact Hydraulic Rotary Cylinder configuration for OEM machinery, our engineering team can provide a tailored solution.
These actuators are widely used in construction (for excavator attachments), mining (for drill positioning), and the energy sector (for valve actuation). Any application requiring a robust helical hydraulic rotary actuator that survives extreme weather and heavy impact will benefit from our design.
For our standard Helical Rotary Actuator models, we typically maintain stock for quick dispatch within 7-10 days. Custom helical hydraulic rotary actuator orders usually require 4-6 weeks for precision machining, assembly, and rigorous pressure testing to ensure they meet international safety standards.
