Precision Position Control with High-Frequency Response for Closed-Loop Systems.

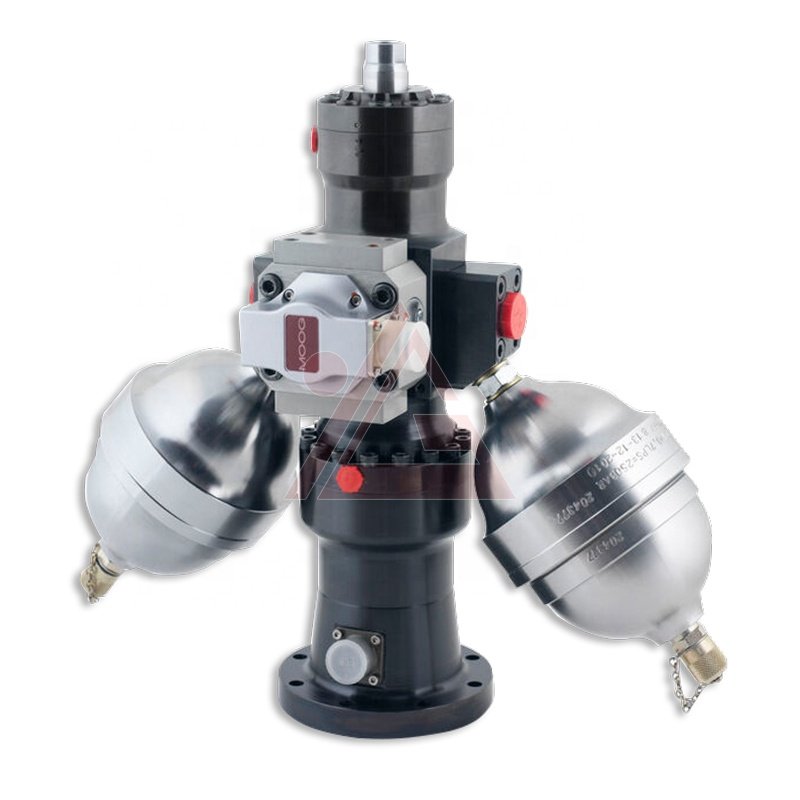

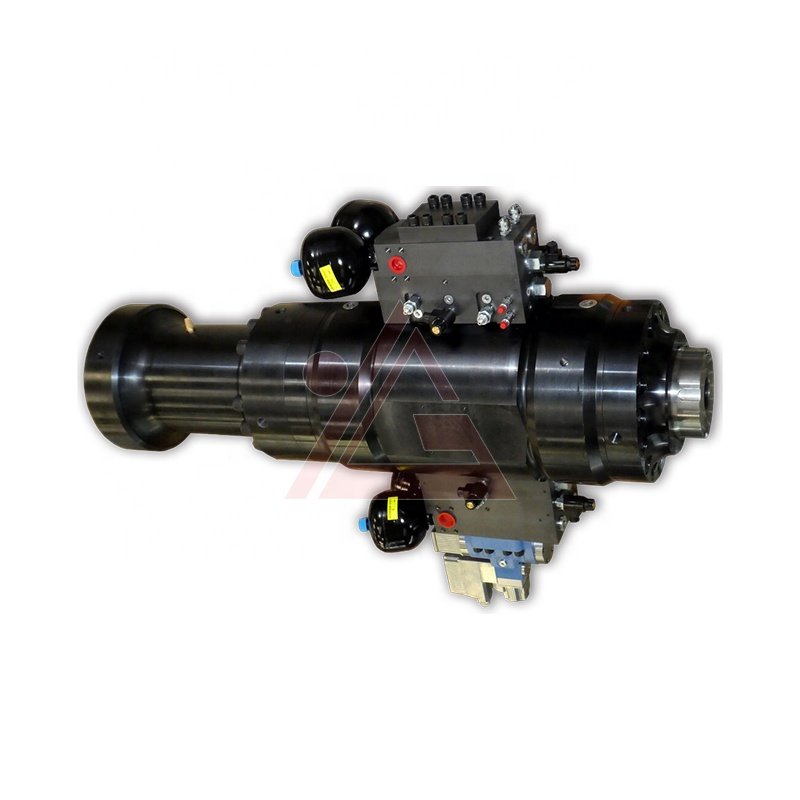

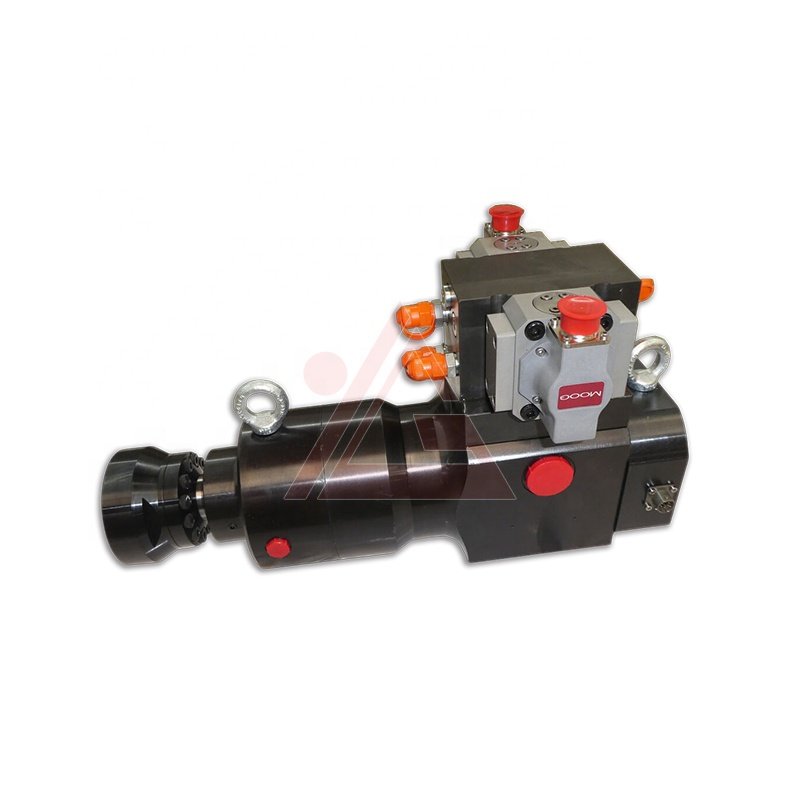

A servo hydraulic cylinder is a high-performance linear actuator designed for closed-loop control systems that require precise position, velocity, or force regulation. Unlike standard cylinders, servo cylinders integrate with servo valves, linear displacement transducers (LVDTs or magnetostrictive sensors), and a controller that continuously adjusts flow and pressure based on real-time feedback. This makes them essential for applications such as material testing machines, flight simulators, injection molding presses, rolling mills, and robotic systems. Yagang servo hydraulic cylinders feature low-friction seals, precision-machined piston rods, optimized porting for fast response, and mounting provisions for external sensors. They deliver smooth, accurate motion with minimal hysteresis and high repeatability—often achieving positioning accuracy within microns.
Servo cylinders need to react instantly to changing control signals. Yagang servo cylinders are designed with optimized internal porting, short flow paths, and low-friction sealing to minimize deadband and phase lag. Balanced piston designs and precision-clearance bearings reduce stiction and breakaway friction—enabling smooth operation at very low speeds and crisp response during rapid reversals. This makes them suitable for high-bandwidth applications like fatigue testing and active suspension systems.
Accurate positioning requires accurate measurement. Yagang servo cylinders are designed to accommodate a range of position sensors: magnetostrictive (like Temposonics) mounted externally along the barrel, LVDTs integrated into the piston rod, or cable-extension transducers. We also offer cylinder bodies with machined grooves or mounting flanges for sensor installation. The result is closed-loop control with repeatability as tight as ±0.01mm depending on system configuration.
Standard hydraulic cylinders have noticeable stiction—they jerk when starting from rest. Servo applications can't tolerate that. Yagang uses specialized seal packages: PTFE-based piston seals with energized back-ups, low-friction rod seals with minimal squeeze, and wear rings that maintain centering without metal-to-metal contact. This reduces breakaway friction and allows smooth operation from micron-per-second creeping to high-speed stroking without instability or chatter.
Yagang hydraulic cylinders ensure precision motion control for automated production lines. They address the need for reliable, low-maintenance actuation in packaging, handling, and assembly systems, minimizing downtime in continuous operations.
For high-speed, repetitive cycles in CNC and stamping equipment, Yagang hydraulic cylinders provide exceptional accuracy and rigidity. They are engineered to combat wear and maintain positioning precision over long service life.
As the core power component, Yagang hydraulic cylinders deliver consistent, high-force output for molding and forging. They are built to withstand extreme pressure spikes and ensure stable platen movement, crucial for product quality.
In high-heat, high-shock mill environments, Yagang’s heavy-duty hydraulic cylinders offer robust performance for rolling and handling. Their design focuses on heat resistance and structural integrity to withstand punishing conditions.
Subjected to extreme abrasion and shock loads in crushers and kilns, Yagang hydraulic cylinders are built for toughness. Their robust design prioritizes seal protection and piston rod strength to maximize uptime in the harshest environments.
Our process is built to ensure clarity, efficiency, and full client satisfaction, solidifying our role as your reliable hydraulic partner.
Our technical team assists you in selecting the precise standard cylinder model that meets your required bore, stroke, mounting style, and pressure ratings, ensuring optimal fit and function for your machinery.
Utilizing ISO-compliant quality systems, we manufacture your standard cylinders. Every unit undergoes rigorous in-house testing, including static pressure hold tests and dynamic cycle tests, exceeding industry requirements.
We manage efficient packaging and logistics, providing fast and secure shipping globally. Our focus on rapid delivery minimizes your downtime and accelerates project timelines.
We offer comprehensive technical documentation and readily available remote support for troubleshooting and maintenance guidance, ensuring sustained peak performance throughout the cylinder’s lifespan.
Yagang servo cylinders are compatible with magnetostrictive sensors (analog or SSI output), LVDTs (AC or DC), incremental or absolute encoders mounted externally, and integrated displacement transducers built into the rod assembly. We can machine custom grooves, mounting brackets, or internal bores based on your sensor brand and model (MTS, Balluff, Temposonics, etc.).
Frequency response depends on system components (servo valve, controller, oil stiffness), but Yagang servo cylinders typically achieve a -90° phase lag at 15–30 Hz with appropriate valves. Positioning accuracy can reach ±0.01mm to ±0.05mm under stable conditions, with hysteresis below 0.05% of stroke. Exact performance depends on feedback device quality and control loop tuning.
Yes. As an experienced OEM servo cylinder manufacturer, we design cylinders based on your exact requirements—including bore size, rod diameter, stroke length, operating pressure (up to 5,000 PSI), sensor mounting provisions, port sizes and orientation, and special rod coatings for corrosion or wear resistance. Our engineering team reviews your force, speed, and bandwidth targets to recommend appropriate seal types, bearing designs, and porting configurations.
Servo cylinders are typically custom-engineered rather than stocked. Our MOQ is generally 1–5 pieces for prototyping or small-scale applications. For larger wholesale or production runs, we offer tiered pricing and flexible quantities. Lead time for custom servo cylinders is typically 25–40 days depending on complexity, sensor integration requirements, and material availability. Rush orders may be accommodated with expedited machining.
Absolutely. Beyond the cylinder itself, Yagang can supply pre-mounted position sensors (wired and calibrated), servo valve manifolds with integrated porting, and mating connectors for plug-and-play integration. We also provide assembly drawings, test reports, and setup recommendations for your control loop tuning. This reduces integration time for B2B customers building test stands or automated machinery.
