Delivering Superior Power Density and Fail-Safe Performance in the Most Demanding Applications.

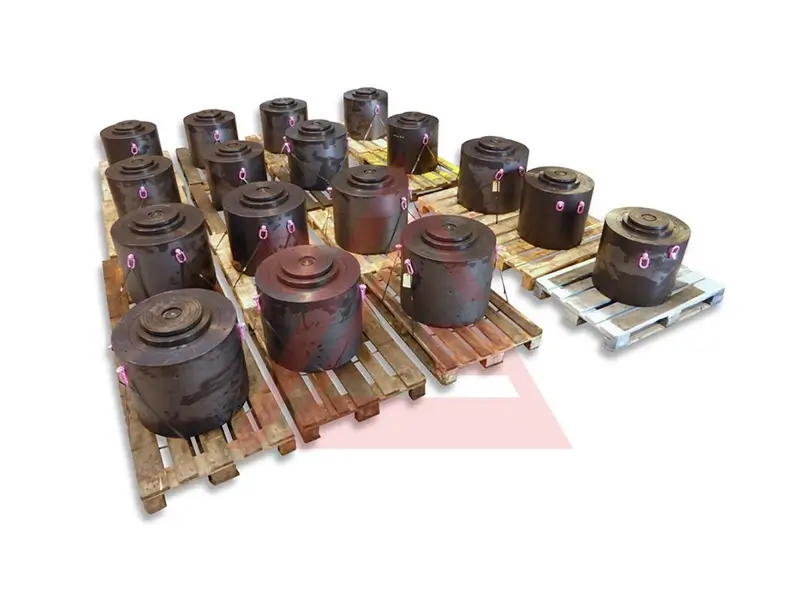

A High-Pressure Hydraulic Cylinder is a heavy-duty actuator specifically engineered to operate reliably at system pressures significantly exceeding standard industrial levels, typically ranging from 3,000 PSI to 10,000 PSI and beyond. This cylinder category is not merely a reinforced standard model; it represents a specialized tier of design focused on safely and efficiently containing immense force. Every component—from the barrel and piston rod to the seals and mounting—is calculated, selected, and manufactured to manage extraordinary stress without failure. High-pressure hydraulic cylinders are critical in industries where maximizing force within a limited space is paramount, such as in hydraulic presses, material testing equipment, offshore oil & gas machinery, heavy construction, and specialized industrial clamping systems. Their design prioritizes structural integrity and leak-free operation under continuous extreme load.
Safety is the foundational principle of our High Pressure Hydraulic Cylinder design. We employ advanced engineering calculations, including Finite Element Analysis (FEA), to ensure every component can withstand specified pressures with a significant safety factor. Cylinders are constructed from specially selected, ultra-high-strength steel alloys and feature robust design elements like thicker walls, reinforced heads, and heavy-duty tie rods or welded construction to guarantee absolute containment and prevent catastrophic failure under peak loads.
The extraordinary demands of high-pressure operation require premium materials and exacting tolerances. Our High Pressure Hydraulic Cylinders utilize precision-honed tubing for an ideal bearing surface and hardened, hard-chrome plated piston rods to resist bending and scoring. Critical components are often machined from solid steel forgings for superior grain structure and strength. This commitment to material excellence ensures dimensional stability and longevity, cycle after punishing cycle.
At extreme pressures, standard sealing systems will quickly extrude and fail. Our High Pressure Hydraulic Cylinder designs incorporate advanced, pressure-energized seal stacks specifically rated for high-PSI service. These include anti-extrusion rings, high-grade polyurethane or specialized thermoplastic seals, and carefully engineered gland designs that actively reinforce the seal as pressure increases, ensuring zero leakage and maintaining consistent performance throughout the service life.
Yagang hydraulic cylinders ensure precision motion control for automated production lines. They address the need for reliable, low-maintenance actuation in packaging, handling, and assembly systems, minimizing downtime in continuous operations.
For high-speed, repetitive cycles in CNC and stamping equipment, Yagang hydraulic cylinders provide exceptional accuracy and rigidity. They are engineered to combat wear and maintain positioning precision over long service life.
As the core power component, Yagang hydraulic cylinders deliver consistent, high-force output for molding and forging. They are built to withstand extreme pressure spikes and ensure stable platen movement, crucial for product quality.
In high-heat, high-shock mill environments, Yagang’s heavy-duty hydraulic cylinders offer robust performance for rolling and handling. Their design focuses on heat resistance and structural integrity to withstand punishing conditions.
Subjected to extreme abrasion and shock loads in crushers and kilns, Yagang hydraulic cylinders are built for toughness. Their robust design prioritizes seal protection and piston rod strength to maximize uptime in the harshest environments.
Our process is built to ensure clarity, efficiency, and full client satisfaction, solidifying our role as your reliable hydraulic partner.
Our technical team assists you in selecting the precise standard cylinder model that meets your required bore, stroke, mounting style, and pressure ratings, ensuring optimal fit and function for your machinery.
Utilizing ISO-compliant quality systems, we manufacture your standard cylinders. Every unit undergoes rigorous in-house testing, including static pressure hold tests and dynamic cycle tests, exceeding industry requirements.
We manage efficient packaging and logistics, providing fast and secure shipping globally. Our focus on rapid delivery minimizes your downtime and accelerates project timelines.
We offer comprehensive technical documentation and readily available remote support for troubleshooting and maintenance guidance, ensuring sustained peak performance throughout the cylinder’s lifespan.
We design and manufacture High Pressure Hydraulic Cylinders for a wide spectrum of demanding applications. Our standard high-pressure series typically ranges from 3,000 PSI to 5,000 PSI. For ultra-high-pressure needs, we engineer custom solutions capable of operating reliably at 10,000 PSI and above. The specific design is tailored to your required pressure rating and duty cycle.

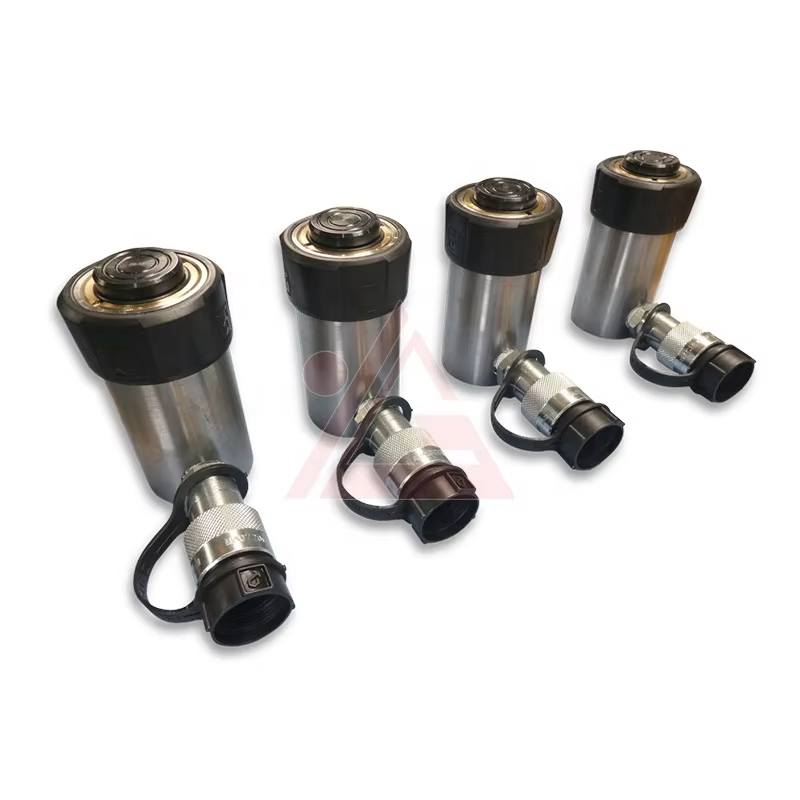

High Pressure Hydraulic Cylinders are essential wherever maximum force output is needed from a compact package. Key applications include: Hydraulic Presses (metal forming, molding), Material and Structural Test Frames, Heavy-Duty Clamping and Lifting Systems, Offshore Drilling Equipment (BOPs), Log Splitters, and specialized industrial machinery where space constraints preclude using larger, lower-pressure cylinders.

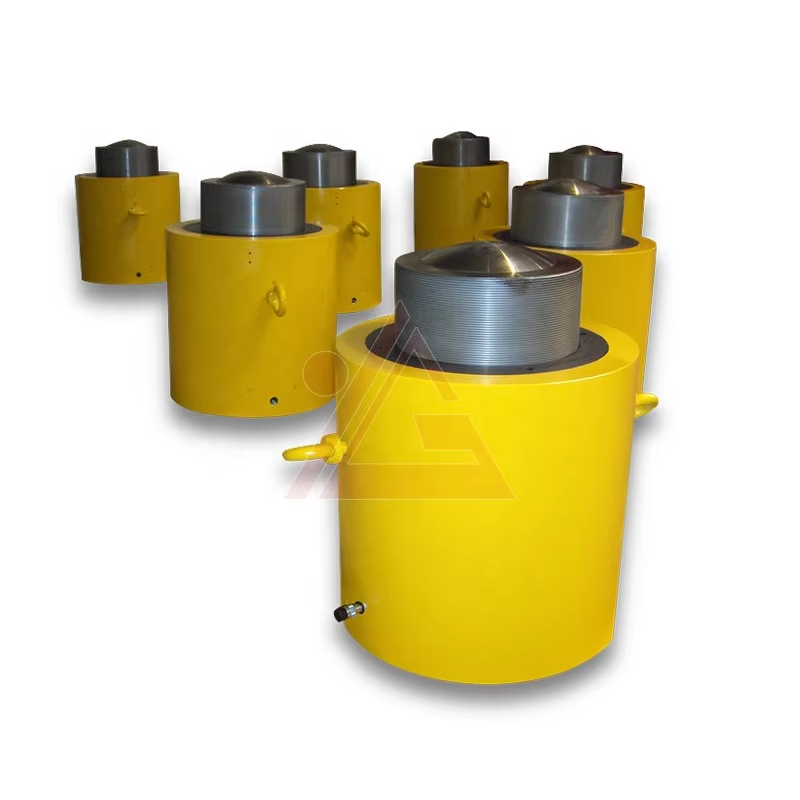

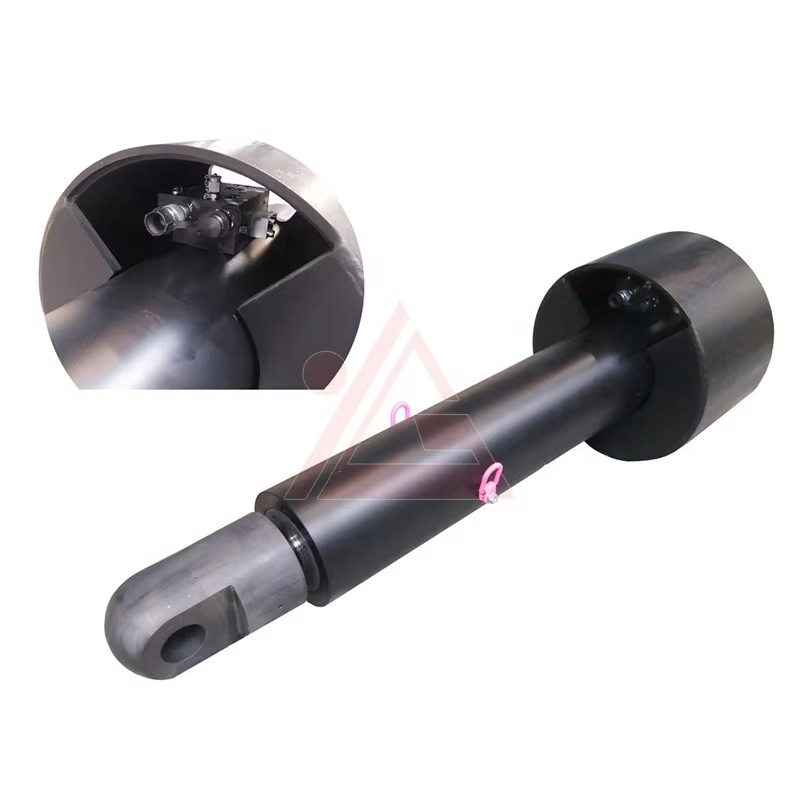

Absolutely. The design of a reliable High Pressure Hydraulic Cylinder is inherently application-specific. We specialize in custom engineering based on your exact operating pressure, bore, stroke, mounting style, and port specifications. Our engineering team performs the necessary stress analysis and will develop detailed drawings for your approval, ensuring the final product is perfectly suited to handle your unique force and duty cycle demands.
We construct our High Pressure Hydraulic Cylinders from certified, high-yield-strength steel alloys, precision-honed tubing, and specially hardened piston rods. For sealing, we employ advanced, multi-component seal stacks designed for high-pressure applications, which may include materials like cast polyurethane, filled PTFE, or other high-performance thermoplastics, supported by anti-extrusion rings. Our engineers select the optimal combination based on your pressure, fluid, and temperature.
Safety and quality are non-negotiable. Every High Pressure Hydraulic Cylinder undergoes a stringent testing protocol that far exceeds standard requirements. This includes prolonged proof pressure testing (often at 1.5x operating pressure), cycle testing, and sensitive leak detection. Our manufacturing process is controlled under a rigorous quality management system, with full material traceability and documentation to provide the utmost confidence in the cylinder's integrity.
