What is Automatic and Compact Hydraulic Rotary cylinder

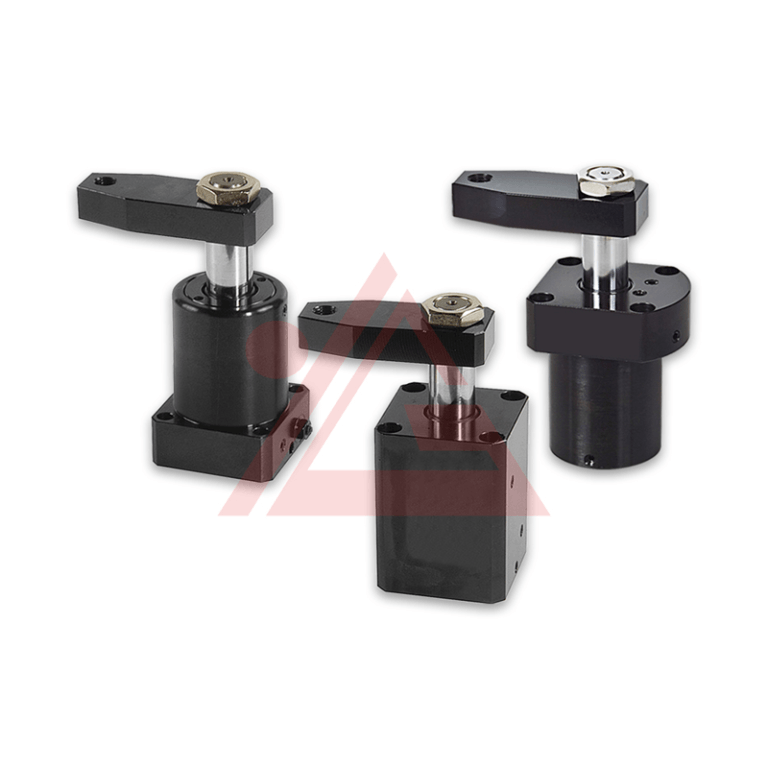

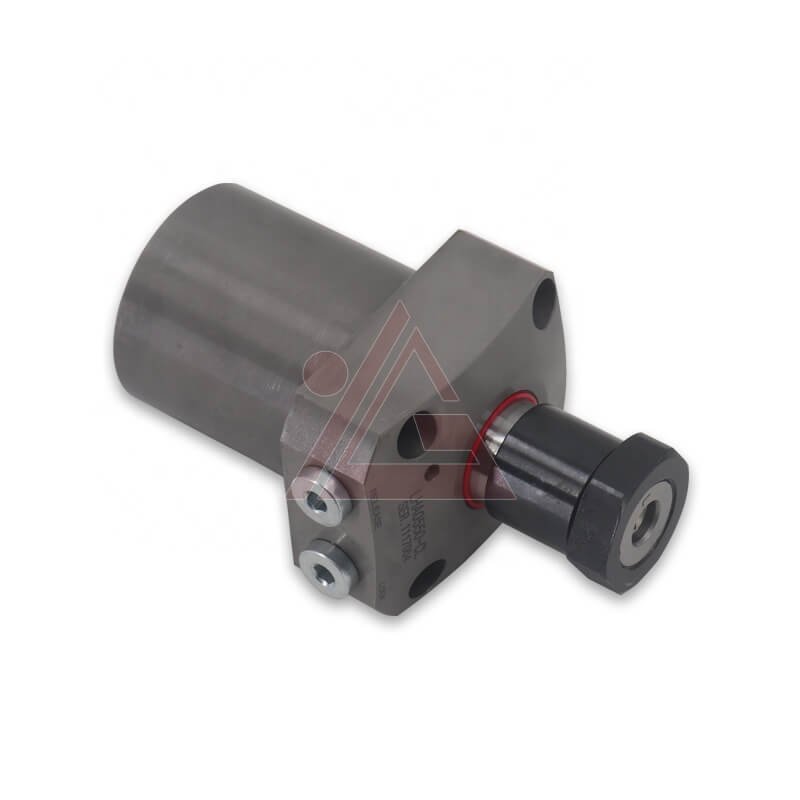

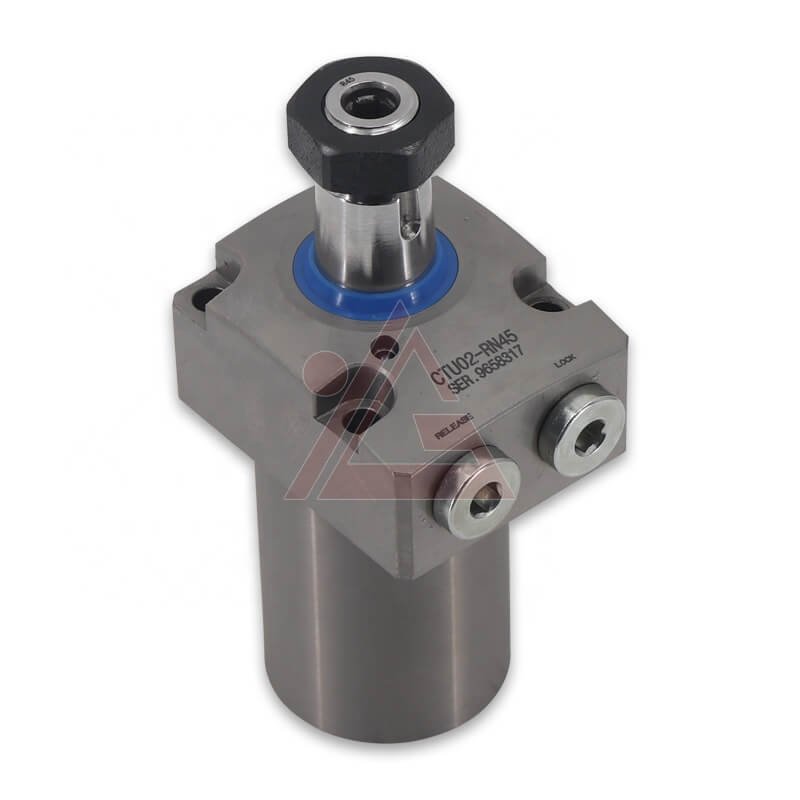

Hydraulic swing clamp is a compact actuator for automated workholding that uses a two-stage motion—rotating then descending—to clamp workpieces, ensuring unobstructed loading and unloading in CNC machines and production lines.
Parameter Table
| Model | Custom |
|---|---|
| Type | / |
| Bore | Custom |
| Rod | Custom |
| Stroke | Custom |
| Working Pressure | Custom |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Automatic and Compact Hydraulic Rotary cylinder
Automated Workpiece Loading/Unloading
Eliminates manual screw clamping by automatically swinging the clamp arm clear of the workpiece, enabling rapid and accurate part changes to significantly boost machining efficiency.
Unrestricted Workspace Access
The clamp arm rotates (typically 90°) during extension and retraction, keeping the clamping area completely free of obstructions for easy and fast workpiece loading/unloading.
Integrated Overload Protection
Features a preloaded coupling that disengages if the swing motion is blocked or speed is too high, safeguarding the internal mechanism from damage and ensuring long-term durability.
Applications
Widely used in mass-produced parts, MC fixtures, industrial Machinery, assembly lines, welding jigs, and automated or semi-automated production lines.
FAQ
Hard chrome plating (30-50μm, HV≥800), with optional laser cladding for extreme wear resistance
1pc
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
The cylinders are manufactured by advanced equipment and made under strictly quality control processing.The steel is tempered and all raw materials are good quality from world famous companies.Competitive price!
20days (standard), 20-35 days for custom orders.
