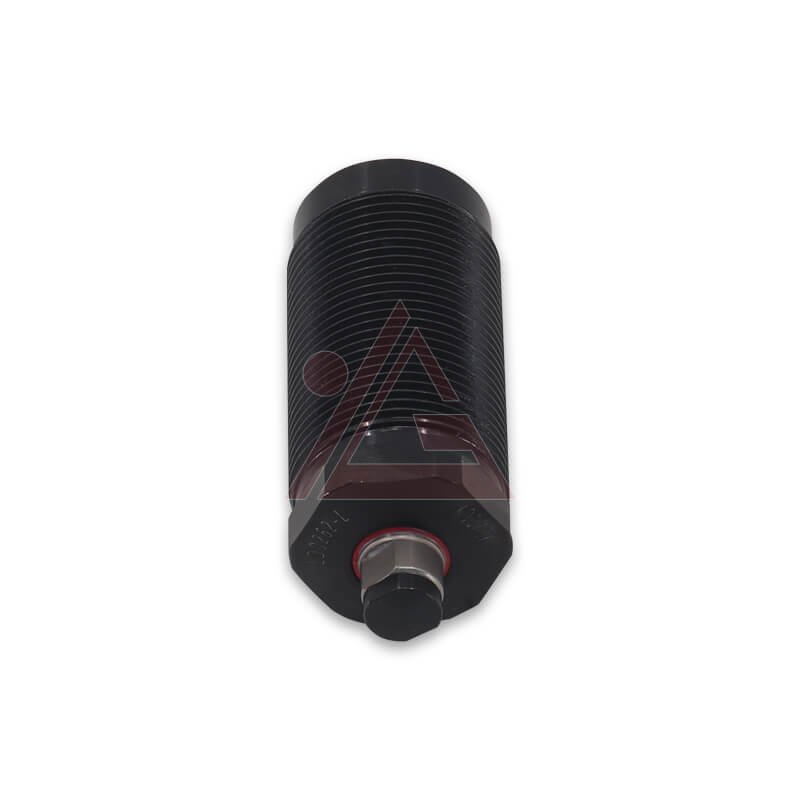

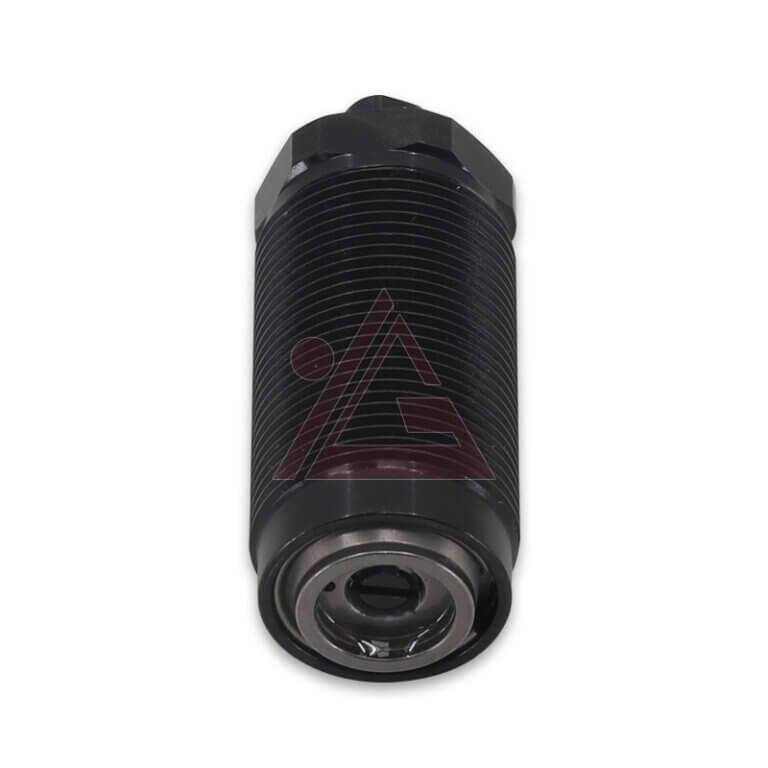

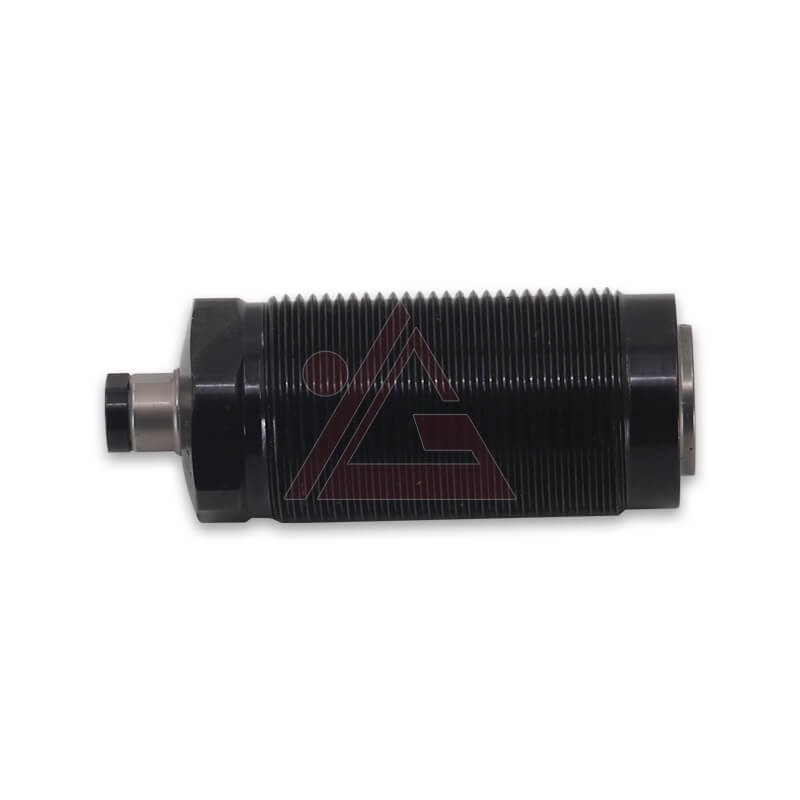

What is Automatic Contour Adjustment Support Hydraulic Cylinder
A support hydraulic cylinder (often called a work support) is a specialized linear actuator designed to provide rigid, temporary support to a workpiece or machine component. Unlike standard lifting cylinders, these devices are designed to adjust to a workpiece’s contour and then lock rigidly to provide a solid support point.
Parameter Table
| Model | LD0262-L |
|---|---|
| Type | Support |
| Bore | M26×1.5 |
| Rod | Internal thread type |
| Stroke | 1-30mm |
| Working Pressure | 2.5-7Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Automatic Contour Adjustment Support Hydraulic Cylinder
Enhanced Rigidity and Vibration Dampening
By providing an additional rigid support point, they minimize part deflection and machining vibrations, ensuring high-quality, repeatable results even with thin or complex parts.
Automatic Contour Adjustment
Many models (such as spring-advance or hydraulic-advance types) automatically move into contact with the workpiece regardless of its surface irregularities, then lock into place without deforming the part.
Extreme Durability
Constructed from robust materials like hardened steel, these cylinders are engineered for harsh environments (e.g., mining, marine) and can withstand heavy loads and abrasive contaminants for a long service life.
Applications
Widely used in industrial machinery, offshore and marine, agriculture, mining and cement, and material handling.
FAQ
Yes, we can produce by your samples or technical drawings.
Of course, We will keep track of the order throughout the process and promptly inform you of the production progress.
We are a direct manufacturer with our own factory located in Xiamen,China. We oversee the entire production process to ensure quality control and competitive pricing.
Absolutely! We welcome client visits and audits. Contact us to arrange a tour.
Yes, 12-month warranty, lifetime tech support.
