What is Automatic Positioning Support Hydraulic Cylinder
A Support Hydraulic Cylinder (often called a Hydraulic Work Support) is a specialized actuator designed to provide a self-adjusting, solid rest for workpieces during machining or assembly. Unlike standard cylinders used for lifting or pushing, these cylinders are engineered to prevent vibration and deflection by locking a plunger against a part.
Parameter Table
| Model | YGDP0361-AM |
|---|---|
| Type | Support |
| Bore | M36×1.5 |
| Rod | Internal thread type |
| Stroke | 1-30mm |
| Working Pressure | 0.8-25Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |

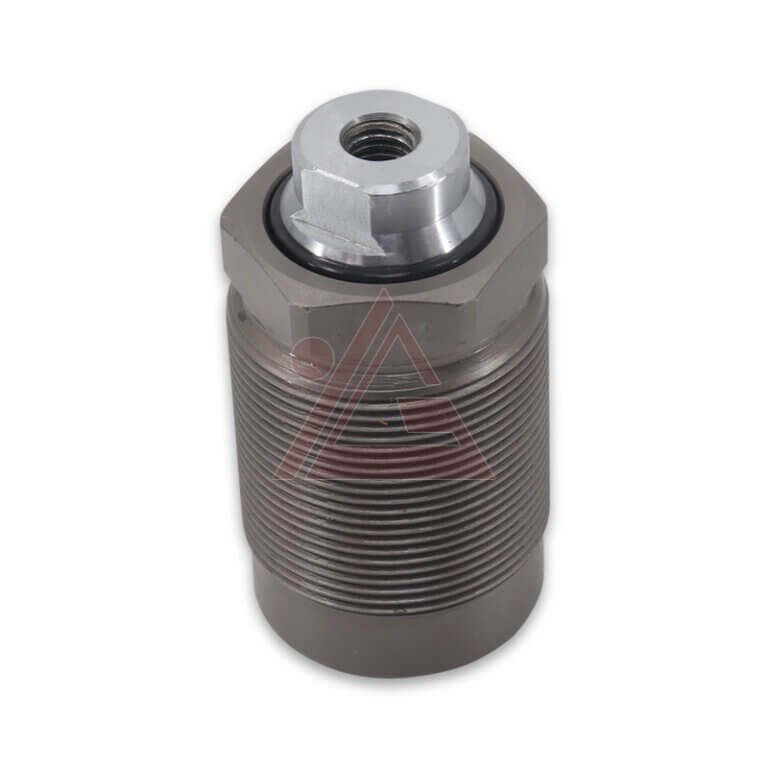

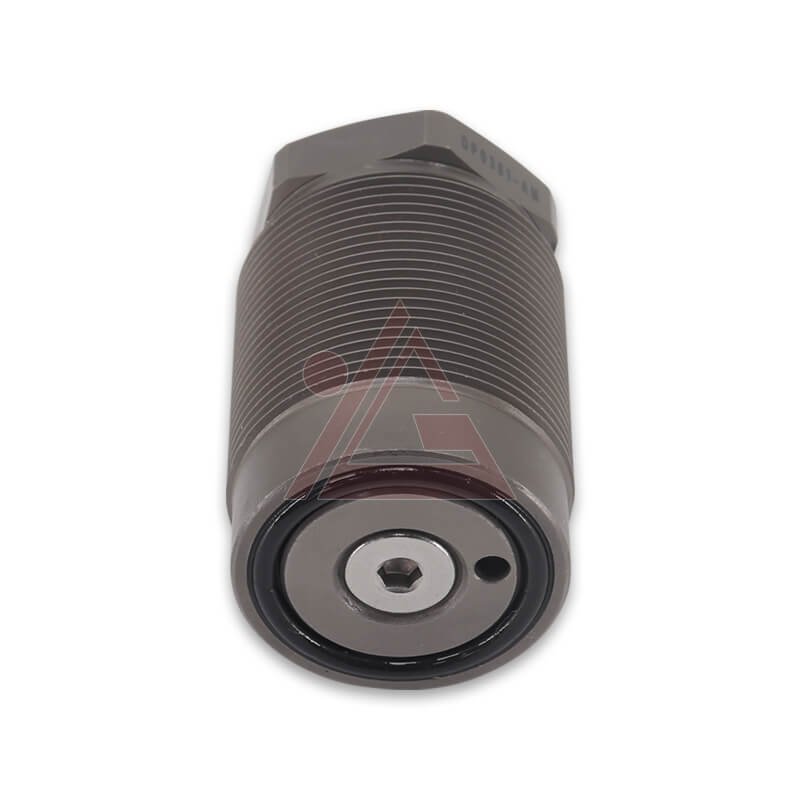

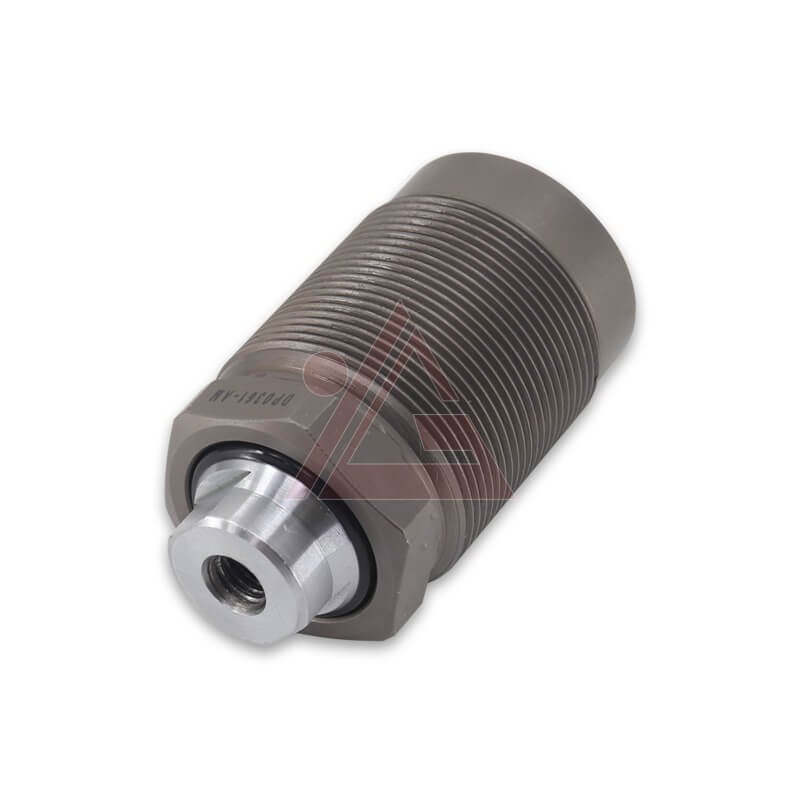

Details of Automatic Positioning Support Hydraulic Cylinder
Features of Automatic Positioning Support Hydraulic Cylinder
Controlled Deceleration
Many support cylinders feature "cushioning" technology that provides controlled deceleration, reducing mechanical shock and preventing damage to the system during rapid engagement.
Force Capacity
In a locked state, a support cylinder's capacity is typically designed to be at least twice the clamping force applied to the part, ensuring it can withstand heavy machining loads without sagging.
Durability
They are built to withstand harsh environments involving dust, heat, and high-pressure fluids. Specific designs like welded cylinders offer superior resistance to shock and external damage.
Applications
Widely used in hip steering mechanisms, winches, hatch closures, stabilizing systems for offshore platforms,aircraft landing gear, flight control flaps, ground support equipment like bridge lifts and outrigger stabilizers
FAQ
Our products feature high performance, higher cost performance and durability.
Of course, We will keep track of the order throughout the process and promptly inform you of the production progress.
1pc.
We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Email us. We'll provide pricing, and lead time based on your quantity and customization level.
