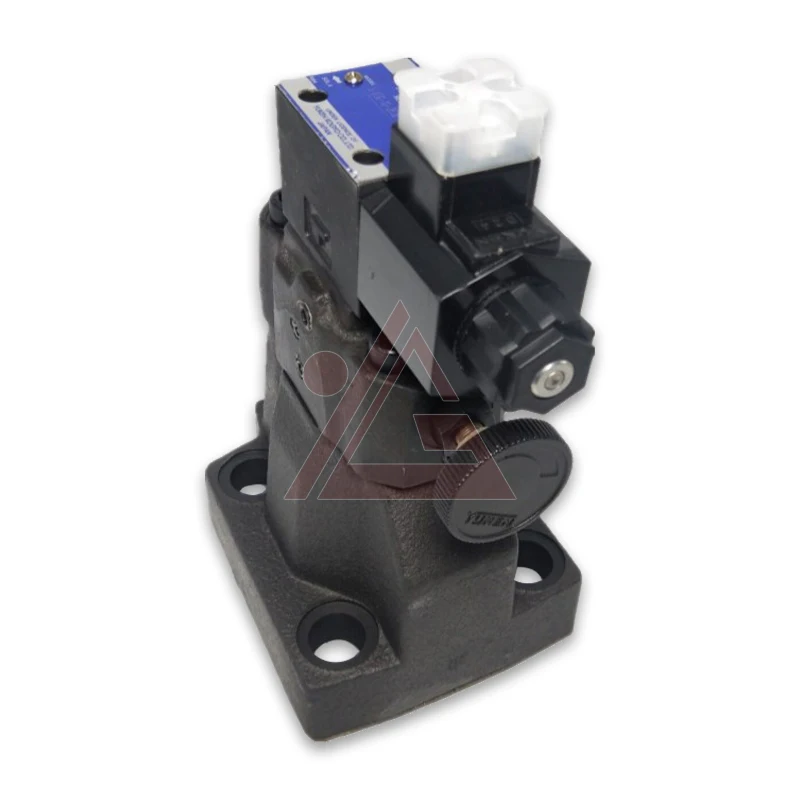

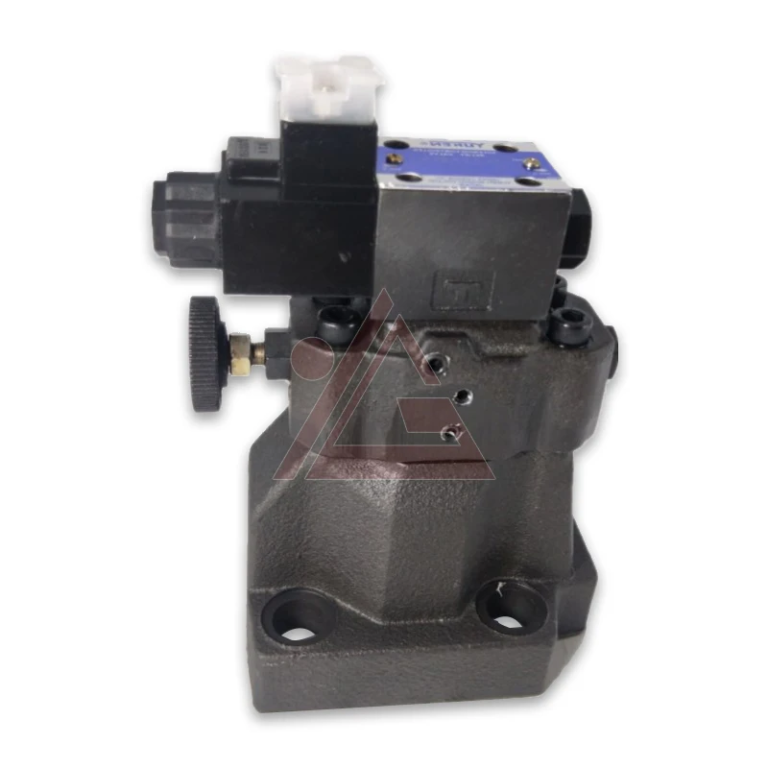

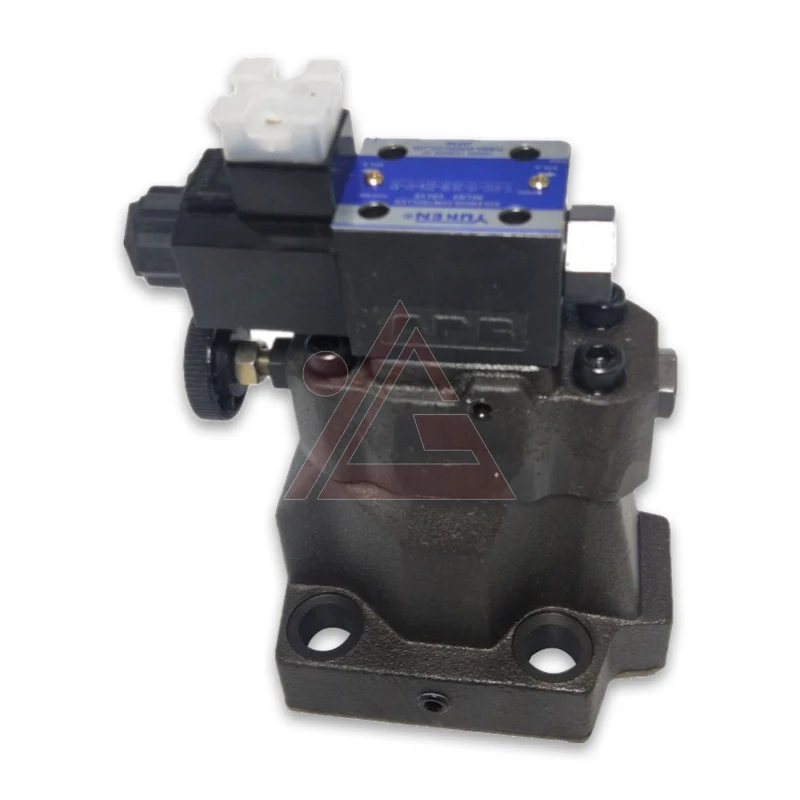

What is B3G Series Versatility YUKEN B3G-03-V-10 High Pressure Type Relief Valves for Injection
The Yuken B3G-03 is a high-pressure, pilot-operated relief valve designed to protect hydraulic systems from overpressure while maintaining stable system pressure, suitable for industrial machines.
Parameter Table
| Model | B3G-03 B3G-06 |
|---|---|
| Type | Pressure control |
| Maximum Pressure | 35Mpa |
| Maximum Flow Valve: | 500 L/min |
| Material | Stainless steel |
| Weight | 5KG |
| Brand | YUKEN |
| Color | Customized |
| Operating Temperature | 0~50°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of B3G Series Versatility YUKEN B3G-03-V-10 High Pressure Type Relief Valves for Injection
High Pressure Handling
The primary advantage of the B3G series over standard Yuken BG models is its increased pressure range. It is specifically designed to handle and adjust pressures up to 35 MPa (5,080 psi), protecting hydraulic pumps and control valves from overpressure in high-demand environments.
Constant System Pressure
Maintains a steady pressure level despite fluctuations in flow.
System Protection
Acts as a fail-safe mechanical safety device that triggers if other monitoring systems fail, preventing catastrophic damage to sensitive equipment or pipelines.
Applications
Widely used in construction equipment, industrial machinery, agricultural vehicles, material handling, and automation systems.
FAQ
We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Hydraulic cylinder, hydraulic valve, hydraulic pumps.
Yes, we can produce by your samples or technical drawings.
Monthly output 400PCS, our products & service cover 20+ countries and regions.
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
