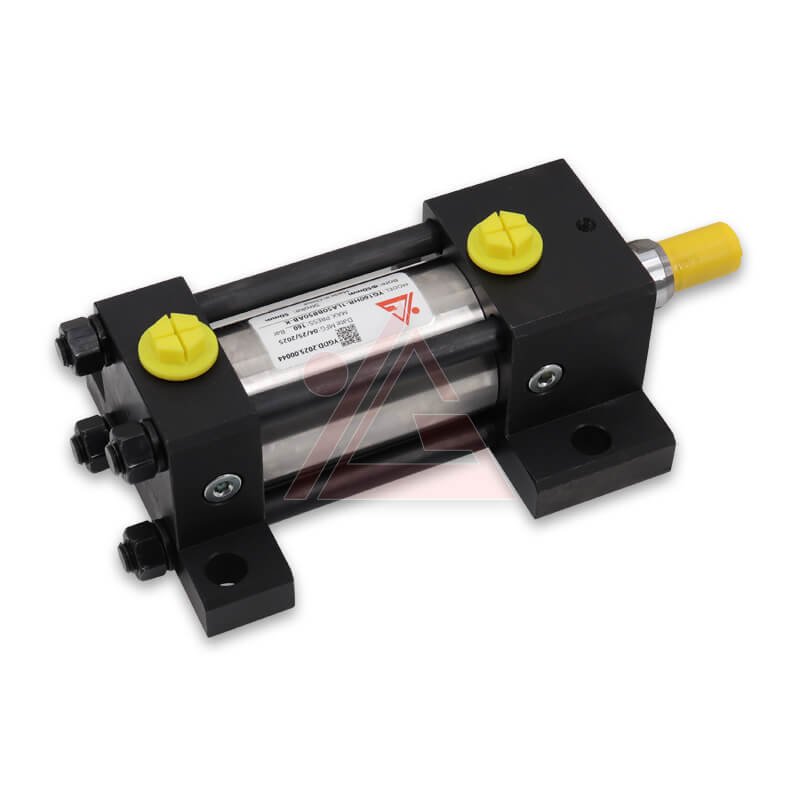

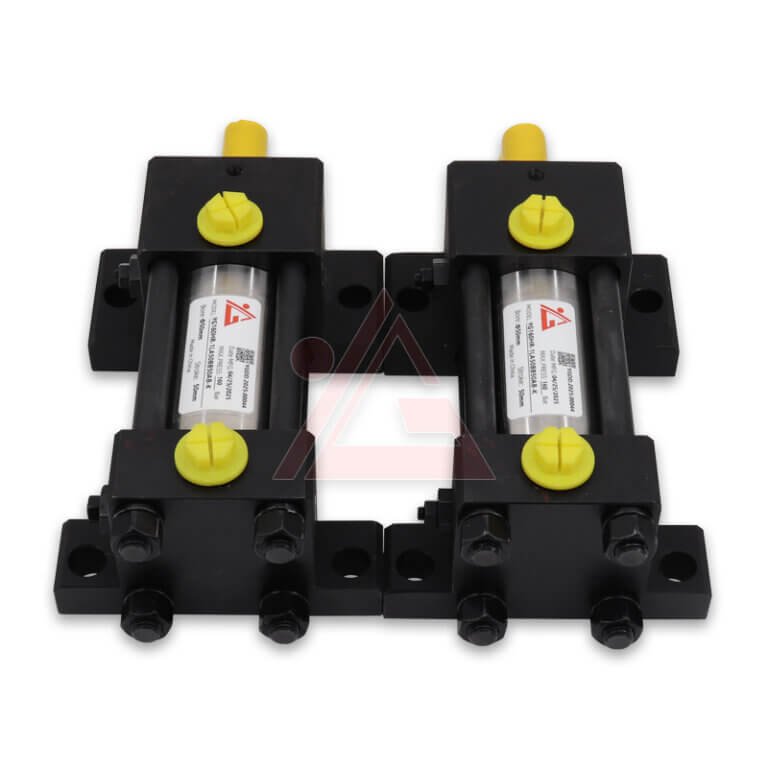

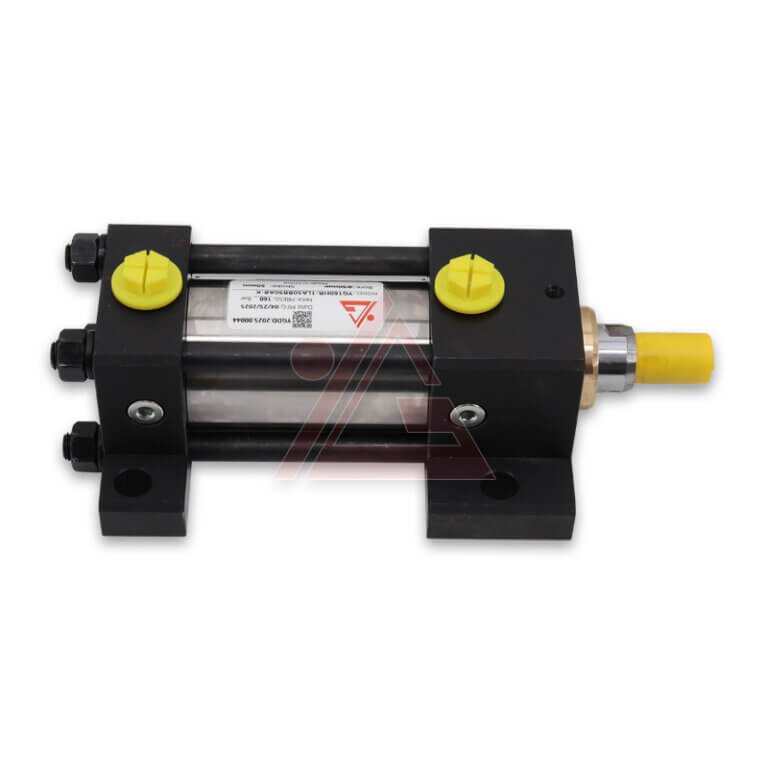

What is Cost-Effective and Long-life Magnetic Tie-rod Hydraulic Cylinder
Magnetic tie-rod hydraulic cylinders are a standard industrial component used for precise position monitoring in automated systems. These cylinders feature a magnet integrated into the piston and work with external sensors to detect its position throughout the stroke.
Video
Parameter Table
| Model | YG160HR-1LA50BB50AB-K |
|---|---|
| Type | Double acting |
| Bore | 50mm |
| Rod | 28mm |
| Stroke | 50mm |
| Working Pressure | 16Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Features of Cost-Effective and Long-life Magnetic Tie-rod Hydraulic Cylinder
Real-Time Position Monitoring
The integrated magnetic sensor provides continuous feedback on the piston's exact location, which is crucial for systems requiring accurate movement and positioning.
Installation/Retrofitting
Depending on the sensor type, the non-intrusive design can eliminate the need for complex external brackets or machining costs during installation. External-mount options also allow for easy retrofitting of older cylinders.
Predictive Maintenance
Monitoring motion patterns and delays via sensor data can help identify potential issues like seal wear or fluid leaks before a major breakdown occurs, enabling proactive maintenance.
Applications
Widely used in industrial automation，injection molding machines，material handling equipment，CNC machine tools，packaging equipment，robotics.
FAQ
Of course, We will keep track of the order throughout the process and promptly inform you of the production progress.
The material of the cylinder barrel commonly used by our company is 40CrMn honed tube ,while the magnetic cylinder uses 304 material for the cylinder barrel.
Yes. We offer: Factory photos/videos (production lines, facilities, etc.).Business licenses and certifications (e.g., ISO, CE,Yagang brand registration). Audit reports (third-party or client-conducted).
Yes, We offer,you need to provide the relevant authorization for the brand.
1pc.
