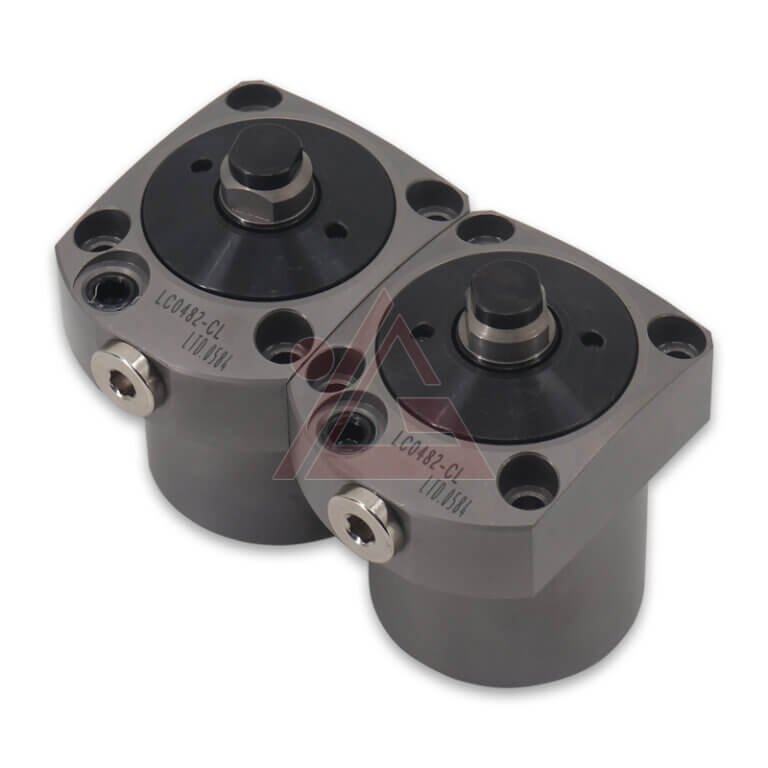

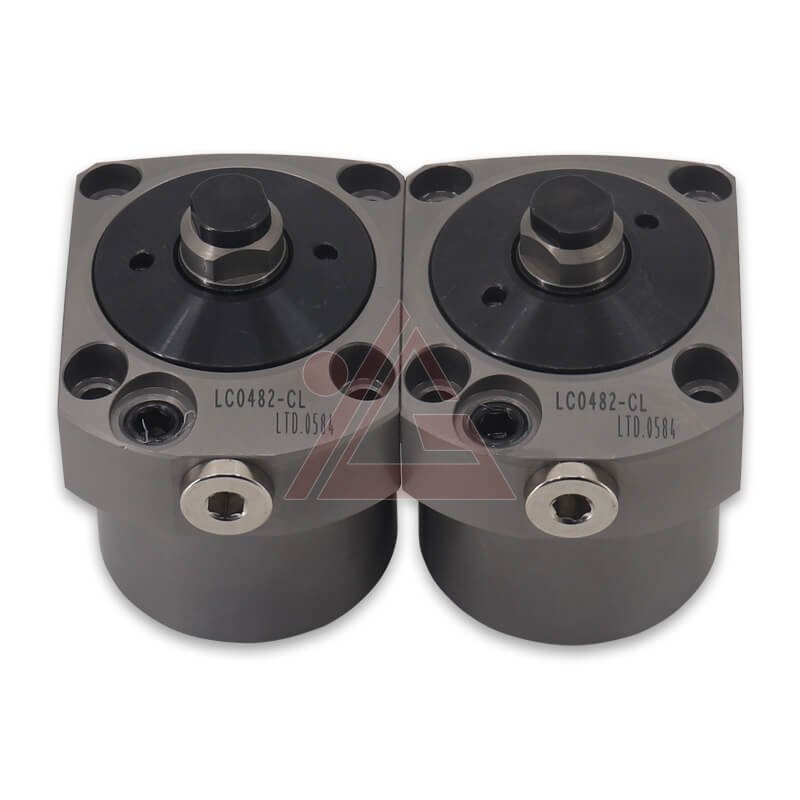

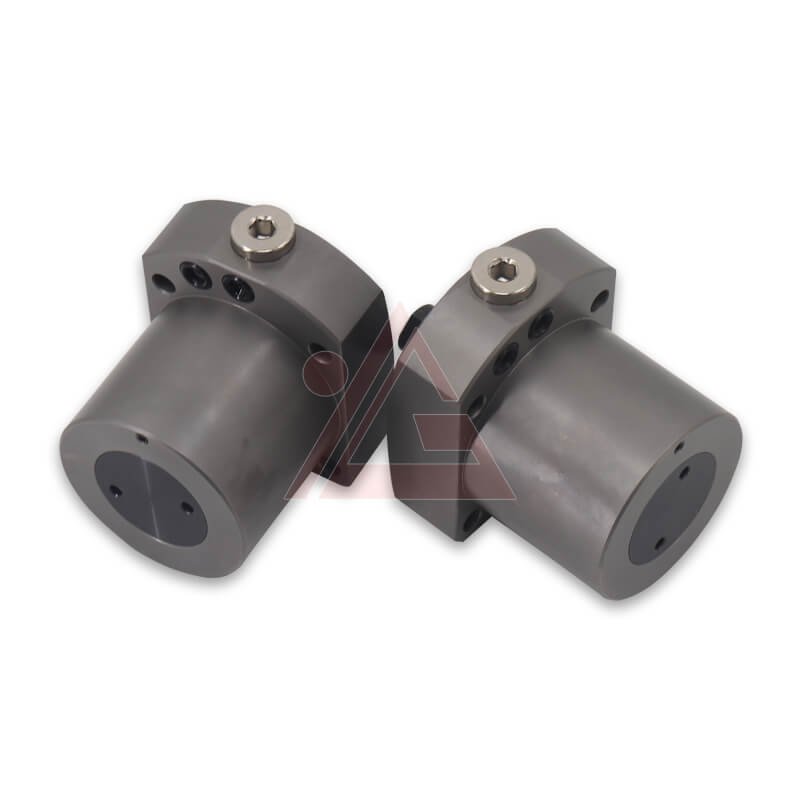

What is Cost-Effectiveness Single-acting Support Hydraulic Cylinder
A single-acting support hydraulic cylinder is a type of linear actuator that uses pressurized hydraulic fluid to provide force and movement in only one direction. It is primarily designed for high-force applications like lifting, clamping, and stabilizing workpieces.
Parameter Table
| Model | LC0482-CL |
|---|---|
| Type | Single-acting |
| Bore | 48mm |
| Rod | Internal thread type |
| Stroke | 1-30mm |
| Working Pressure | 2.5-7Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Cost-Effectiveness Single-acting Support Hydraulic Cylinder
Cost-Effectiveness
These cylinders are generally much cheaper to manufacture, purchase, and install than double-acting models. They require only one hydraulic port, which significantly reduces the cost of associated components like valves, hoses, and piping.
Simplicity and Reliability
With fewer internal components and seals, there are fewer points of failure. This straightforward design makes them easier to maintain and repair without specialized knowledge.
Compact Design
The lack of a second port and simplified housing allows for a smaller footprint, making them ideal for mobile equipment or tight industrial spaces where room is limited.
Applications
Widely used in Lifting (dump trucks,car lifts, jacks), Pushing (presses, compactors), and Holding/Clamping (machinery clamps).
FAQ
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
Yes, we can produce by your samples or technical drawings.
We are a direct manufacturer with our own factory located in Xiamen,China. We oversee the entire production process to ensure quality control and competitive pricing.
Hard chrome plating (30-50μm, HV≥800), with optional laser cladding for extreme wear resistance.
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
