What is CPT CPDT Series Durability and Reliability YUKEN CPT-03-E-04-50 Pilot Controlled Check Valves in Hydraulic Systems

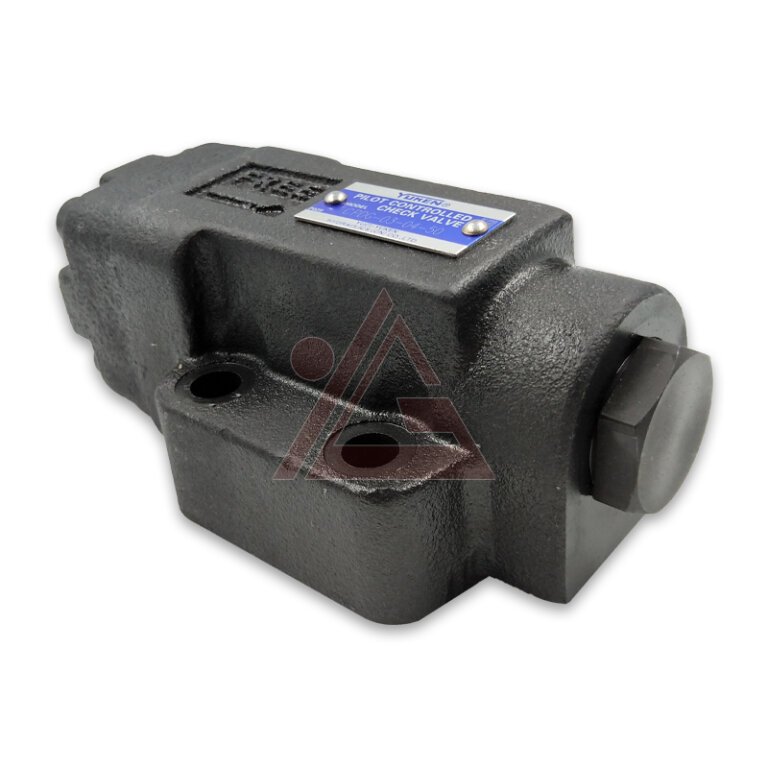

The YUKEN CPT-03 is a threaded, pilot-controlled check valve designed to allow free flow in one direction and block flow in the reverse direction until triggered by an external pilot pressure. It is widely used in hydraulic systems for safety functions, such as holding a cylinder’s position or preventing a load from falling in the event of a power loss.
Parameter Table
| Model | CPT-03 CPT-06 CPT-10 CPDT-03 CPDT-06 CPDT-10 |
|---|---|
| Type | Directional control Valve |
| Maximum Pressure | 25Mpa |
| Maximum Flow Valve: | 500 L/min |
| Material | Stainless steel |
| Weight | 3.0-8.5KG |
| Brand | YUKEN |
| Color | Customized |
| Operating Temperature | 0~50°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of CPT CPDT Series Durability and Reliability YUKEN CPT-03-E-04-50 Pilot Controlled Check Valves in Hydraulic Systems
Durability & Reliability
Engineered for long-term use in industrial machinery, these valves offer leak-free performance and resistance to wear, which reduces maintenance costs and system downtime.
High Flow Efficiency
The 03 size supports a rated flow capacity of 40 L/min (10.6 U.S. GPM), maintaining system performance with minimal pressure drops.
Precision Load Holding
Ideal for applications requiring secure holding of hydraulic actuators, preventing gradual drift or accidental movement.
Applications
Widely used in hydraulic systems,balers, compactors, lifts, and presses, robots, processing equipment.
FAQ
FOB, CFR, CIF.
Standard: 16-25MPa. High-pressure models: up to 35MPa (with 42CrMo alloy).
Give us the correct nameplate photo with model number or drawing,We will provide you with the drawings based on the information you have provided for your confirmation.
We will use plywood carton for packing.
We have 3 production lines and can produce more than 4,00 hydraulic products every day.
