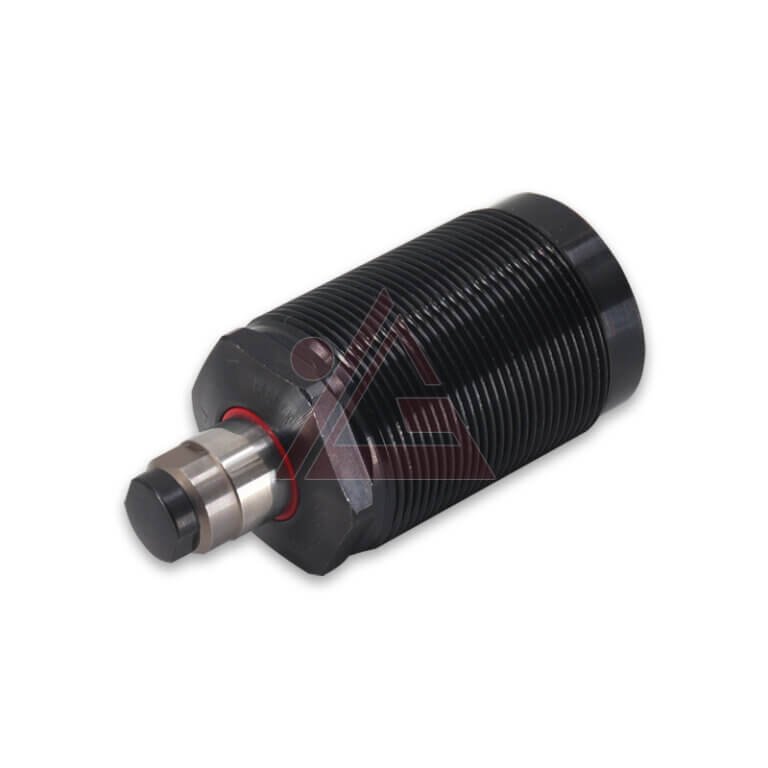

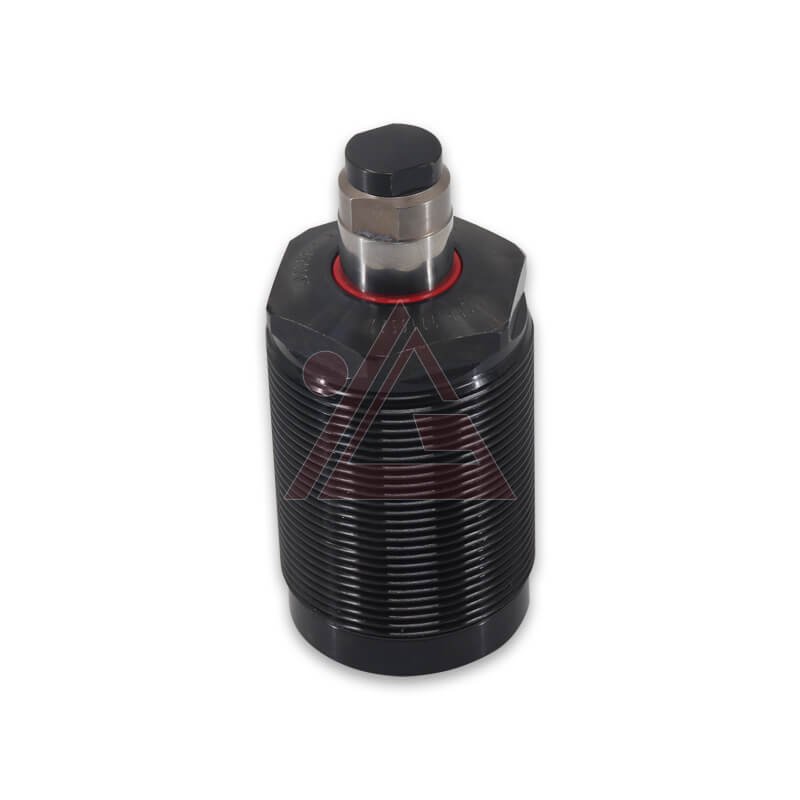

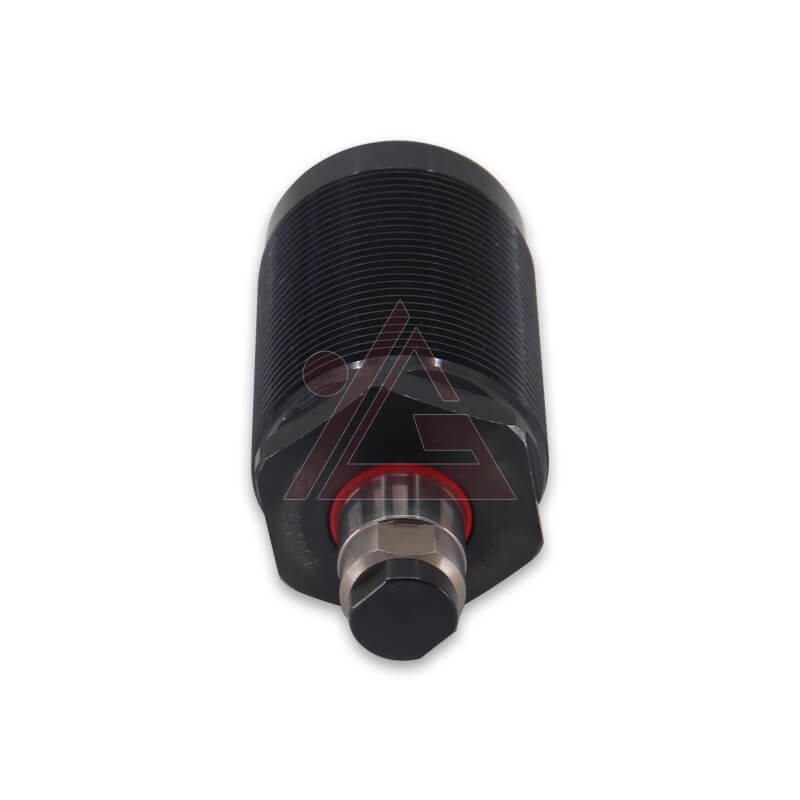

What is Efficiency and Safety Support Hydraulic Cylinder
Support hydraulic cylinders (often referred to as work supports) provide a unique set of advantages specifically for machining and heavy-duty load stabilization.
Parameter Table
| Model | LD0362-L-E |
|---|---|
| Type | Support |
| Bore | M36×1.5 |
| Rod | Internal thread type |
| Stroke | 1-30mm |
| Working Pressure | 2.5-7Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Efficiency and Safety Support Hydraulic Cylinder
Enhanced Rigidity and Vibration Dampening
By providing an additional rigid support point, they minimize part deflection and machining vibrations, ensuring high-quality, repeatable results even with thin or complex parts.
Smooth & Precise Control
Offer controlled, jerk-free linear motion, essential for accurate positioning and reducing shock.
Efficiency
Convert energy efficiently into mechanical work, minimizing waste.
Applications
Widely used in Industrial Machinery (presses, shears, robotics), and specialized tasks in Maritime (steering, winches) and Agricultural (seeding, harvesting) sectors.
FAQ
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
Yes! We specialize in customized hydraulic cylinders – provide your requirements (e.g., bore size, stroke length, mounting style, pressure rating) and we'll design a solution tailored to your needs.
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
Of course, We will keep track of the order throughout the process and promptly inform you of the production progress.
Yes, we can produce by your samples or technical drawings.
