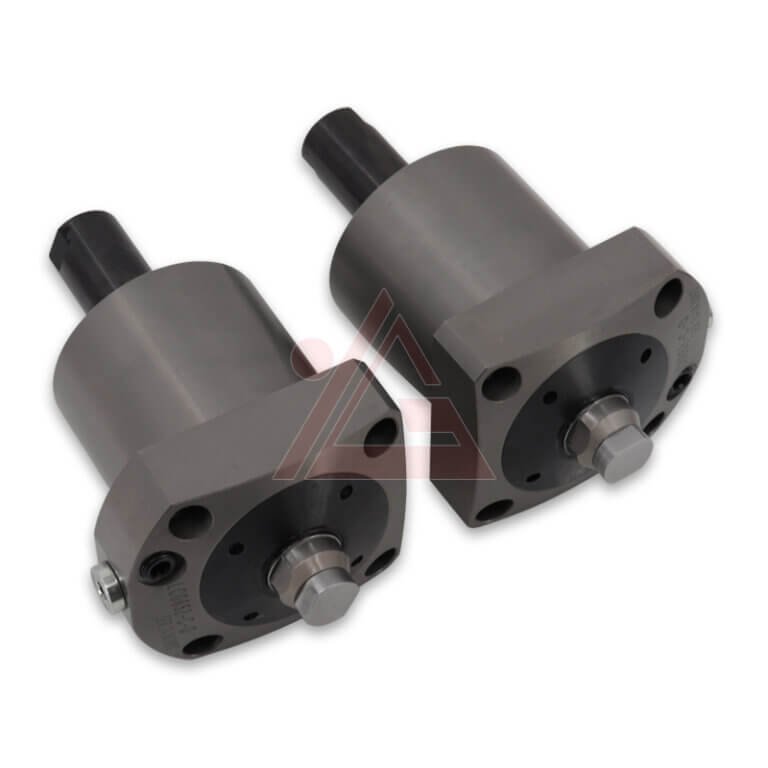

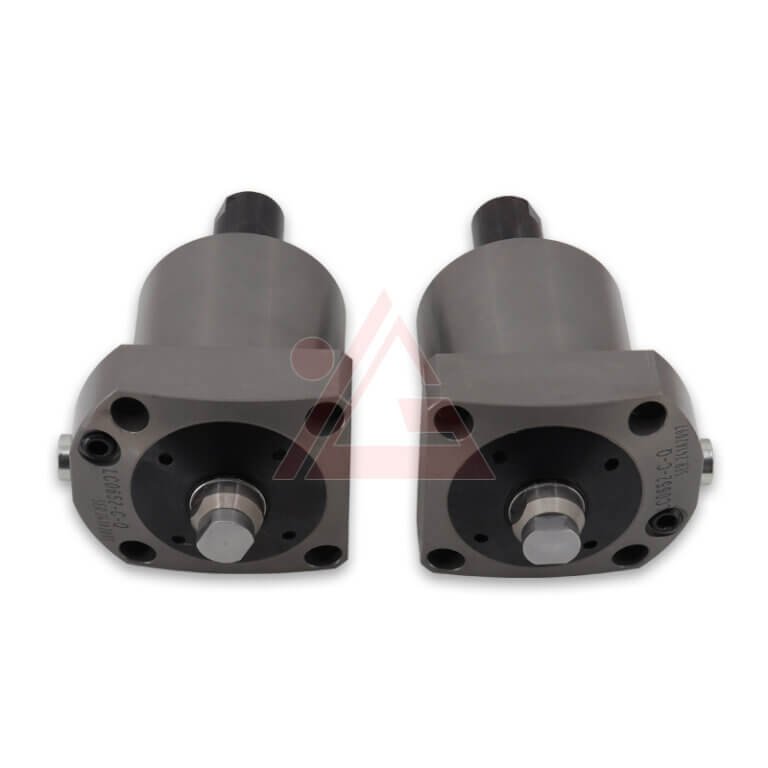

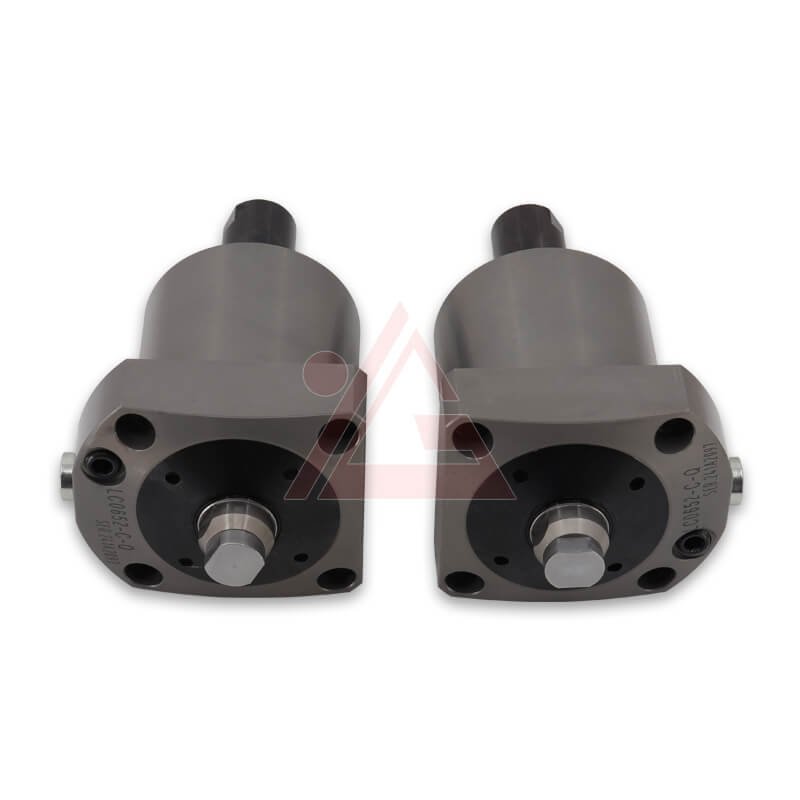

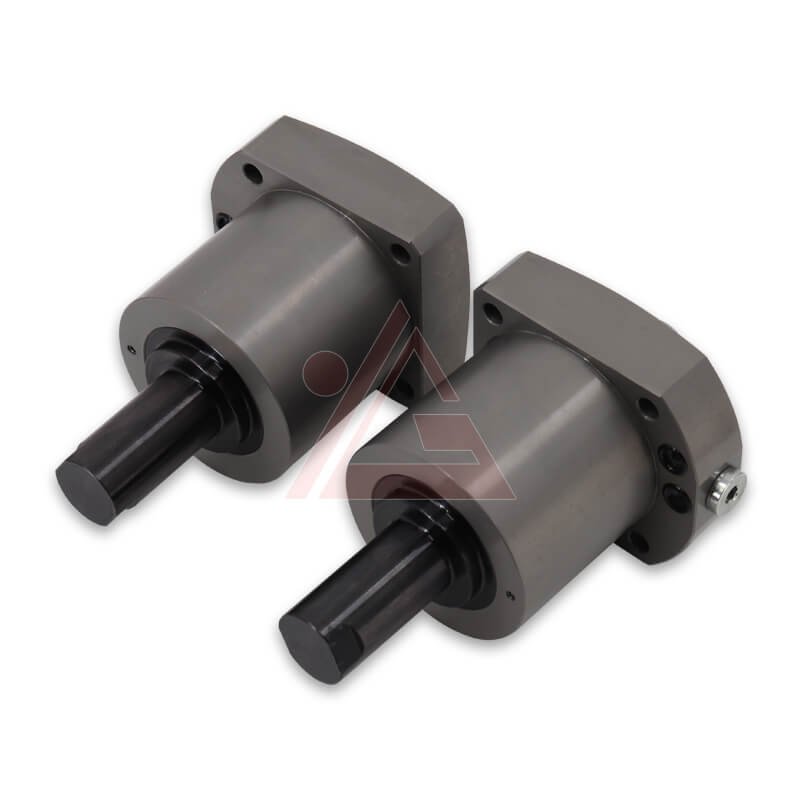

What is Energy Efficiency Single-acting Support Hydraulic Cylinder
Single-acting support hydraulic cylinders offer several advantages in 2026 for industrial and heavy-duty applications where force is primarily required in one direction. Their design prioritizes cost-effectiveness, simplicity, and compactness.
Parameter Table
| Model | LC0652-C-Q |
|---|---|
| Type | Single-acting |
| Bore | 65mm |
| Rod | Internal thread type |
| Stroke | 1-30mm |
| Working Pressure | 2.5-7Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Energy Efficiency Single-acting Support Hydraulic Cylinder
Energy Efficiency
They consume hydraulic energy only during the extension phase. The return stroke is powered by external forces like gravity or internal springs, which can lower overall operational energy costs.
Safety Features
Many single-acting cylinders have a predictable "fail-safe" state. In the event of a power outage, they can automatically return to a resting.
Lifting & Support
Used extensively in hydraulic jacks, scissor lifts, and dump truck beds where the weight of the load handles the retraction.
Applications
Widely used in construction project, lifting equipment, industrial machinery, clamping, and material handling.
FAQ
We have strict controls from material inspection to production and final testing,
Ensure every hydraulic cylinder meets standards.
No MOQ, 1 pc can be customized.
Usually 15-25 days, depending on product complexity.
Our engineers will create the design hydraulic cylinder drawings based on your requirements and submit them for your review and approval. Any necessary revisions will be made according to your feedback. Production will commence only after the final design is confirmed.
Yes, 12-month warranty, lifetime tech support.
