What is Extreme Durability Support Hydraulic Cylinder
A support hydraulic cylinder (often called a work support) is a specialized linear actuator designed to provide rigid, temporary support to a workpiece or machine component. Unlike standard hydraulic cylinders that primarily push or pull to move a load, support cylinders are used to stabilize objects, absorb vibrations, and prevent deformation during machining or structural tasks.
Parameter Table
| Model | LC0752-C-D |
|---|---|
| Type | Support |
| Bore | 75mm |
| Rod | Internal thread type |
| Stroke | 1-30mm |
| Working Pressure | 2.5-7Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |

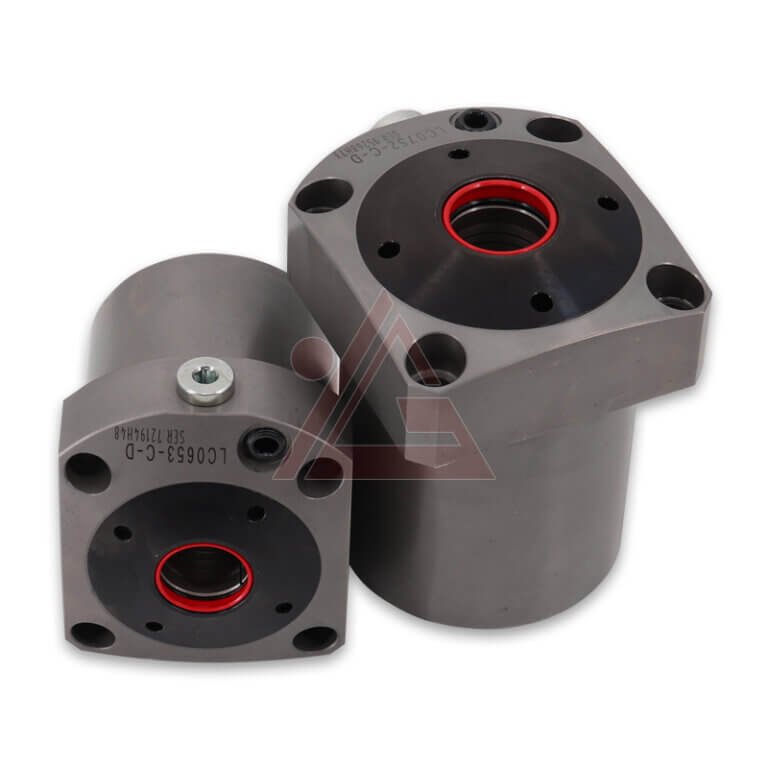

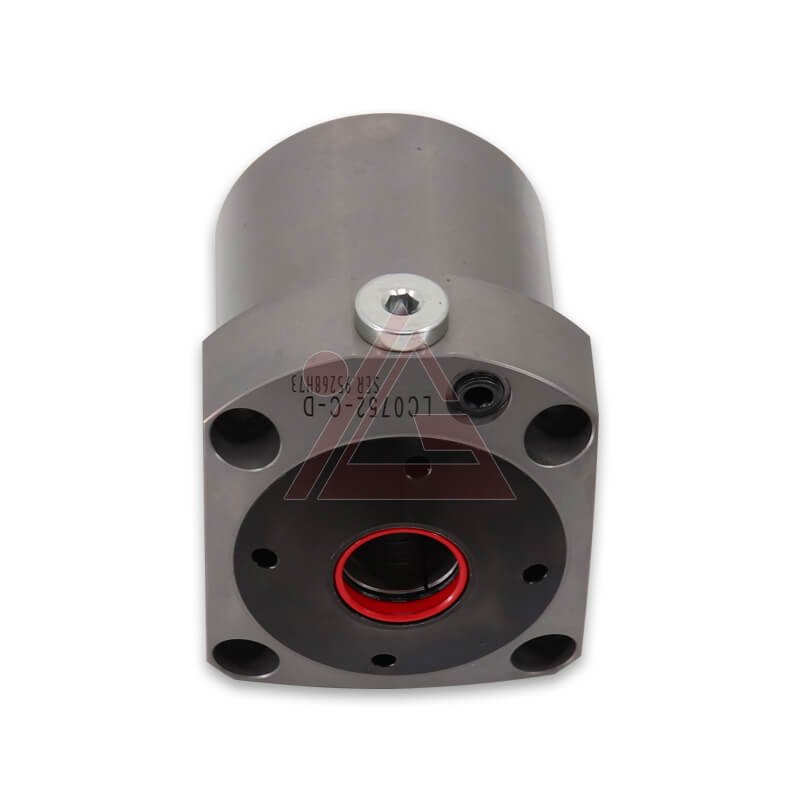

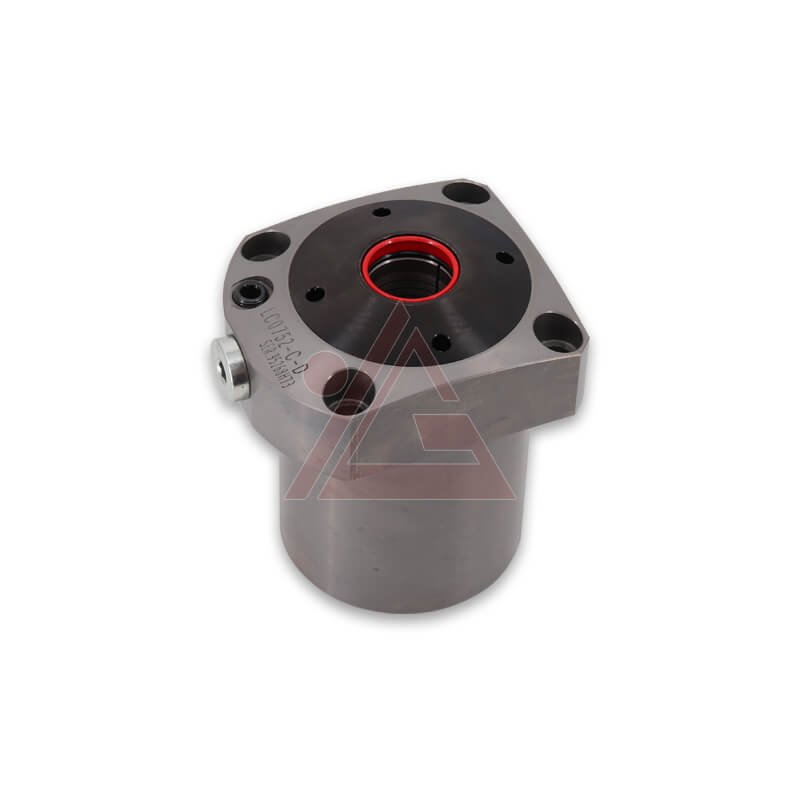

Details of Extreme Durability Support Hydraulic Cylinder
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Extreme Durability Support Hydraulic Cylinder
Enhanced Rigidity and Vibration Dampening
By providing an additional rigid support point, they minimize part deflection and machining vibrations, ensuring high-quality, repeatable results even with thin or complex parts.
High Power-to-Size Ratio
They deliver immense supporting force in a compact footprint, making them ideal for tight spaces where mechanical clamps or large supports would not fit.
Automatic Contour Adjustment
Many models (such as spring-advance or hydraulic-advance types) automatically move into contact with the workpiece regardless of its surface irregularities, then lock into place without deforming the part.
Applications
Widely used in heavy lifting (cranes, lifts), powering heavy machinery (excavators, bulldozers, forklifts), Industrial Machinery,Offshore & Marine,agricultural (seeding, harvesting) sectors
FAQ
FOB, CFR, CIF.
Monthly output 400PCS, our products & service cover 20+ countries and regions.
In-house QC team makes Strict inspections at each production stage.
Standard: 16-25MPa. High-pressure models: up to 35MPa (with 42CrMo alloy).
20days (standard), 20-35 days for custom orders.
