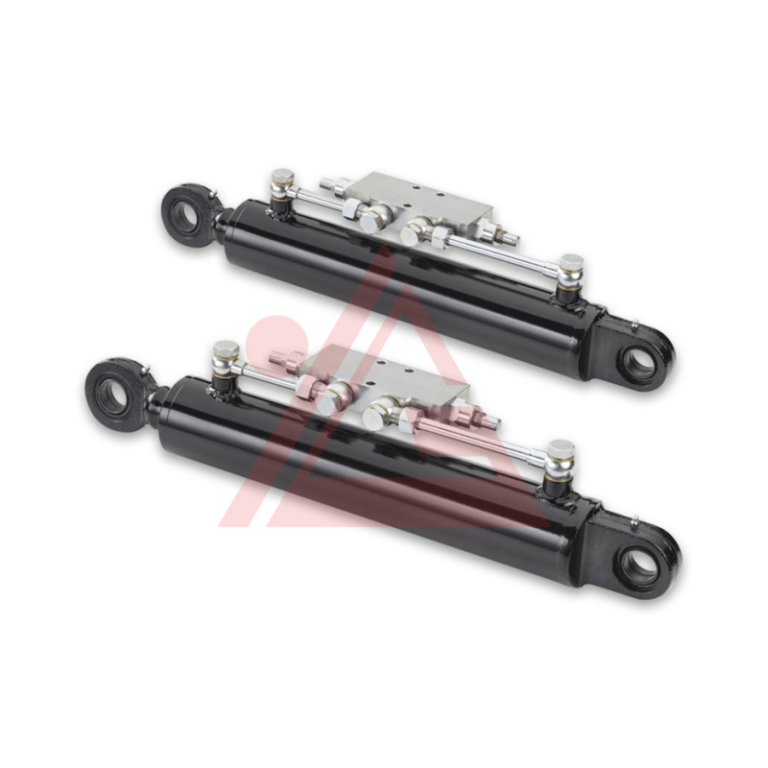

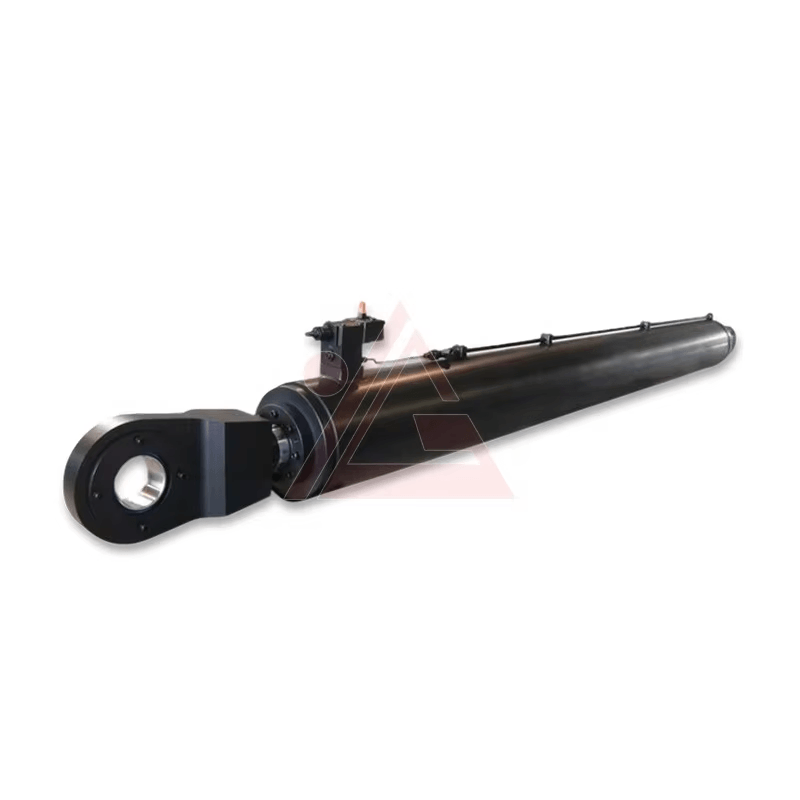

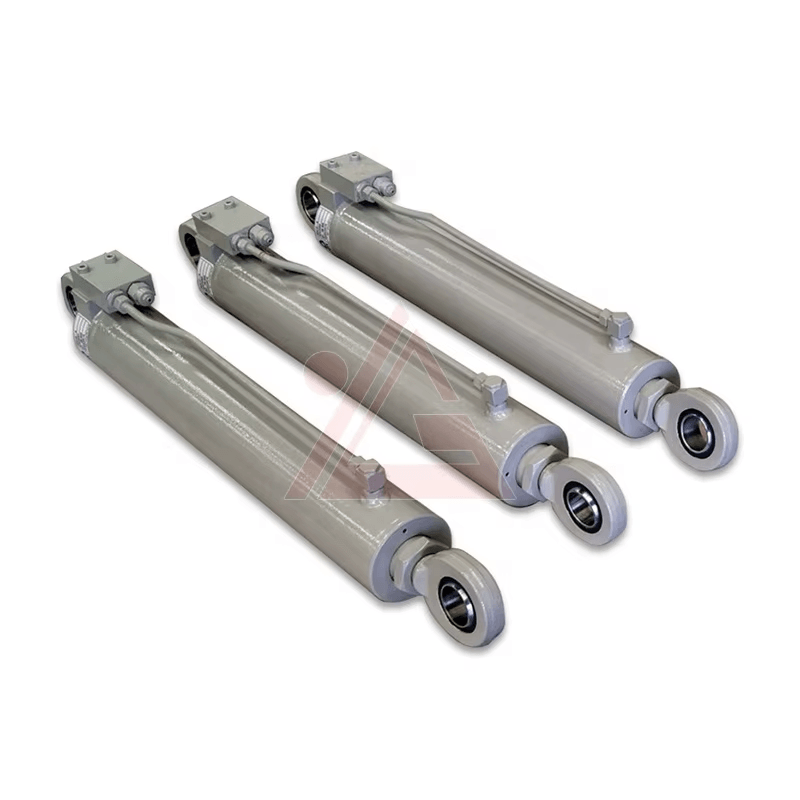

What is Extreme Environment Durability Vehicle Hydraulic Cylinder
Improve the performance and safety of your hydraulic systems with Yagang tie rod hydraulic cylinders. Our tie rod cylinders offer a wide range of bore and stroke sizes combined with robust features to withstand extreme environmental conditions and constant use.
Parameter Table
| Model | Custom |
|---|---|
| Type | / |
| Bore | Custom |
| Rod | Custom |
| Stroke | Custom |
| Working Pressure | Custom |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Extreme Environment Durability Vehicle Hydraulic Cylinder
Optimized Force-Speed Progression
Multi-stage telescopic cylinders inherently extend with the largest diameter stage first, delivering maximum force at slowest speed to safely break loose heavy loads, then smaller stages extend faster with less force for quicker dumping
Extreme Environment Durability
Hard chrome-plated piston rods with very low roughness and high hardness resist corrosion from road salt, moisture, and mud, while Viton or PTFE seals and guide rings ensure reliability under the most difficult operating conditions
Contamination Exclusion Design
Plastic protective sleeves and mounted sealing rings actively protect piston rods against damage, dirt, and moisture during installation and operation, preventing premature failure.
Applications
Widely used in lifting dump truck beds, construction project, and enabling vehicle power steering systems.
FAQ
Hard chrome plating (30-50μm, HV≥800), with optional laser cladding for extreme wear resistance
The material of the cylinder barrel commonly used by our company is 40CrMn honed tube ,while the magnetic cylinder uses 304 material for the cylinder barrel
We are a direct manufacturer with our own factory located in Xiamen,China. We oversee the entire production process to ensure quality control and competitive pricing.
In-house QC team makes Strict inspections at each production stage
20days (standard), 20-35 days for custom orders.
