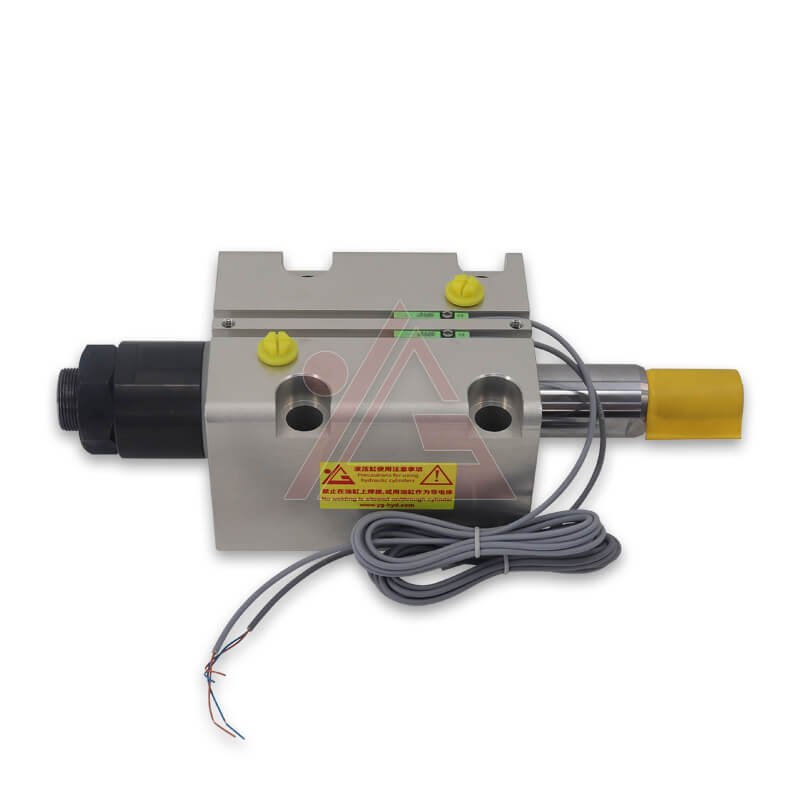

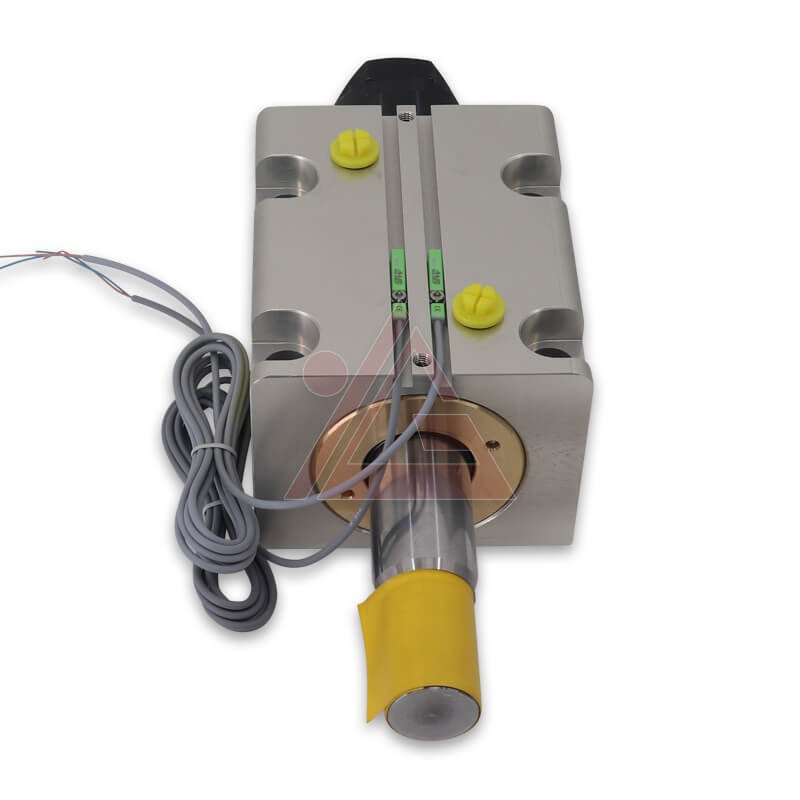

What is Extreme Space Efficiency YG160SRD-1LA63-50-20 Low Height Compact Hydraulic Cylinder
Engineered to operate effectively in applications where space is limited, they feature streamlined construction, often using materials like aluminum alloy or steel to balance strength and size.This feature allows the user to set the required travel length of the piston rod, which is critical for operations needing variable precision, such as engaging different work pieces or controlling specific movement limits without changing hardware.
Video
Parameter Table
| Model | YG160SRD-1LA63-50-20 |
|---|---|
| Type | Double acting |
| Bore | 36mm |
| Rod | 28mm |
| Stroke | 5-100mm |
| Working Pressure | 16Mpa |
| Tube | 45# steel |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Extreme Space Efficiency YG160SRD-1LA63-50-20 Compact Hydraulic Cylinder
Extreme Space Efficiency
Its compact "thin" design with a 16MPa rating significantly reduces overall length compared to conventional tierod cylinders, fitting into ultratight machinery frames where standard units cannot be installed.
Longer Service Life
Manufactured from high-strength 45# steel and special alloys, it provides up to 5 times longer service life than ordinary cylinders. The inner bore is mirrorfinished, doubling internal strength compared to conventional processes.
Superior Wear & Heat Resistance
Features a hard chromeplated piston rod for excellent wear and corrosion protection. Standard abrasionresistant HNBR seals and special copper alloy bearings ensure reliable longterm operation even at ambient temperatures up to 120°C.
Applications
Widely used in industrial machinery, machine tools, molding equipment, and heavy machinery.
FAQ
Yes. We offer: Factory photos/videos (production lines, facilities, etc.).Business licenses and certifications (e.g., ISO, CE,Yagang brand registration). Audit reports (third-party or client-conducted).
We are a direct manufacturer with our own factory located in Xiamen,China. We oversee the entire production process to ensure quality control and competitive pricing.
Monthly output 400PCS, our products & service cover 20+ countries and regions.
The cylinders are manufactured by advanced equipment and made under strictly quality control processing.The steel is tempered and all raw materials are good quality from world famous companies.Competitive price!
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
