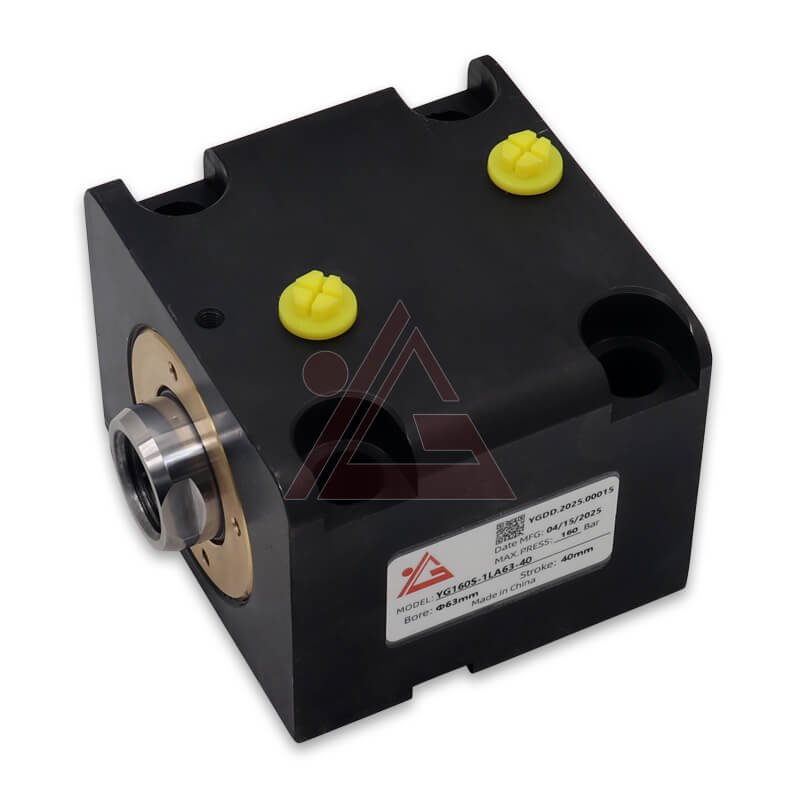

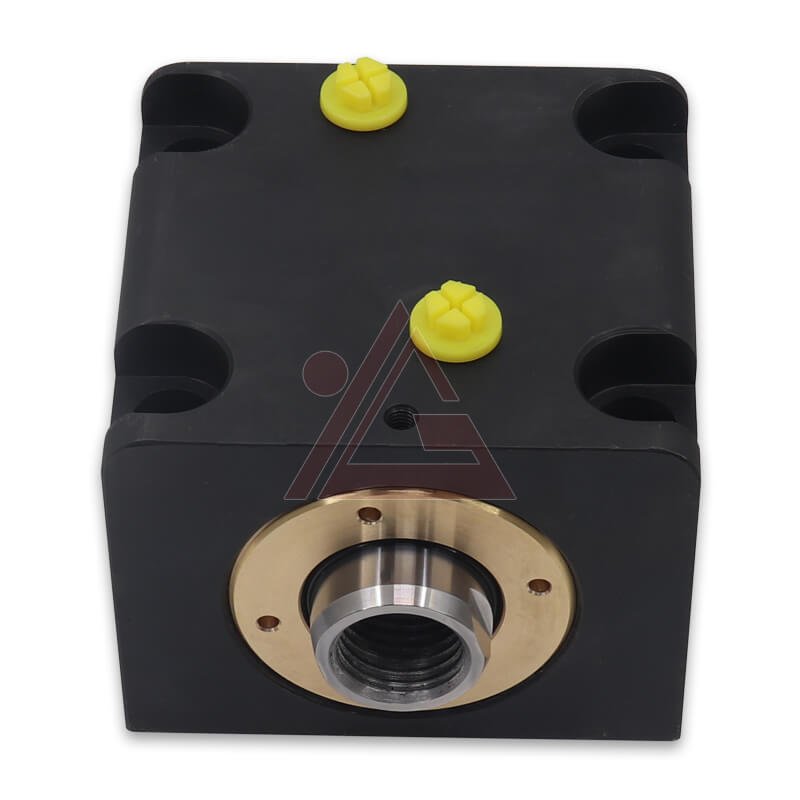

What is Flexible Mounting YG160S-1LA63-40 Compact Hydraulic Cylinder
The YG160S-1LA63-40 is a 16MPa compact thin hydraulic cylinder from the 160S-1 series, specifically designed to deliver powerful linear force in applications where mounting space is limited. The model indicates a 63mm bore, a 40mm stroke, and an LA (side lug) mounting style.
Video
Parameter Table
| Model | YG160S-1LA63-40 |
|---|---|
| Type | Double acting |
| Bore | 63mm |
| Rod | 36mm |
| Stroke | 40mm |
| Working Pressure | 16Mpa |
| Tube | 45# Steel |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Flexible Mounting YG160S-1LA63-40 Compact Hydraulic Cylinder
High Force in Compact Size
Optimized highstrength steel construction delivers stable 16MPa (2,320 PSI) output, providing substantial load capacity despite the compact envelope.
Flexible Mounting Options
Supports multiple standard styles (SD, ST, LA, LD, FA, FB), easily adapting to new or retrofit equipment without complex brackets.
Precision & Customization
Stroke customizable in 1mm increments; magnetic switches can be positioned anywhere for accurate feedback; HNBR seals ensure reliable operation across temperature ranges.
Applications
Widely used in machine tools, injection molding machines, die casting machines, and other general industrial equipment where space is limited.
FAQ
Yes, We offer,you need to provide the relevant authorization for the brand.
1pc.
The material of the cylinder barrel commonly used by our company is 40CrMn honed tube ,while the magnetic cylinder uses 304 material for the cylinder barrel.
Of course, We will keep track of the order throughout the process and promptly inform you of the production progress.
Of course, every one of our orders can be delivered to the customers on time.
