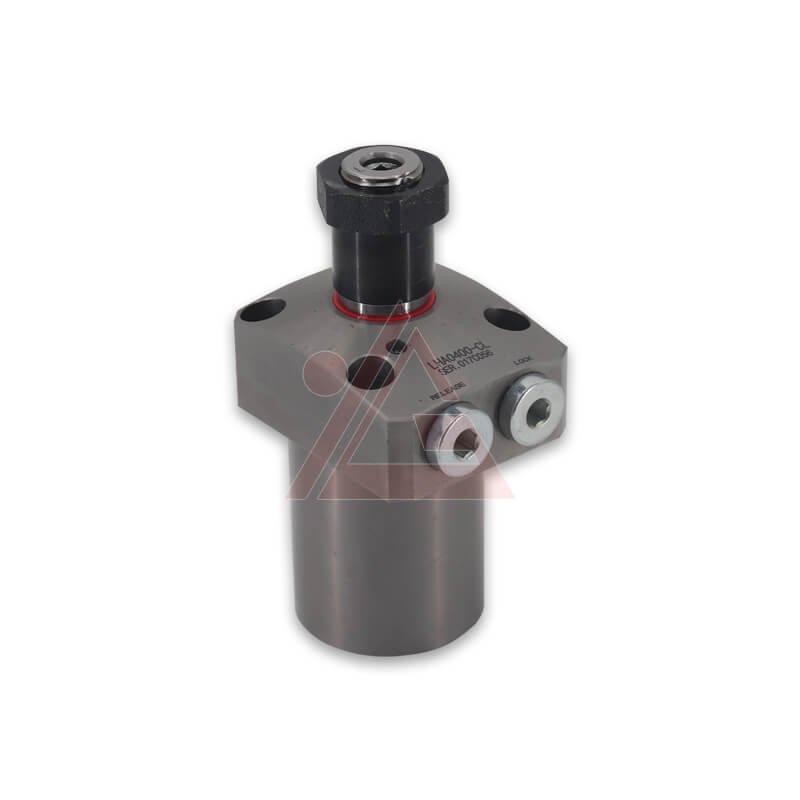

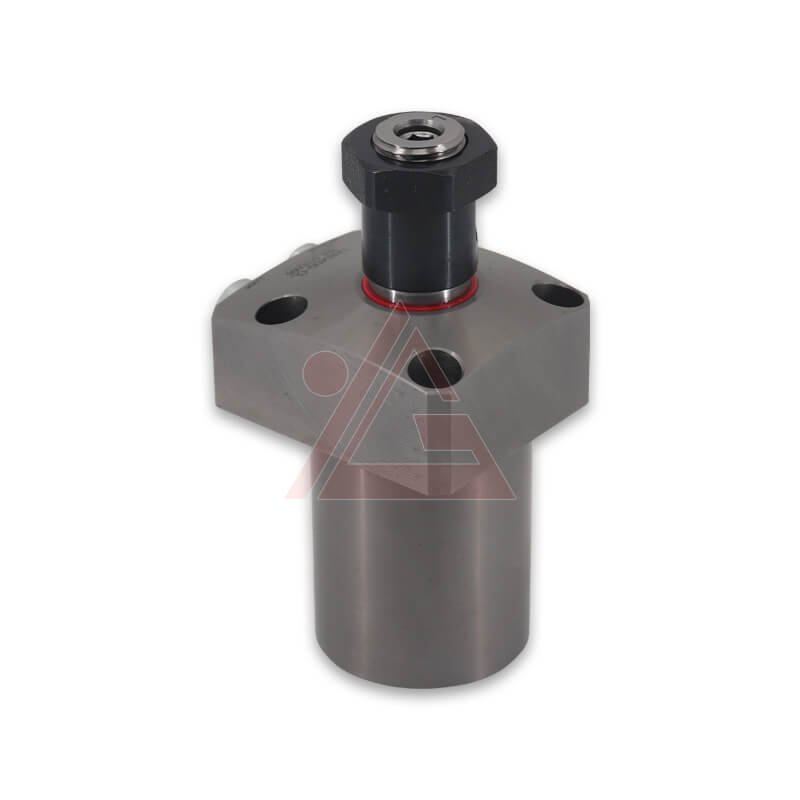

What is High Durability and Sealing LHA0400-CL Hydraulic Swing Clamping Cylinder
The LHA0400-CL is a compact, double-acting hydraulic swing clamp. It is widely used in CNC machining and automated production lines to hold workpieces securely. The cylinder automatically swings its clamping arm out of the way for easy loading and unloading, then clamps downward with high force.
Parameter Table
| Model | LHA0400-CL |
|---|---|
| Type | Swing clamp |
| Bore | 40mm |
| Rod | Internal thread type |
| Stroke | 1-30mm |
| Working Pressure | 1.5-7Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of High Durability and Sealing LHA0400-CL Hydraulic Swing Clamping Cylinder
Optimized Clamping Force & Rigidity
Features a larger guide ratio than traditional clamps, delivering up to 3.5 kN of max clamping force while accommodating longer lever arms without deflecting.
Simplified Lever Design
The supplied taper sleeve eliminates the complex and time-consuming tapering process traditionally required when manufacturing custom clamping levers.
High Durability and Sealing
Incorporates an exclusive dust seal that provides high resistance to chlorine-based high-pressure coolants, ensuring long-term reliability in harsh machining environments.
Applications
Widely used in CNC milling,automated assembly fixtures,heavy machinery.
FAQ
We will use plywood carton for packing.
Yes, we can produce by your samples or technical drawings.
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
You can first contact us and inform us of the product specifications, model or drawings you desire. We will provide you with a quote and confirm the transportation method as soon as possible. Subsequently, we will draft the order for you. Please confirm the order amount and make the payment.
Yes! We specialize in customized hydraulic cylinders – provide your requirements (e.g., bore size, stroke length, mounting style, pressure rating) and we'll design a solution tailored to your needs.
