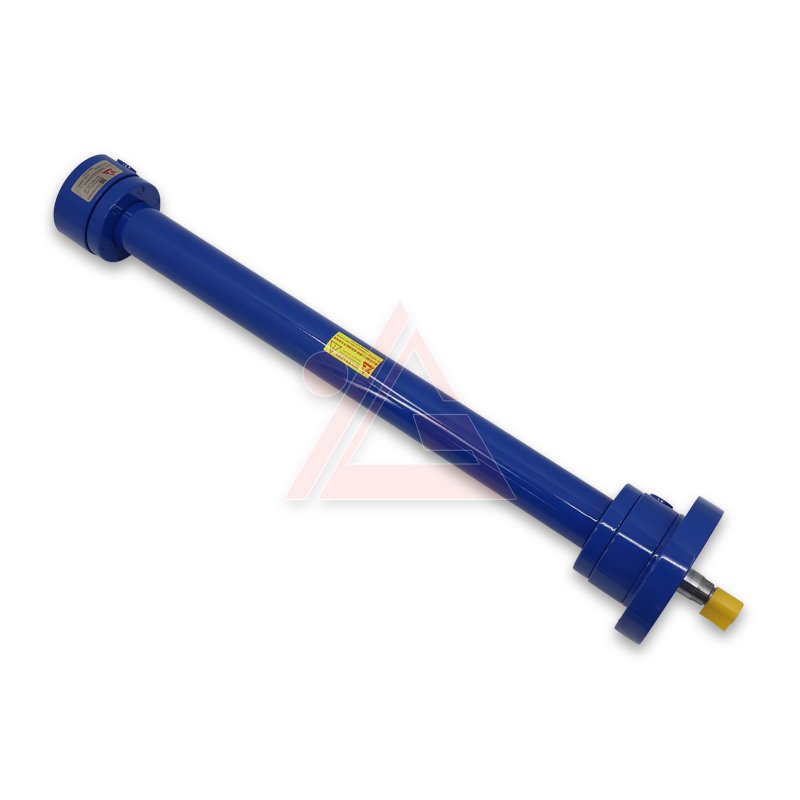

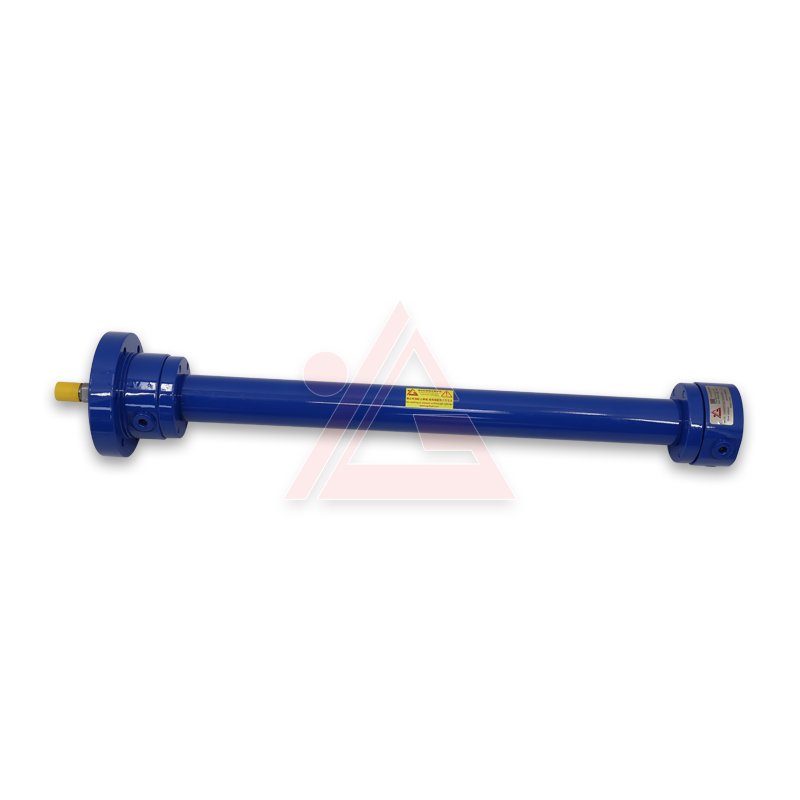

What is High Industrial Resilience YGM1MF3-50-28-600A2X Metallurgical Hydraulic Cylinder
The YGM1MF3-50-28-600A2X is a heavy-duty double-acting steel hydraulic cylinder designed for demanding metallurgical, mining, and industrial applications. Engineered for severe conditions, it delivers powerful linear force and reciprocating motion.
Video
Parameter Table
| Model | YGM1MF3-50-28-600A2X |
|---|---|
| Type | Double acting |
| Bore | 50mm |
| Rod | 28mm |
| Stroke | 600mm |
| Working Pressure | 16Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of High Industrial Resilience YGM1MF3-50-28-600A2X Metallurgical Hydraulic Cylinder
High Industrial Resilience
Built to endure severe radiant heat, abrasive mill scale, and continuous high-cycle operations where standard industrial tie-rod cylinders fail.
Centerline Force Absorption
The MF3 head round flange mounts directly to the face of the machine. This style absorbs load forces along the cylinder centerline, dramatically reducing harmful side-loading and seal wear.
Impact Shock Reduction
The adjustable end-position cushioning (A) slows the piston down just before it hits the mechanical limits. This eliminates metal-on-metal slamming, decreases structural vibration, and extends machine service life.
Applications
Widely used in steel mills,industrial machinery,automated production lines.
FAQ
We are a direct manufacturer with our own factory located in Xiamen,China. We oversee the entire production process to ensure quality control and competitive pricing.
We will use plywood carton for packing.
You can first contact us and inform us of the product specifications, model or drawings you desire. We will provide you with a quote and confirm the transportation method as soon as possible. Subsequently, we will draft the order for you. Please confirm the order amount and make the payment.
Yes! We specialize in customized hydraulic cylinders – provide your requirements (e.g., bore size, stroke length, mounting style, pressure rating) and we'll design a solution tailored to your needs.
We will use plywood carton for packing.
