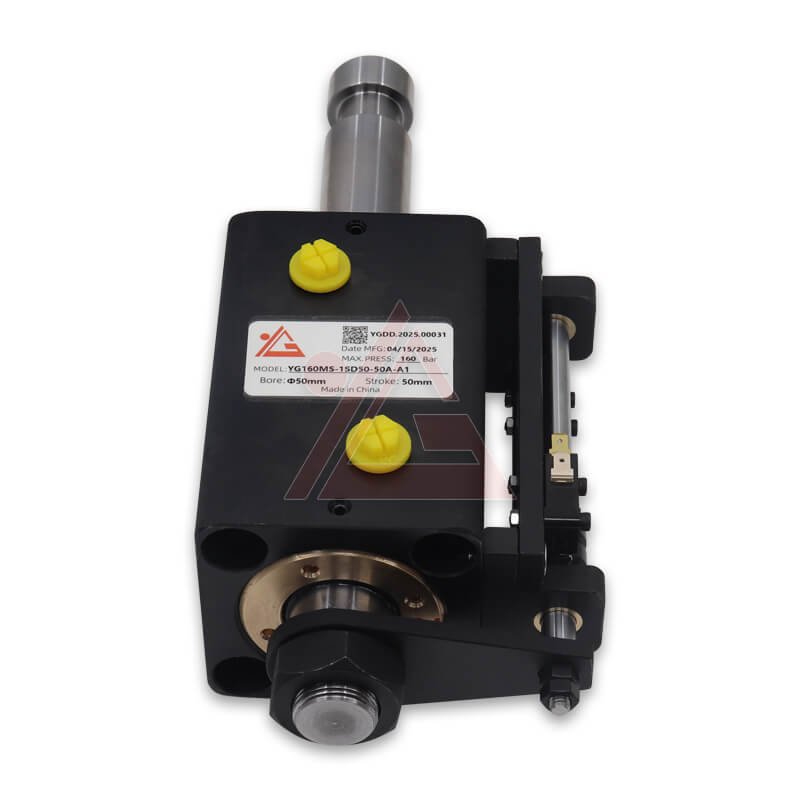

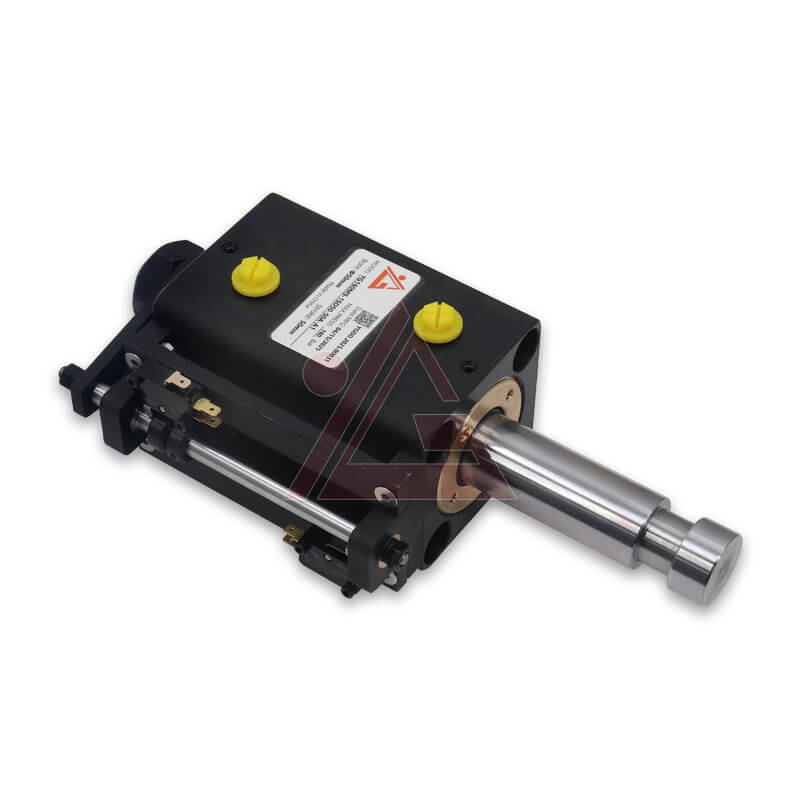

What is High Pressure High Temperature Durability YG160MS-1SD50-50A-A1 Stainless Steel Compact Mold Hydraulic Cylinder
A compact mold hydraulic cylinder is a specialized actuator designed for space-constrained industrial environments, primarily used in plastic injection molding and die-casting. These cylinders actuate critical movements—such as core pulling, slide movement, and ejection—while maintaining high force in a small footprint.
Video
Parameter Table
| Model | YG160MS-1SD50-50A-A1 |
|---|---|
| Type | Double acting |
| Bore | 50mm |
| Rod | 28mm |
| Stroke | 5-200mm |
| Working Pressure | 16Mpa |
| Tube | 45# steel |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of High Pressure High Temperature Durability YG160MS-1SD50-50A-A1 Stainless Steel Compact Mold Hydraulic Cylinder
Space-Saving Footprint
Its short overall length and compact dimensions are specifically designed for injection molding machines and tight automation environments where space is at a premium.
High-Pressure Durability
It can operate reliably up to 10 million cycles at 16 MPa (approximately 2,300 PSI), making it ideal for heavy-duty mold clamping and pushing applications.
Abrasion-Resistant Sealing
Built with Hydrogenated Nitrile Rubber (HNBR) seals as a standard, which provides excellent resistance to wear and tear and high temperatures.
Applications
Widely used in plastic injection molding,die-casting,manufacturing and metal processing.
FAQ
We will use plywood carton for packing.
Yes, we can produce by your samples or technical drawings.
You can first contact us and inform us of the product specifications, model or drawings you desire. We will provide you with a quote and confirm the transportation method as soon as possible. Subsequently, we will draft the order for you. Please confirm the order amount and make the payment.
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
Yes! We specialize in customized hydraulic cylinders – provide your requirements (e.g., bore size, stroke length, mounting style, pressure rating) and we'll design a solution tailored to your needs.
