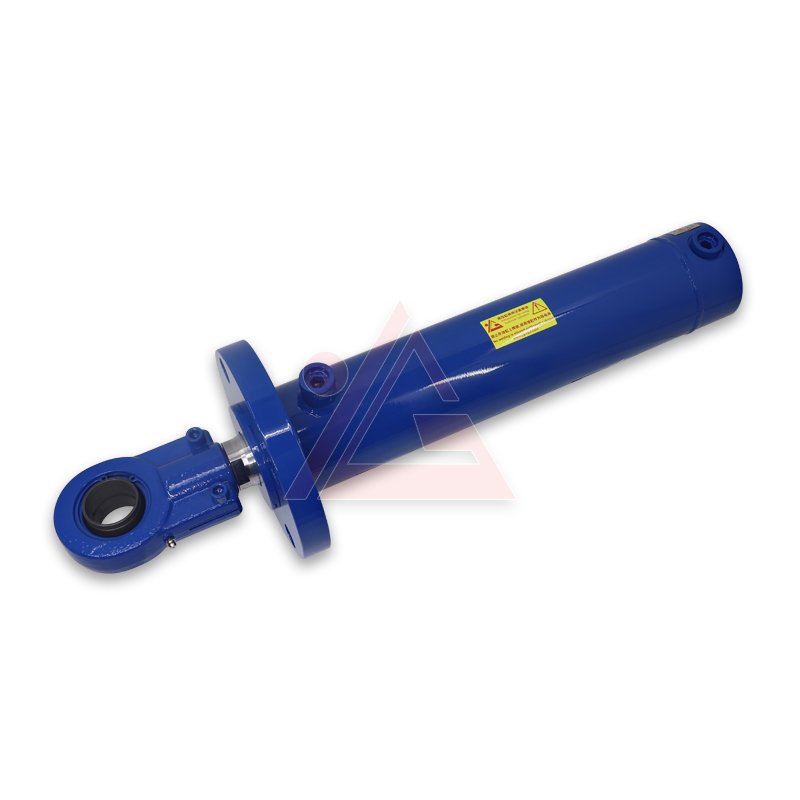

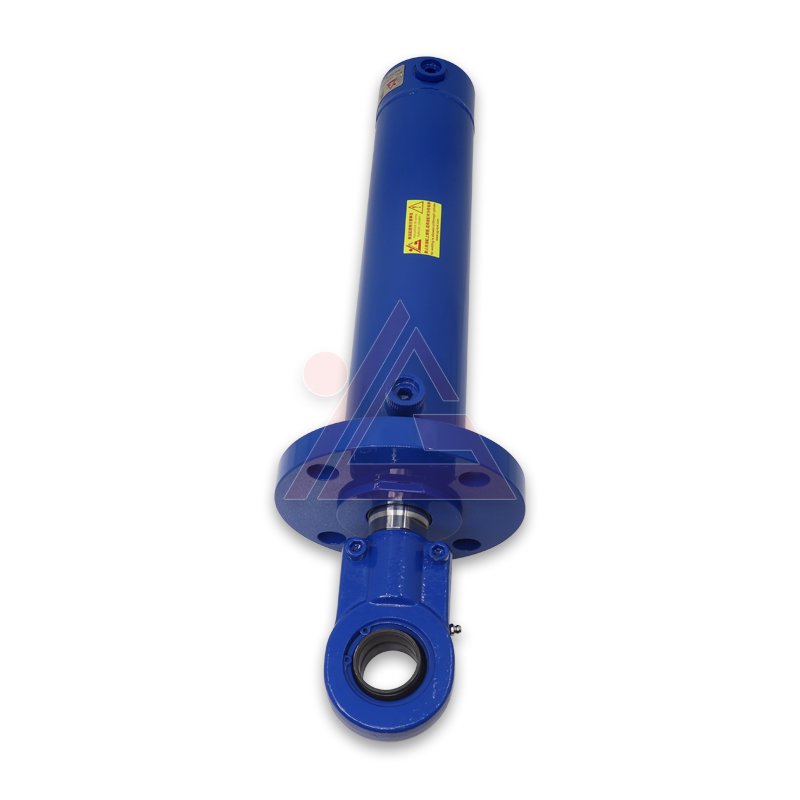

What is High Pressure Tolerances YGL1MF3-80-45-300D1X Welded Hydraulic Cylinder
The YGL1MF3-80-45-300D1X is a heavy-duty, double-acting welded hydraulic cylinder widely utilized in demanding mobile and industrial applications like dump trucks and excavators.this cylinder is constructed with steel and features a hard chrome-plated piston rod to resist wear, rust, and harsh environmental conditions.
Parameter Table
| Model | YGL1MF3-80-45-300D1X |
|---|---|
| Type | Double acting |
| Bore | 80mm |
| Rod | 45mm |
| Stroke | 300mm |
| Working Pressure | 16Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of High Pressure Tolerances YGL1MF3-80-45-300D1X Welded Hydraulic Cylinder
High Pressure Tolerances
The structural integrity of the fully welded body enables the unit to handle high operating pressures (160 Bar standard) without risking fatigue or bolt-stretching under spike loads.
Resilience to Shock Loads
Heavy welding prevents barrel flexing, making it significantly more resilient against structural shocks and rough vibrations found in mining, agriculture, or lifting equipment.
Corrosion Protection
Equipped with a hard chrome-plated piston rod, the exterior resists scoring, pitting, and environmental rust, extending the operating lifetime of primary seals.
Applications
Widely used in construction project,industrial machinery,agriculture,offshore and marine.
FAQ
Absolutely! We welcome client visits and audits. Contact us to arrange a tour.
Standard: 16-25MPa. High-pressure models: up to 35MPa (with 42CrMo alloy).
Our products feature high performance, higher cost performance and durability.
We have 3 production lines and can produce more than 4,00 hydraulic products every day.
We will use plywood carton for packing.
