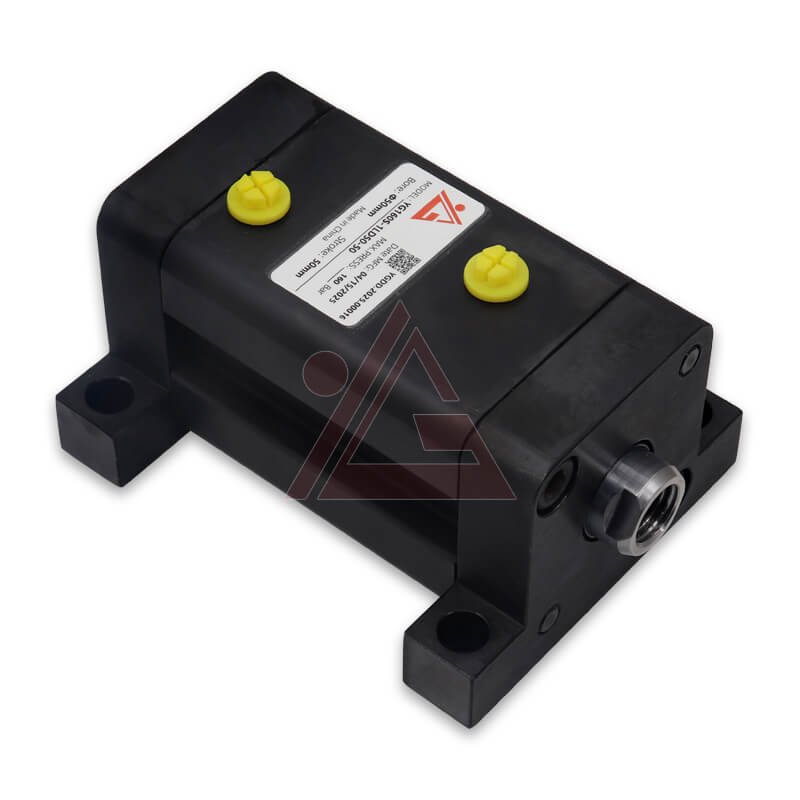

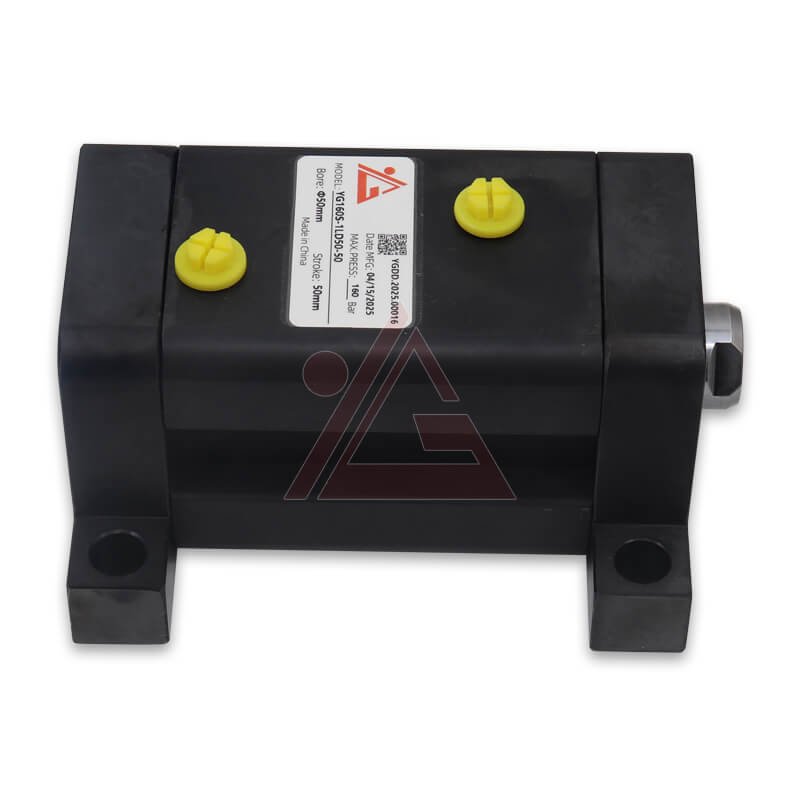

What is High Pressure YG160S-1LD50-50 Compact Hydraulic Cylinder
The YG160S-1LD50-50 is part of the 160S-1 series, a range of high-performance compact hydraulic cylinders specifically engineered to save space. These “thin” cylinders are ideal for tight installations, offering a compact alternative to standard tie-rod designs while still delivering significant force.
Video
Parameter Table
| Model | YG160S-1LD50-50 |
|---|---|
| Type | Double acting |
| Bore | 50mm |
| Rod | 28mm |
| Stroke | 50mm |
| Working Pressure | 16Mpa |
| Tube | 45# Steel |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of High Pressure YG160S-1LD50-50 Compact Hydraulic Cylinder
Advanced High-Pressure Capability
Engineered for a rated pressure of 16 MPa (2,320 PSI) and proof tested to 24 MPa (3,480 PSI), delivering high power density at up to 10 million cycles.
Superior Durability & Long Life
Features a special copper alloy bearing and abrasion-resistant HNBR seals, extending service life even under demanding, high-cycle automation tasks.
Precision Customization & Control
Stroke can be configured in 1 mm increments with a speed range of 8–100 mm/s for exact cycle matching. Slide-type switch allows flexible position sensor placement.
Applications
Widely used in machine tools, plastics machinery, injection molding, and general equipment with limited space.
FAQ
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
Give us the correct nameplate photo with model number or drawing,We will provide you with the drawings based on the information you have provided for your confirmation.
Absolutely! We welcome client visits and audits. Contact us to arrange a tour.
Standard: 16-25MPa. High-pressure models: up to 35MPa (with 42CrMo alloy).
Hard chrome plating (30-50μm, HV≥800), with optional laser cladding for extreme wear resistance.
