What is High-temperature Tolerance Metallurgical Hydraulic Cylinder in Metal Processing
Metallurgical hydraulic cylinders are heavy-duty actuators designed for the extreme conditions of metal production, providing precise force and movement for processes like rolling, forging, casting, and extrusion, featuring high durability, specialized sealing, and water cooling for reliability in hot, demanding environments to control mold movement, shape metal, and ensure product quality.
Video
Parameter Table
| Model | YGM1MF1_50_36_300A2X |
|---|---|
| Type | Double acting |
| Bore | 50mm |
| Rod | 36mm |
| Stroke | 300mm |
| Working Pressure | 16Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |

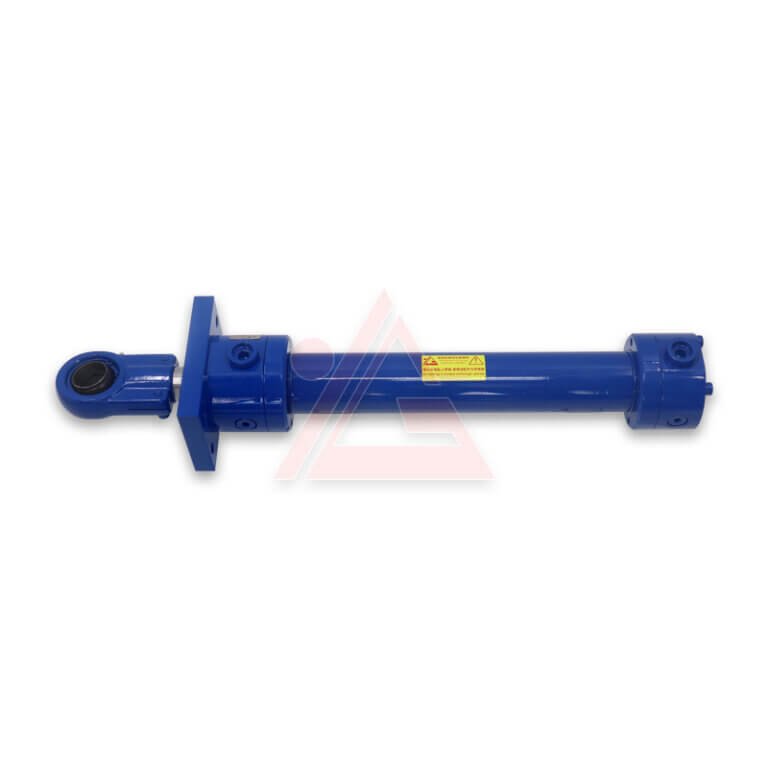

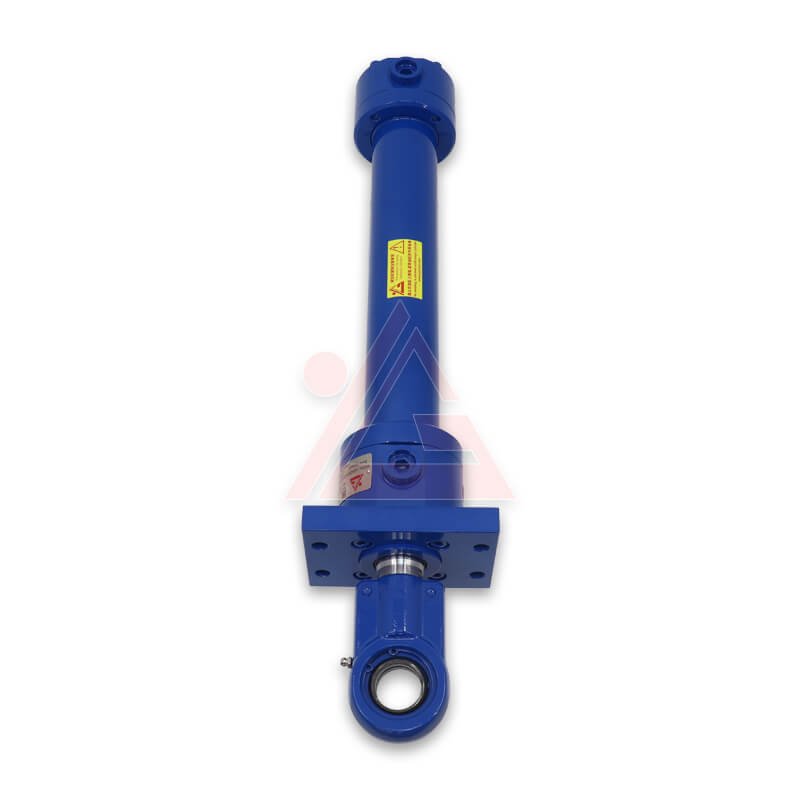

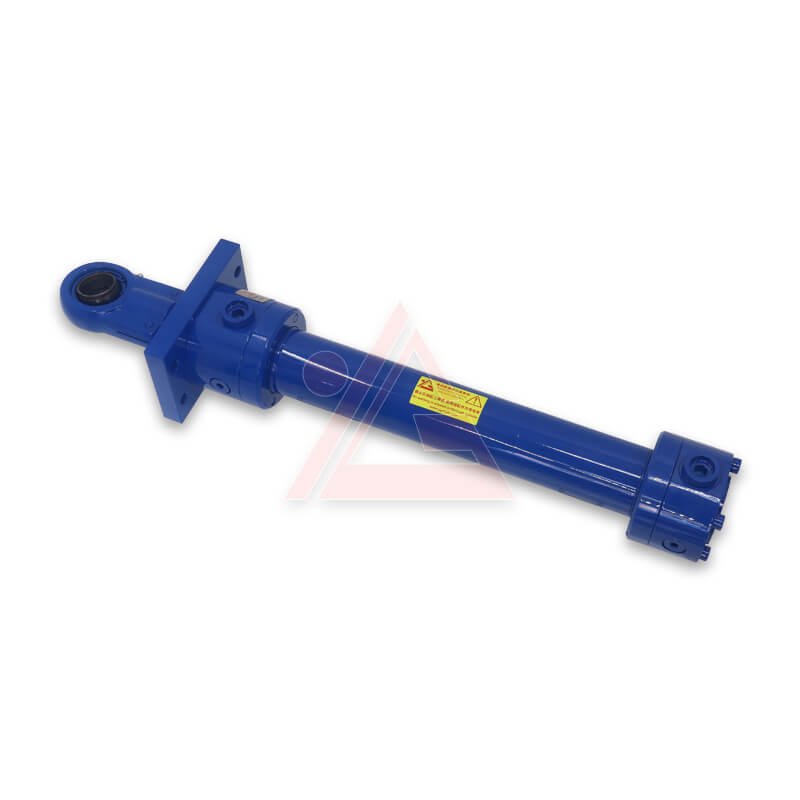

Details of High-temperature Tolerance Metallurgical Hydraulic Cylinder in Metal Processing
Features of High-temperature Tolerance Metallurgical Hydraulic Cylinder in Metal Processing
High-Temperature Tolerance
These cylinders are built to operate in environments reaching up to 700°C using flame-retardant materials and specialized cooling systems.
Corrosion Resistance
To handle acidic or saline conditions in metallurgical plants, they often feature advanced rod coatings like laser cladding or thermal spraying (e.g., Enduroq technology) to prevent pitting and wear.
Robust Sealing
They use "Seal Matrix" configurations that maintain pressure even when exposed to heavy dust, metal slag, and pulverized coal.
Applications
Widely used in Petrochemical Industry, industrial machinery, Iron & Steel Industry , Machine Tools, and Hydraulic Press Machine.
FAQ
FOB, CFR, CIF.
The material of the cylinder barrel commonly used by our company is 40CrMn honed tube ,while the magnetic cylinder uses 304 material for the cylinder barrel.
Email us. We'll provide pricing, and lead time based on your quantity and customization level.
20days (standard), 20-35 days for custom orders.
In-house QC team makes Strict inspections at each production stage.
