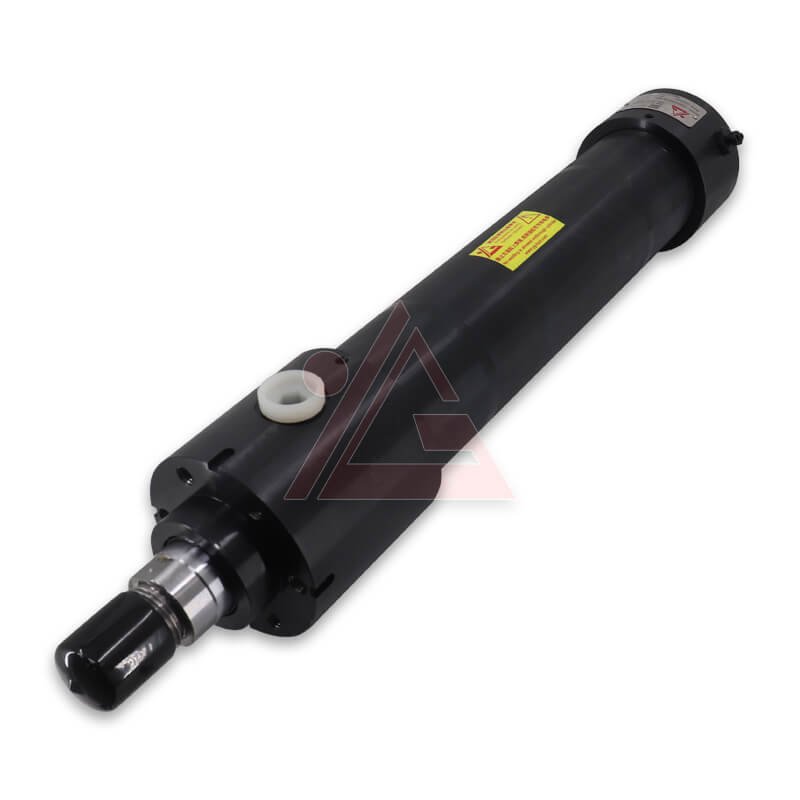

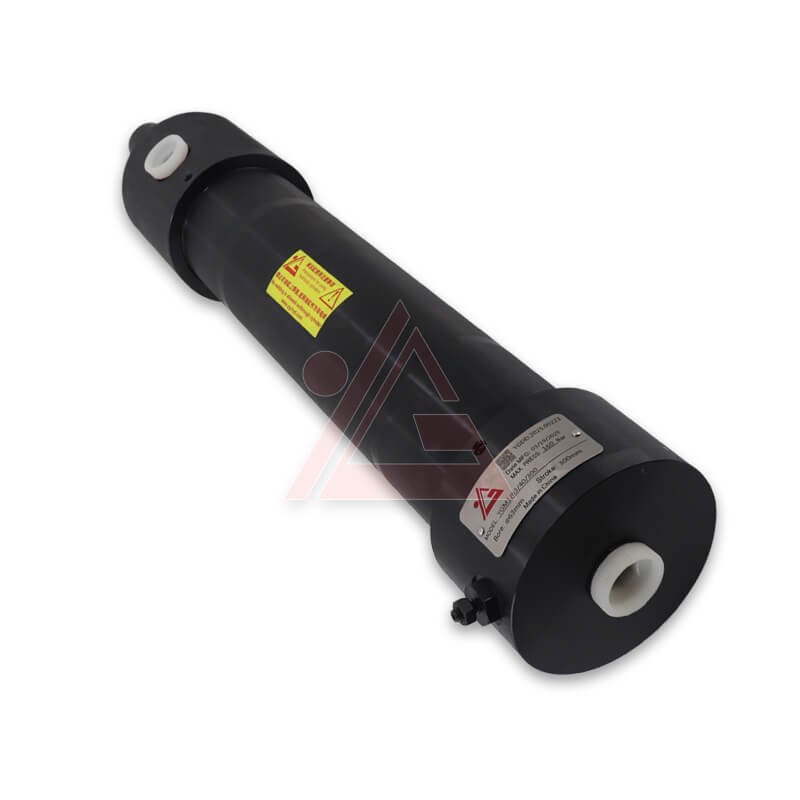

What is High-Temperature Tolerance YGM1-63-40-300 Metallurgical Hydraulic Cylinder
The YGM1-63-40-300 Metallurgical Hydraulic Cylinder is a heavy-duty, double-acting piston-type hydraulic actuator designed for demanding environments like steel mills, forging plants, and mining machinery.
Parameter Table
| Model | YGM1-63-40-300 |
|---|---|
| Type | Double acting |
| Bore | 63mm |
| Rod | 40mm |
| Stroke | 300mm |
| Working Pressure | 16Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of High-Temperature Tolerance YGM1-63-40-300 Metallurgical Hydraulic Cylinder
High-Temperature Tolerance
These cylinders are built to operate in environments reaching up to 700°C using flame-retardant materials and specialized cooling systems.
High Precision
Equipped with internal measuring systems, they can maintain positioning accuracy within hundredths of a millimeter, which is critical for consistent sheet metal thickness in rolling mills.
Reduced Maintenance
Many models feature convenient disassembly designs and advanced surface treatments that reduce scuffing and friction, extending the lifespan of seals by up to 60%.
Applications
Widely used in rolling mills,continuous casting machines,metallurgical furnaces,scrap processing.
FAQ
FOB, CFR, CIF.
Our products feature high performance, higher cost performance and durability.
20days (standard), 20-35 days for custom orders.
Yes, 12-month warranty, lifetime tech support.
Of course you can,You need to provide the relevant authorization for the brand.
