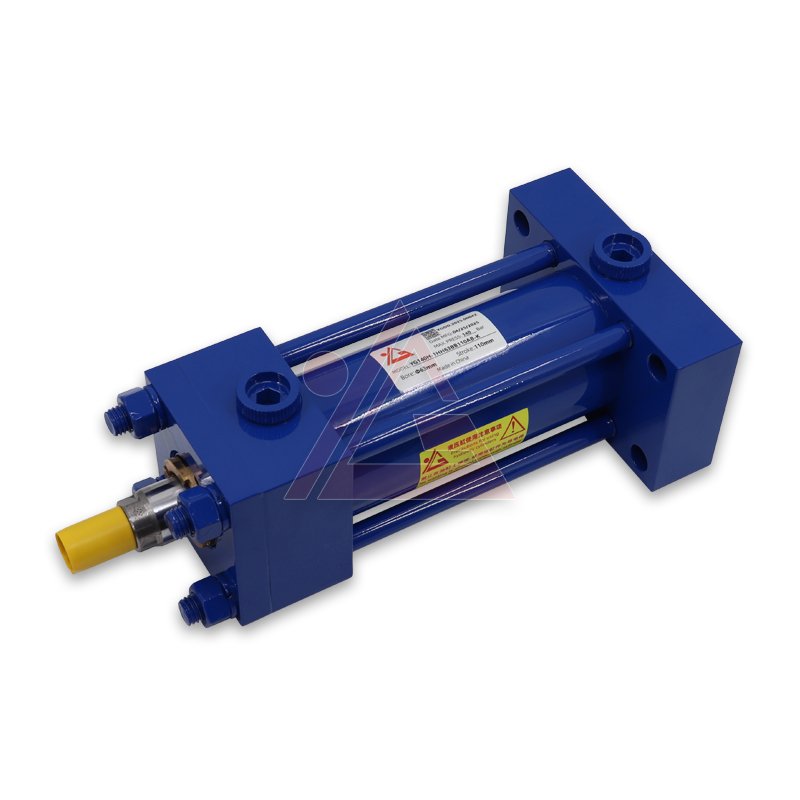

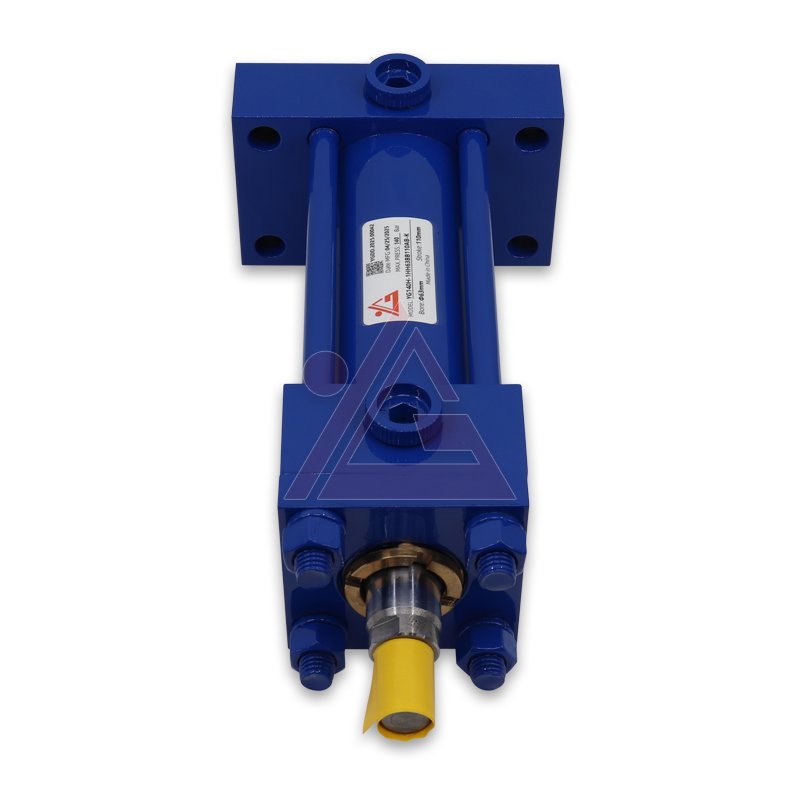

What is Highly Versatile YG140H-1HH63BB110AB-K Tie-Rod Hydraulic Cylinder
The YG140H-1HH63BB110AB-K is a heavy duty, double acting tie rod hydraulic cylinder. It is rated for 14Mpa continuous working pressure. The tie rod construction allows for straightforward maintenance and easy disassembly compared to welded alternatives.
Video
Parameter Table
| Model | YG140H-1HH63BB110AB-K |
|---|---|
| Type | Double acting |
| Bore | 63mm |
| Rod | 36mm |
| Stroke | 110mm |
| Working Pressure | 14Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Highly Versatile YG140H-1HH63BB110AB-K Tie-Rod Hydraulic Cylinder
Highly Versatile Mounting
Tie rod cylinders are built to standard dimensions, making them highly interchangeable with various mounts.
Superior Force Control
As a double acting cylinder, it provides powered force in both extending and retracting directions, offering excellent operational control.
Structural Durability
The use of high tensile steel tie-rods secures the end caps tightly, preventing stretching under heavy hydraulic loads.
Applications
Widely used in industrial machinery, mobile machinery, offshore and marine.
FAQ
We will use plywood carton for packing.
Yes, we can produce by your samples or technical drawings.
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
You can first contact us and inform us of the product specifications, model or drawings you desire. We will provide you with a quote and confirm the transportation method as soon as possible. Subsequently, we will draft the order for you. Please confirm the order amount and make the payment.
Yes! We specialize in customized hydraulic cylinders – provide your requirements (e.g., bore size, stroke length, mounting style, pressure rating) and we'll design a solution tailored to your needs.
