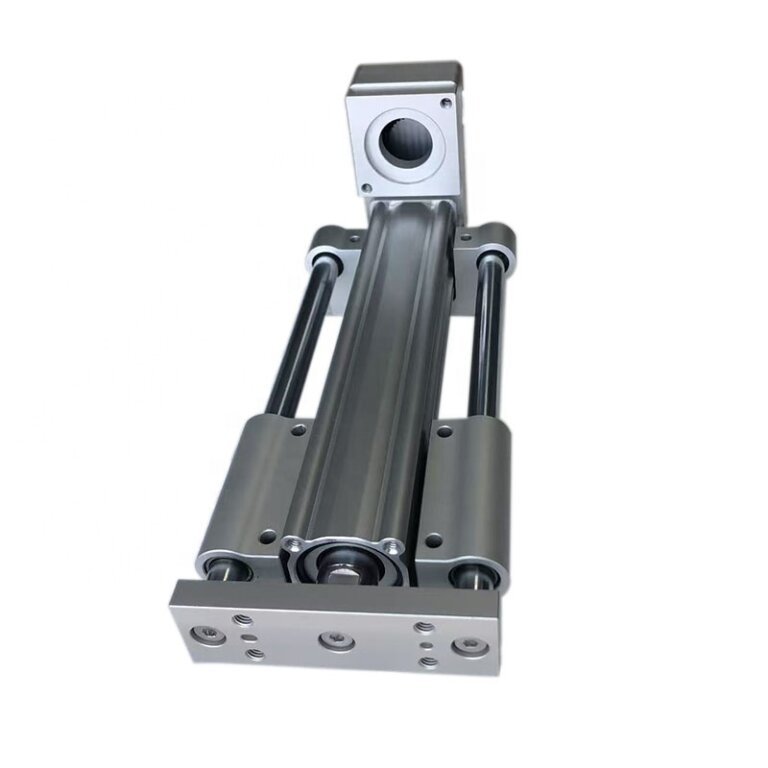

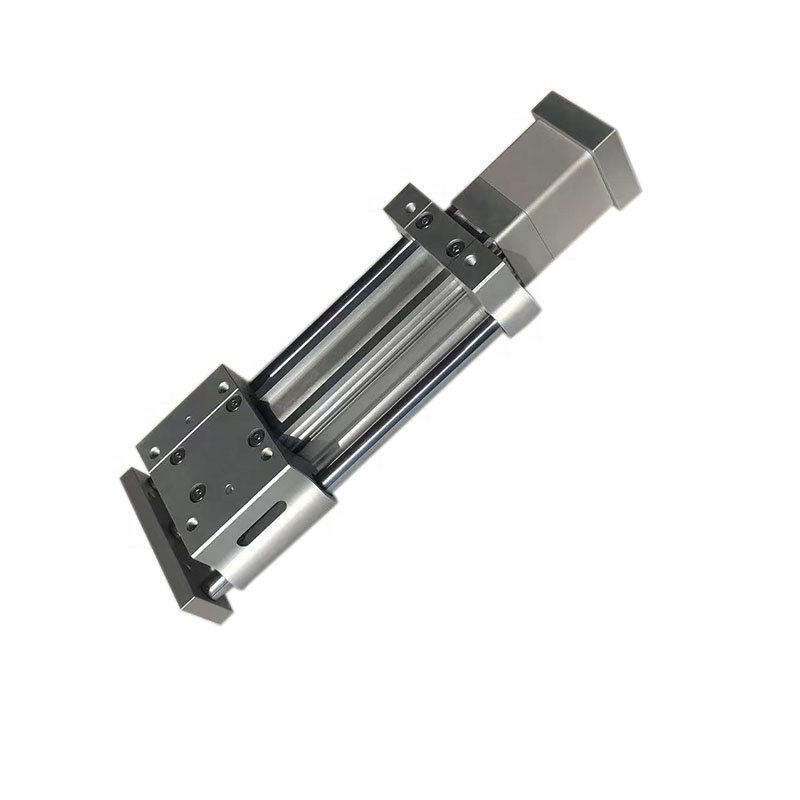

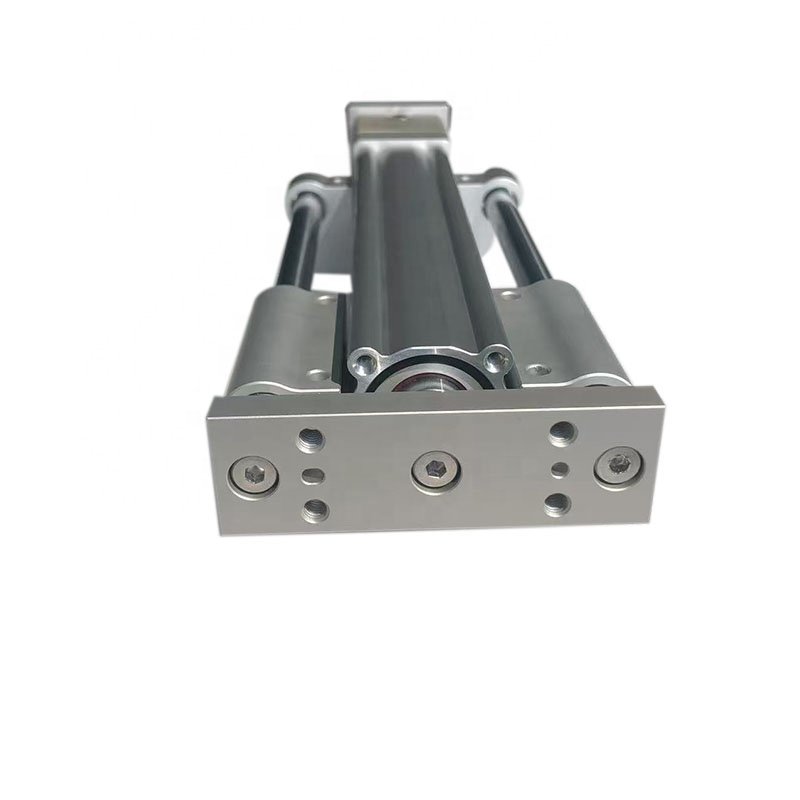

What is LEYG16-100-C-L2.5-D-ZHC50W-T3 YAGANG High Efficiency Electric Cylinder
An electric cylinder is an electromechanical linear actuator that converts an electric motor’s rotary motion into linear motion using a ball screw or lead screw drive system .
Parameter Table
| Model | Custom |
|---|---|
| Type | / |
| Bore | Custom |
| Rod | Custom |
| Stroke | Custom |
| Working Pressure | Custom |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
| Body material | Stainless Steel |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of LEYG16-100-C-L2.5-D-ZHC50W-T3 YAGANG High Efficiency Electric Cylinder
Zero Hydraulic Infrastructure
Eliminates compressors, dryers, reservoirs, hoses, and pumps—slashing installation space and removing leak risks entirely.
Micro Precision Positioning
Achieves ±0.01–0.002 mm repeatability and mid-stroke control, impossible with pneumatic cylinders that only position accurately at stroke ends.
Ultra Long Cycle Life
Delivers >100–200 million cycles with predictive maintenance alerts, far exceeding pneumatic cylinders rated at 10–20 million cycles.
Applications
Widely used in industrial machinery, precision manufacturing, medical equipment, and heavy duty industrial applications.
FAQ
Give us the correct nameplate photo with model number or drawing,We will provide you with the drawings based on the information you have provided for your confirmation.
The material of the cylinder barrel commonly used by our company is 40CrMn honed tube ,while the magnetic cylinder uses 304 material for the cylinder barrel.
In-house QC team makes Strict inspections at each production stage.
Absolutely! We welcome client visits and audits. Contact us to arrange a tour.
Standard: 16-25MPa. High-pressure models: up to 35MPa (with 42CrMo alloy).
