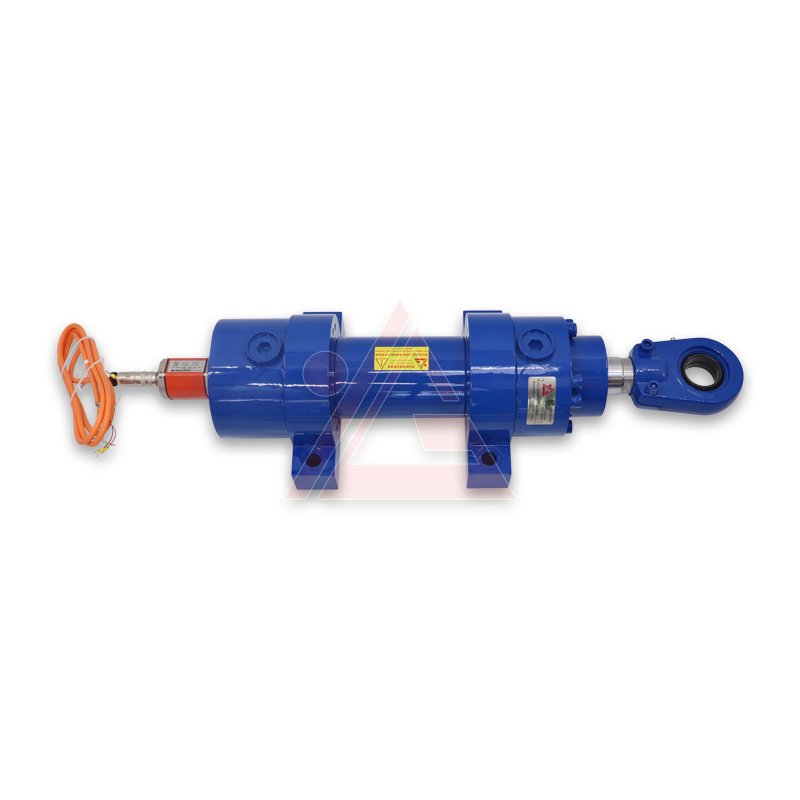

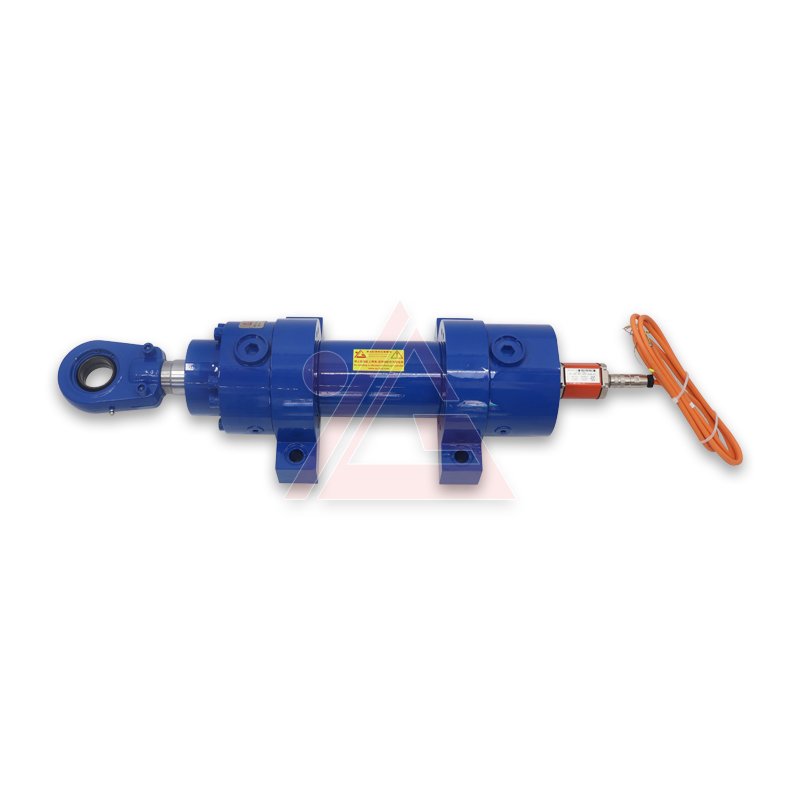

What is Precise Positioning YSH1MS2-80-45-150A3X Metallurgical Hydraulic Cylinder
The YSH1MS2-80-45-150A3X is a heavy-duty, double-acting metallurgical hydraulic cylinder featuring an 80 mm bore, 45 mm piston rod, and 150 mm stroke. Built for demanding industrial applications, it delivers robust pushing and pulling forces under high-pressure conditions.
Video
Parameter Table
| Model | YSH1MS2-80-45-150A3X |
|---|---|
| Type | Double acting |
| Bore | 80mm |
| Rod | 45mm |
| Stroke | 150mm |
| Working Pressure | 25Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Precise Positioning YSH1MS2-80-45-150A3X Metallurgical Hydraulic Cylinder
Precise Positioning
Digital cylinders utilize integrated sensors (e.g., LVDT, Hall effect) or stepping motors to provide real-time feedback on position and speed, enabling precise automation and sequenced actions.
Sensorless Control
Advanced stepping digital models can achieve high-accuracy positioning without external sensors by using digital stepping units to control load force directly through the valve.
Online Tuning
Parameters like amplitude, frequency, and waveform can be adjusted online without shutting down the system, which is critical for continuous casting processes in steel plants.
Applications
Widely used in continuous casting,rolling mills,metal pressing.
FAQ
We are a direct manufacturer with our own factory located in Xiamen,China. We oversee the entire production process to ensure quality control and competitive pricing.
Yes. We offer: Factory photos/videos (production lines, facilities, etc.).Business licenses and certifications (e.g., ISO, CE,Yagang brand registration). Audit reports (third-party or client-conducted).
Monthly output 400PCS, our products & service cover 20+ countries and regions.
The cylinders are manufactured by advanced equipment and made under strictly quality control processing.The steel is tempered and all raw materials are good quality from world famous companies.Competitive price!
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
