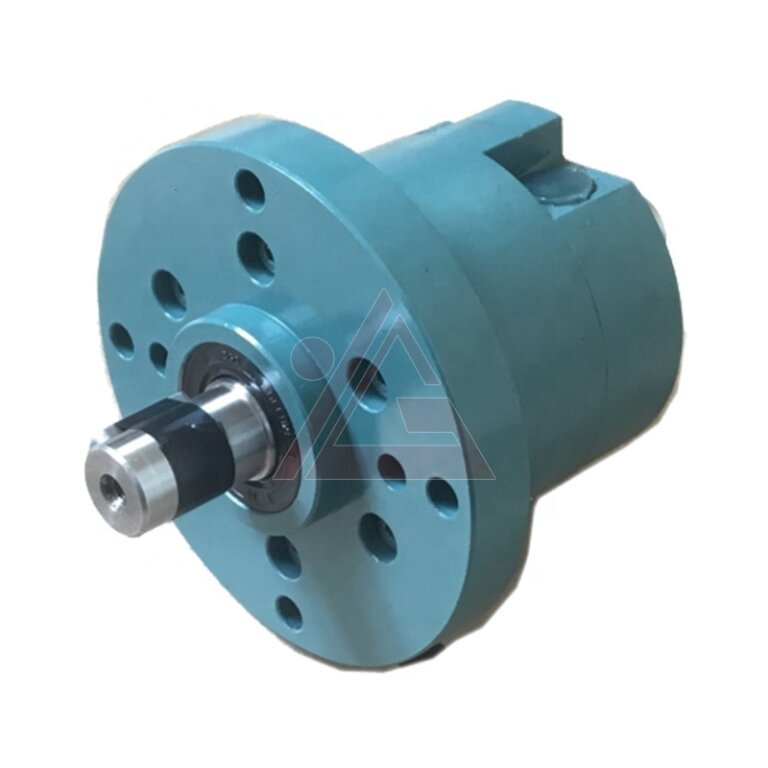

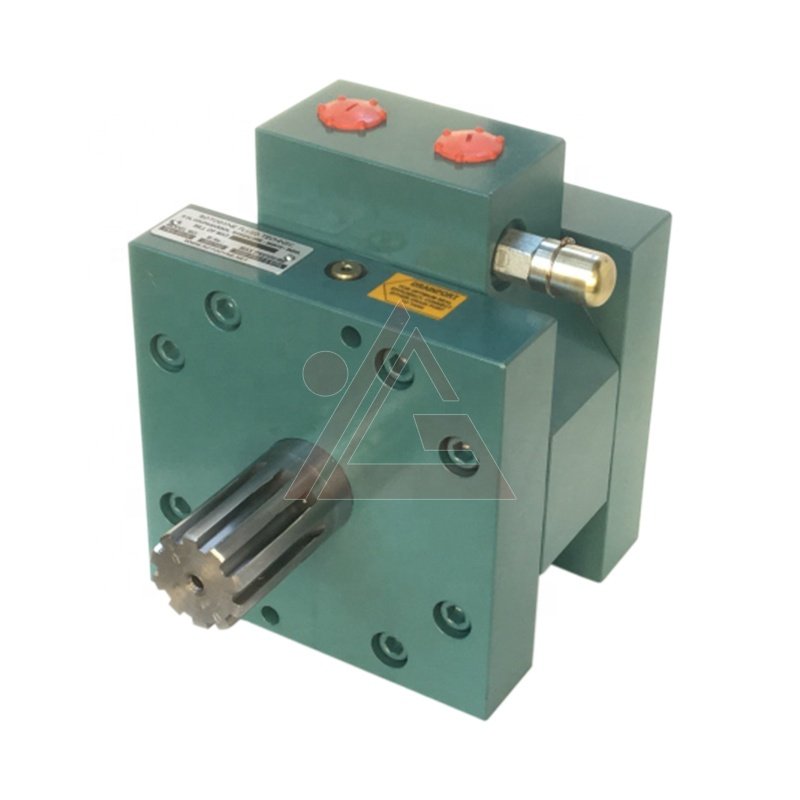

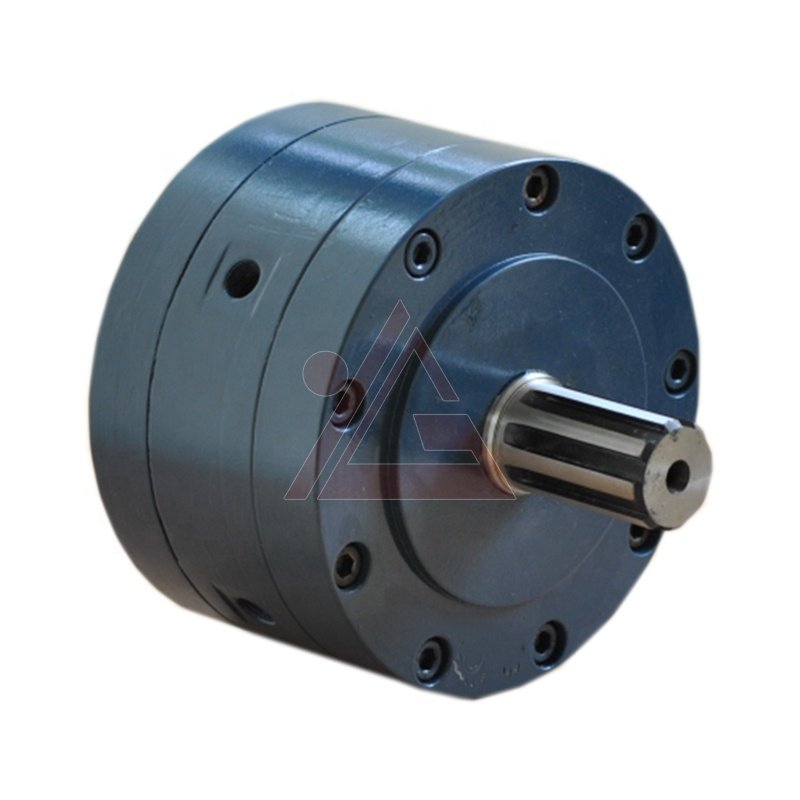

What is Precision Vane Type Rotary Actuator for Automation and Robotics
Vane type rotary actuator generates rotational motion through direct fluid pressure acting on vanes attached to a central shaft, offering a compact, lightweight design with fast response times, zero backlash, and smooth operation for applications requiring up to 270° rotation in industrial automation, robotic joints, and material handling systems.
Parameter Table
| Model | Custom |
|---|---|
| Type | / |
| Bore | Custom |
| Rod | Custom |
| Stroke | 1-1800mm |
| Working Pressure | 21MPa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Precision Vane Type Rotary Actuator for Automation and Robotics
Faster Response Times
Direct fluid pressure on vanes enables near-instantaneous rotation, significantly outperforming gear-driven rack-and-pinion actuators in speed-critical applications
Extremely Compact & Lightweight
Simple vane-in-housing design eliminates bulky gear mechanisms, saving valuable space and reducing weight for easy integration into tight spots.
Cost-Effective Simplicity
Fewer precision components lower manufacturing costs, offering a more economical solution compared to complex gear-type actuators.
Applications
Widely used in industrial machinery, material handling systems, packaging and assembly machinery, and robotic joints and manipulators.
FAQ
FOB, CFR, CIF.
We have 3 production lines and can produce more than 4,00 hydraulic products every day.
We will use plywood carton for packing.
Monthly output 400PCS, our products & service cover 20+ countries and regions.
Of course, every one of our orders can be delivered to the customers on time.
