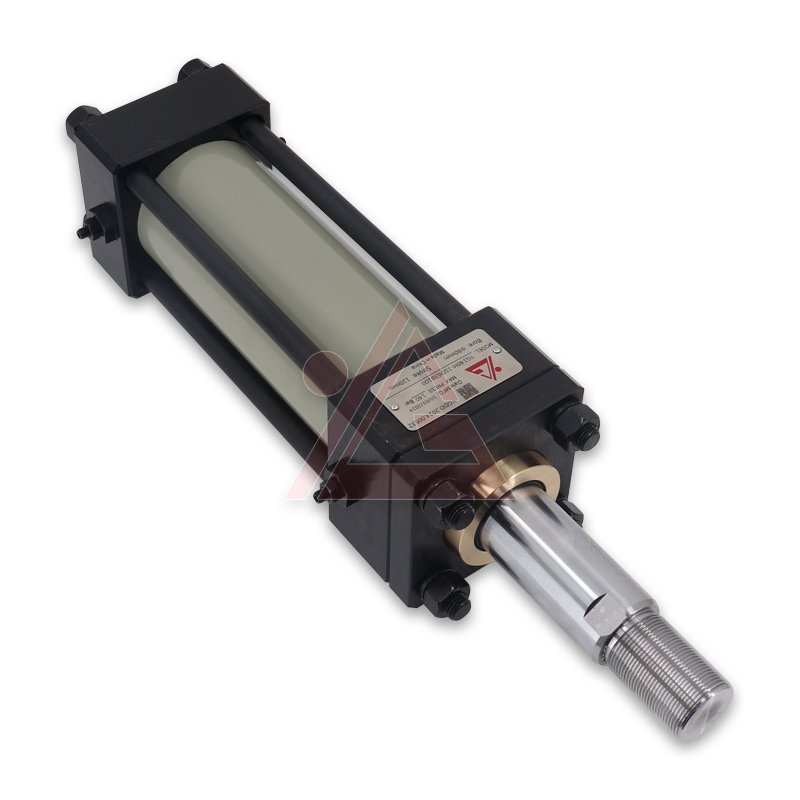

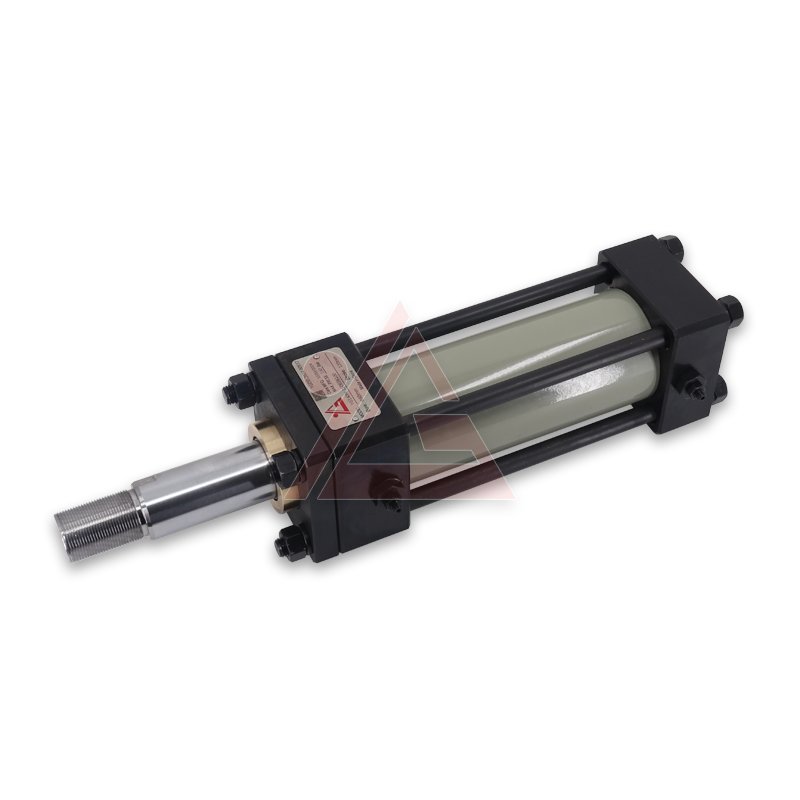

What is Readily Available YG140H-1SD63B100 Tie-Rod Hydraulic Cylinder
The YG140H-1SD63B100 is a heavy duty, standard tie rod hydraulic cylinder. It is engineered primarily for precision control and durability in high pressure industrial manufacturing, processing, and machinery applications.
Video
Parameter Table
| Model | YG140H-1SD63B100 |
|---|---|
| Type | Double acting |
| Bore | 63mm |
| Rod | 36mm |
| Stroke | 100mm |
| Working Pressure | 14Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Readily Available YG140H-1SD63B100 Tie-Rod Hydraulic Cylinder
High Strength Durability
Equipped with a hard chrome plated piston rod and high tensile tie rods, this cylinder resists stretching and can withstand the rigorous pressures typically required for demanding push and pull tasks.
Modular Versatility
The tie rod design offers exceptional flexibility in mounting and port configurations, making it adaptable to changing machine geometries and diverse operational needs.
Standardized Dimensions
Many tie-rod cylinders follow standardized dimensions, allowing for straightforward interchangeability with cylinders from other manufacturers.
Applications
Widely used in industrial machinery, material handling,agricultural ,mobile machinery ,general automation.
FAQ
1pc.
20days (standard), 20-35 days for custom orders.
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
Give us the correct nameplate photo with model number or drawing,We will provide you with the drawings based on the information you have provided for your confirmation.
The material of the cylinder barrel commonly used by our company is 40CrMn honed tube ,while the magnetic cylinder uses 304 material for the cylinder barrel.
