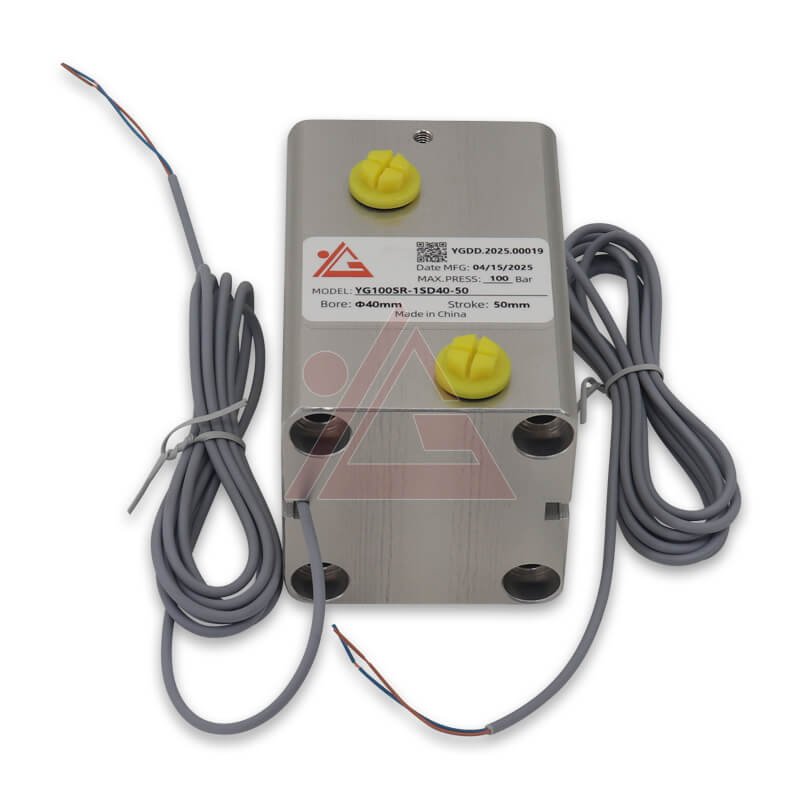

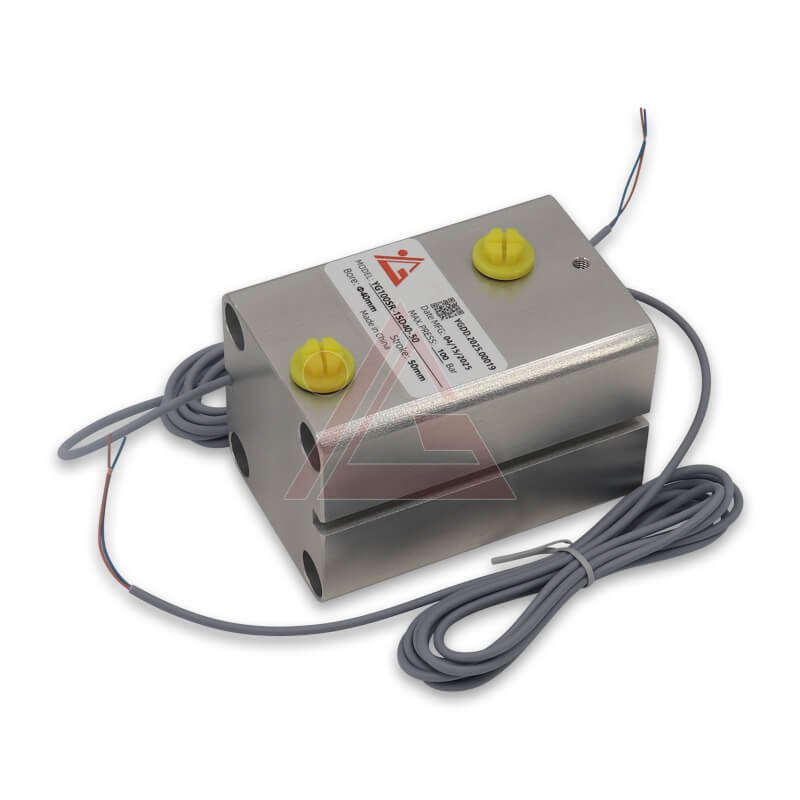

What is Versatile Integration YG100SR-1SD40-50 Compact Hydraulic Cylinder
A magnetic compact hydraulic cylinder is a specialized actuator designed for tight installations that require electronic position sensing.They are optimized for installations with limited space, offering high force output relative to their size Constructed from high-quality materials like anodized aluminum or steel, they are designed to withstand demanding industrial environments.
Video
Parameter Table
| Model | YG100SR-1SD40-50 |
|---|---|
| Type | Double acting |
| Bore | 40mm |
| Rod | 22mm |
| Stroke | 50mm |
| Working Pressure | 10Mpa |
| Tube | 45# Steel |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Versatile Integration YG100SR-1SD40-50 Compact Hydraulic Cylinder
Reduced Maintenance
The non-contact nature of magnetic sensing eliminates the need for mechanical switches or internal rods that are prone to wear or failure, while robust materials like chrome-plated steel or aluminum alloy resist corrosion.
Extreme Space Efficiency
Their "compact" design features a reduced overall body length compared to standard cylinders, allowing them to fit into tight machinery layouts like injection molds or robotic tooling.
Versatile Integration
Many models support standard mounting styles and are compatible with various electronic sensor outputs , streamlining automation and safety monitoring.
Applications
Widely used in construction equipment, industrial machinery, agricultural vehicles, material handling, and automation systems.
FAQ
Email us. We'll provide pricing, and lead time based on your quantity and customization level.
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
Of course, every one of our orders can be delivered to the customers on time.
FOB, CFR, CIF.
Our products feature high performance, higher cost performance and durability.
