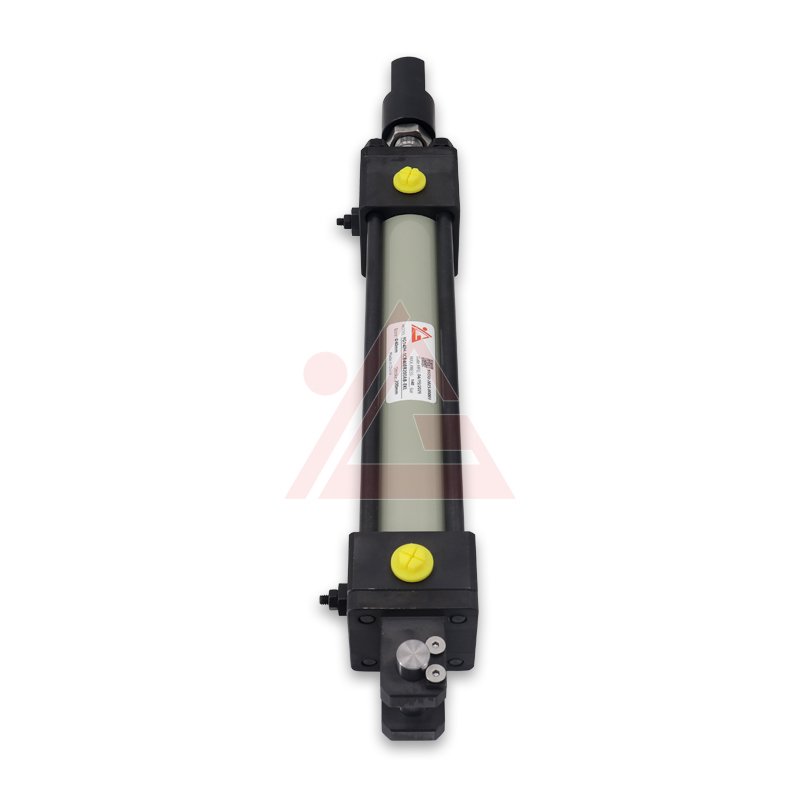

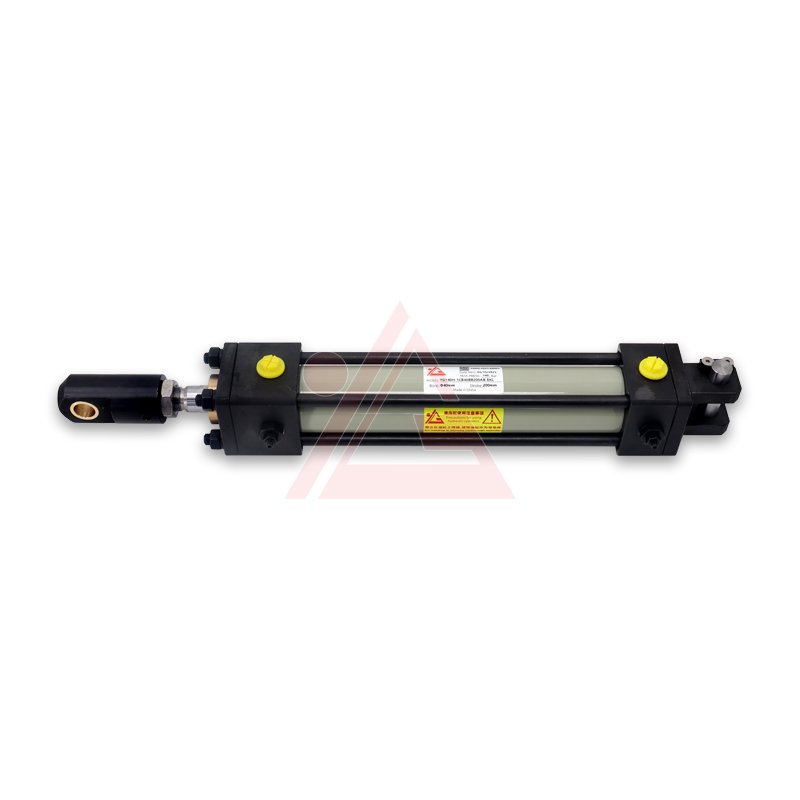

What is Versatile Operation YG140H-1CB40BB200AB-EKL Tie-Rod Hydraulic Cylinder
YG140H-1CB40BB200AB-EKL is a high-performance, double-acting tie-rod hydraulic cylinder designed for industrial automation and machinery. It is commonly associated with YAGANG (Yagang Hydraulic Technology) and frequently features specifications compatible with JIS standards (14MPa or 140 Bar).
Video
Parameter Table
| Model | YG140H-1CB40BB200AB-EKL |
|---|---|
| Type | Double acting |
| Bore | 40mm |
| Rod | 45mm |
| Stroke | 200mm |
| Working Pressure | 14Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Versatile Operation YG140H-1CB40BB200AB-EKL Tie-Rod Hydraulic Cylinder
Durable Construction
Built with precision-honed steel tubing and high-tensile steel tie rods, this cylinder is designed for heavy-duty, continuous operation.
Easy Maintenance
The tie-rod design allows for easy disassembly and repair compared to welded cylinders, allowing for straightforward maintenance.
Versatile Operation
As a double-acting cylinder, it provides powered force in both directions (extending and retracting), offering superior control for applications like steering systems, clamping, or cargo handling.
Applications
Widely used in industrial machinery,material handling,lifting equipment,construction project,agricultural equipment.
FAQ
Yes, We offer,you need to provide the relevant authorization for the brand.
1pc.
The material of the cylinder barrel commonly used by our company is 40CrMn honed tube ,while the magnetic cylinder uses 304 material for the cylinder barrel.
Of course, We will keep track of the order throughout the process and promptly inform you of the production progress.
Of course, every one of our orders can be delivered to the customers on time.
