What is Versatility and Durability Metallurgical Hydraulic Cylinder
Metallurgical hydraulic cylinders are heavy-duty actuators specifically designed to withstand the extreme temperatures, high pressures, and corrosive environments typical of metal processing.
Video
Parameter Table
| Model | YGH1MS2_50_36_75A3X |
|---|---|
| Type | Double acting |
| Bore | 50mm |
| Rod | 36mm |
| Stroke | 75mm |
| Working Pressure | 25Mpa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |

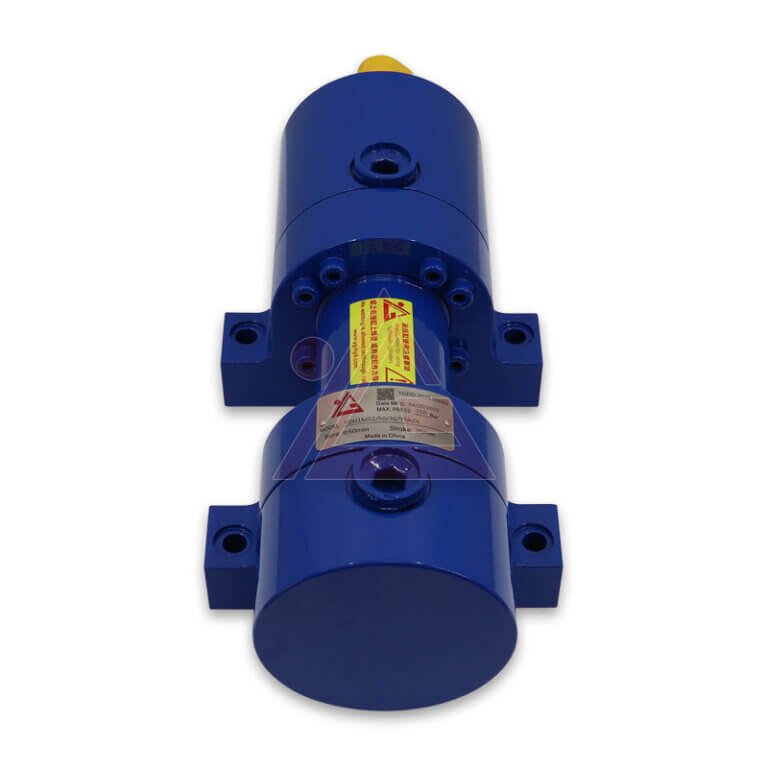

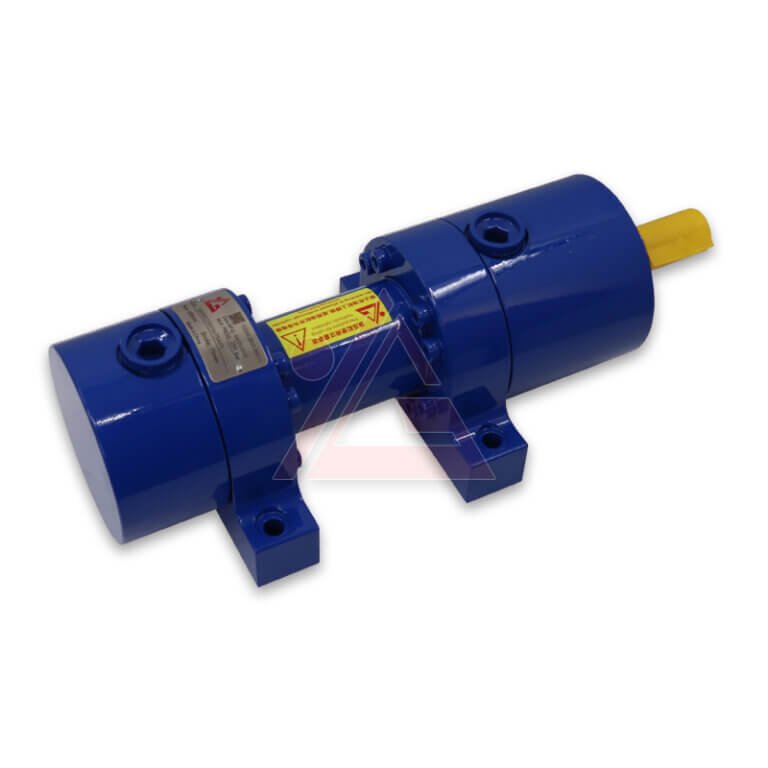

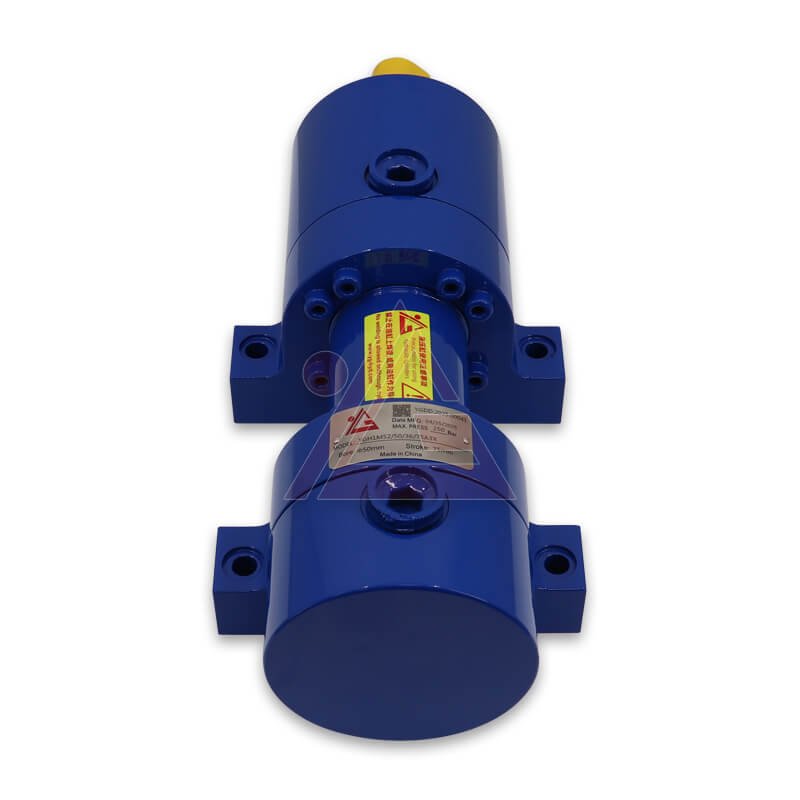

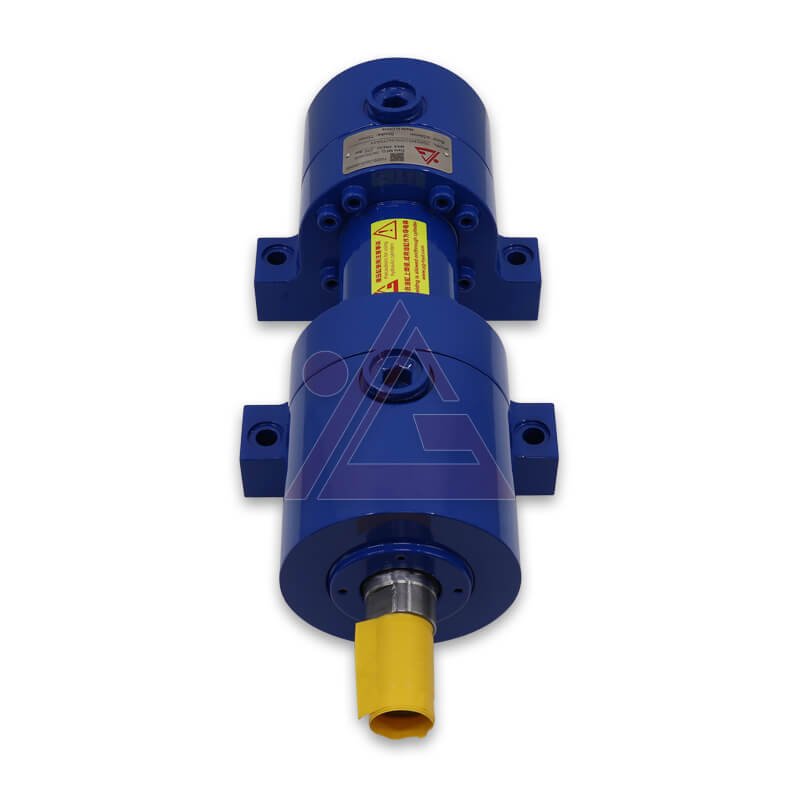

Details of Versatility and Durability Metallurgical Hydraulic Cylinder
Features of Versatility and Durability Metallurgical Hydraulic Cylinder
Robust Sealing
They use "Seal Matrix" configurations that maintain pressure even when exposed to heavy dust, metal slag, and pulverized coal.
Fatigue Resistance
Designed for 24/7 continuous operation, these cylinders are built to resist the high-frequency vibration and impact loads common in smelting and casting lines.
Custom Configurations
They support various mounting types (tail lug, trunnion, or head/tail flange) and can be tailored for specialized tasks like Automatic Gauge Control (AGC) or furnace tilting.
Applications
Widely used in construction equipment, industrial machinery, Machine Tools, Mining & Cement, and Offshore & Marine.
FAQ
We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
Monthly output 400PCS, our products & service cover 20+ countries and regions.
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
Yes, We offer,you need to provide the relevant authorization for the brand.
