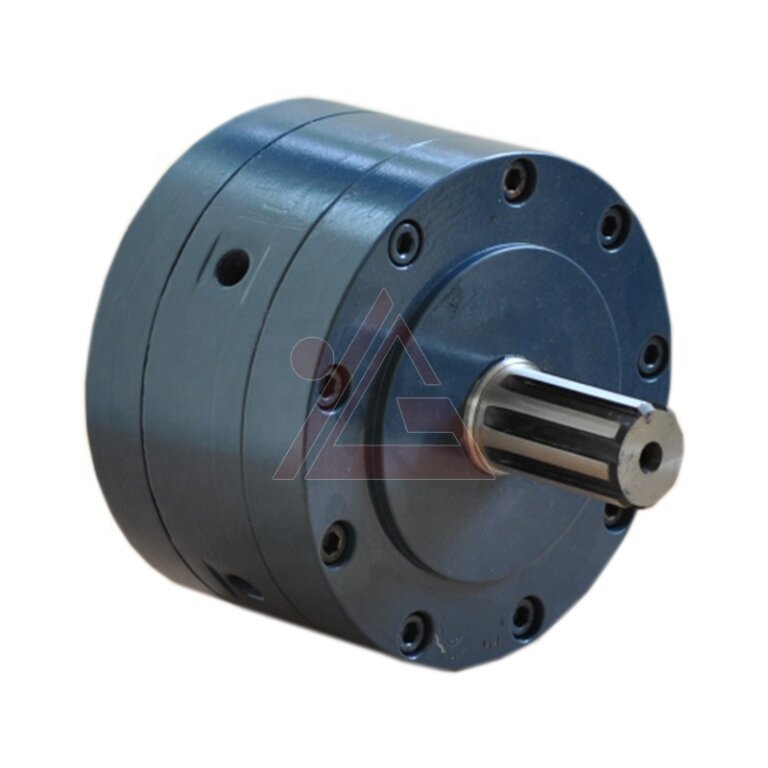

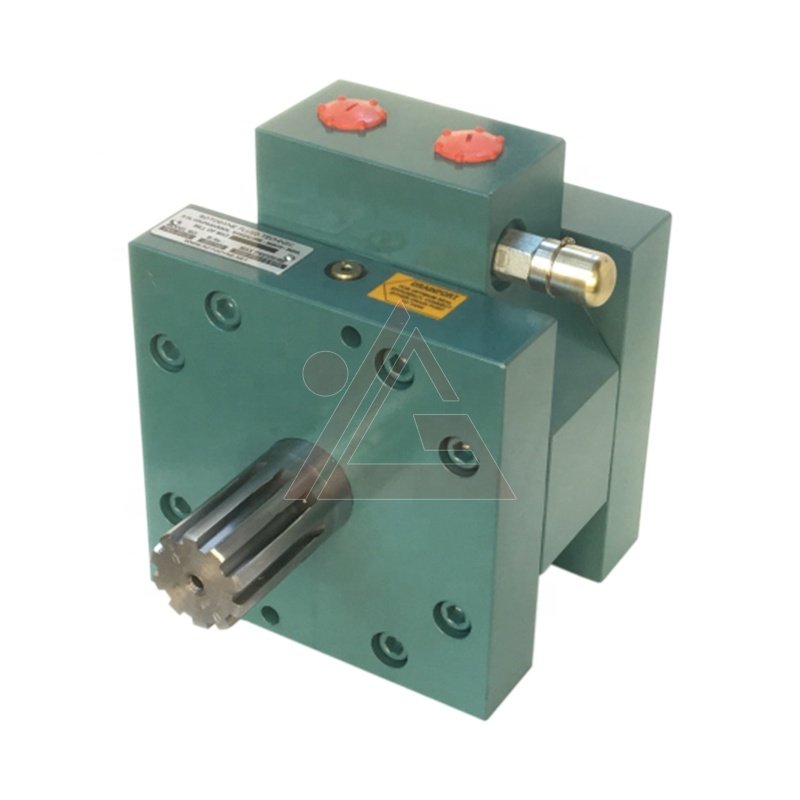

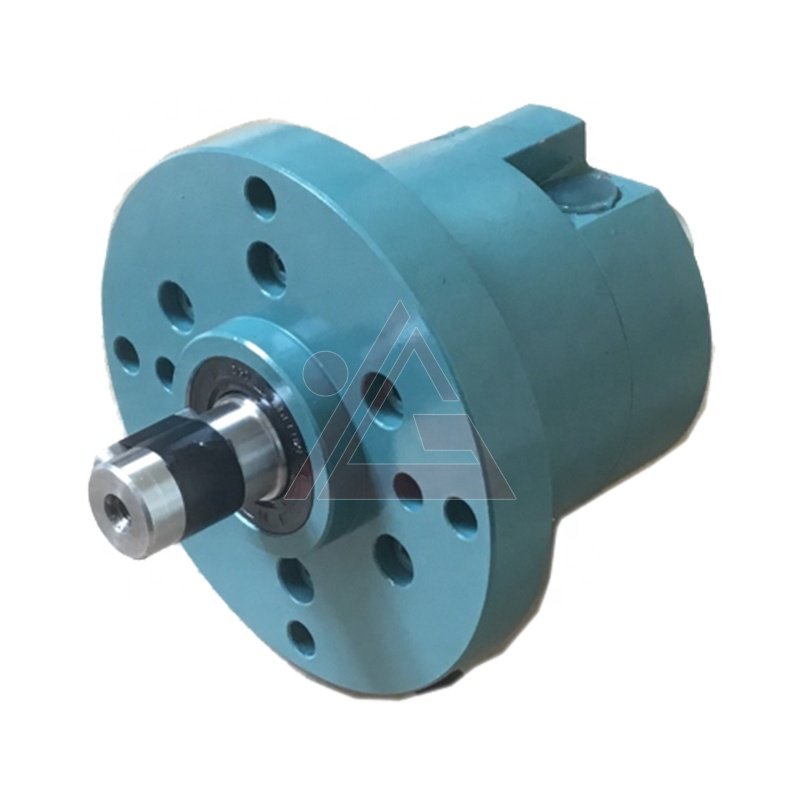

What is Yagang CRB1/CRB1BW Series Vane Type Rotary Actuators
Vane type rotary actuator converts pneumatic pressure into rotational motion via vanes on a central shaft, offering a compact design with integral bearings for load support. CRB1 series provides up to 270° rotation, with double vane models delivering double torque for 90°-100° rotation. Features include flexible porting, internal lubrication, rubber bumpers for smooth stops, and easy sensor integration for automation.
Parameter Table
| Model | Custom |
|---|---|
| Type | / |
| Bore | Custom |
| Rod | Custom |
| Stroke | 1-1800mm |
| Working Pressure | 21MPa |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of Yagang CRB1/CRB1BW Series Vane Type Rotary Actuators
Double Vane High Torque
Double vane models deliver approximately twice the output torque of single vane designs within the same envelope, providing significant power without increasing size.
Faster Response Times
Direct fluid pressure on vanes enables near-instantaneous rotation, significantly outperforming gear-driven mechanisms in speed-critical applications.
Zero Backlash Operation
The direct-drive mechanism inherently eliminates mechanical play, ensuring smooth, precise motion ideal for accurate positioning tasks.
Applications
Widely used in industrial machinery, robotic arm positioning, material handling systems, packaging and assembly machinery, and valve control in manufacturing processes.
FAQ
We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
We mainly produce hydraulic cylinders, hydraulic valves, hydraulic pumps and hydraulic system.
Yes! We specialize in customized hydraulic cylinders–provide your requirements (e.g., bore size, stroke length, mounting style, pressure rating) and we'll design a solution tailored to your needs.
Our products have been exported to the United States, Germany, Japan, South Korea, Brazil and other countries and regions, helping industrial customers worldwide optimize the performance of their hydraulic systems.
Of course, We will keep track of the order throughout the process and promptly inform you of the production progress.
