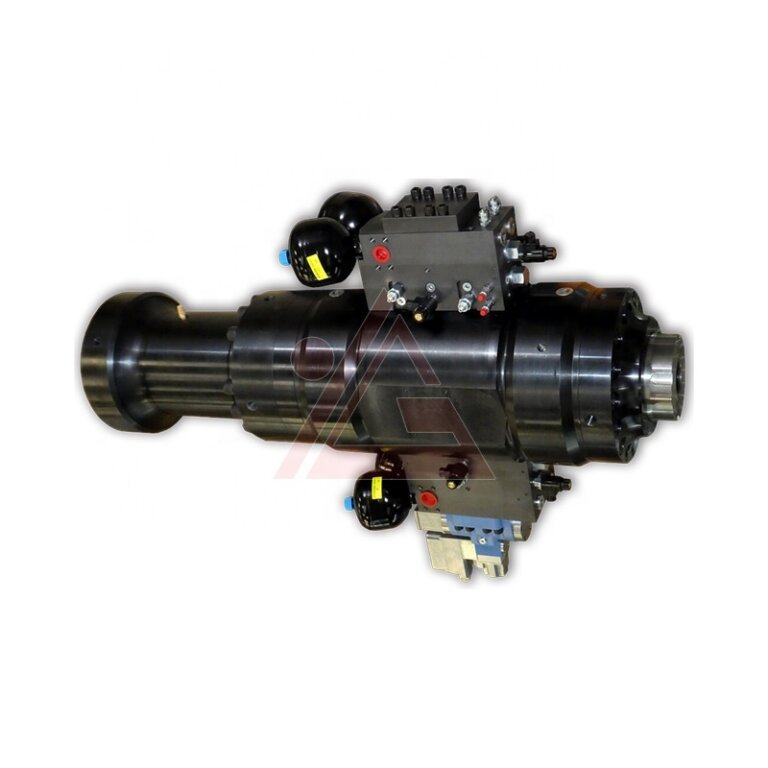

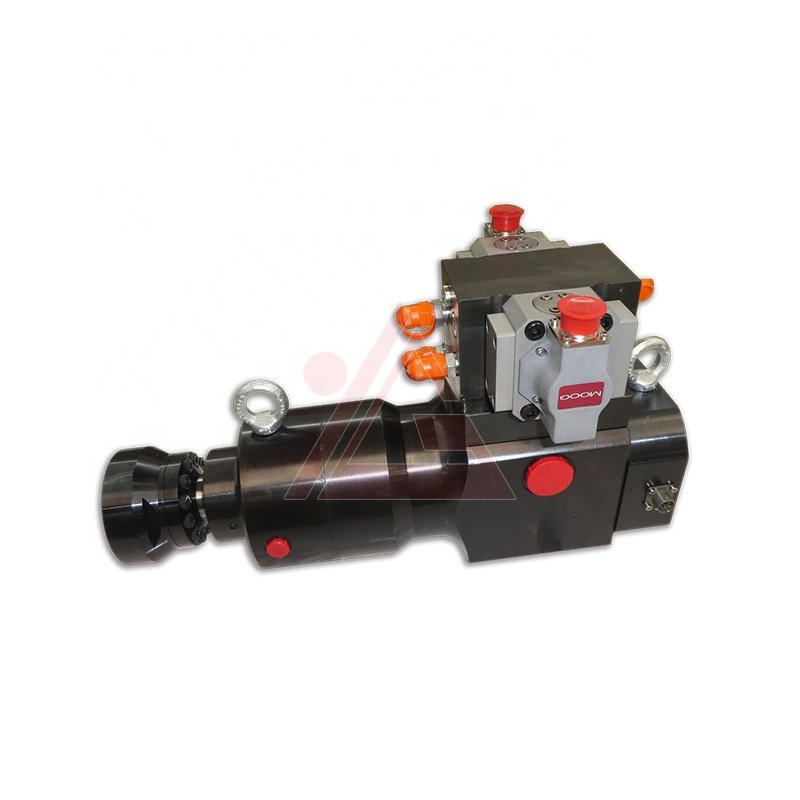

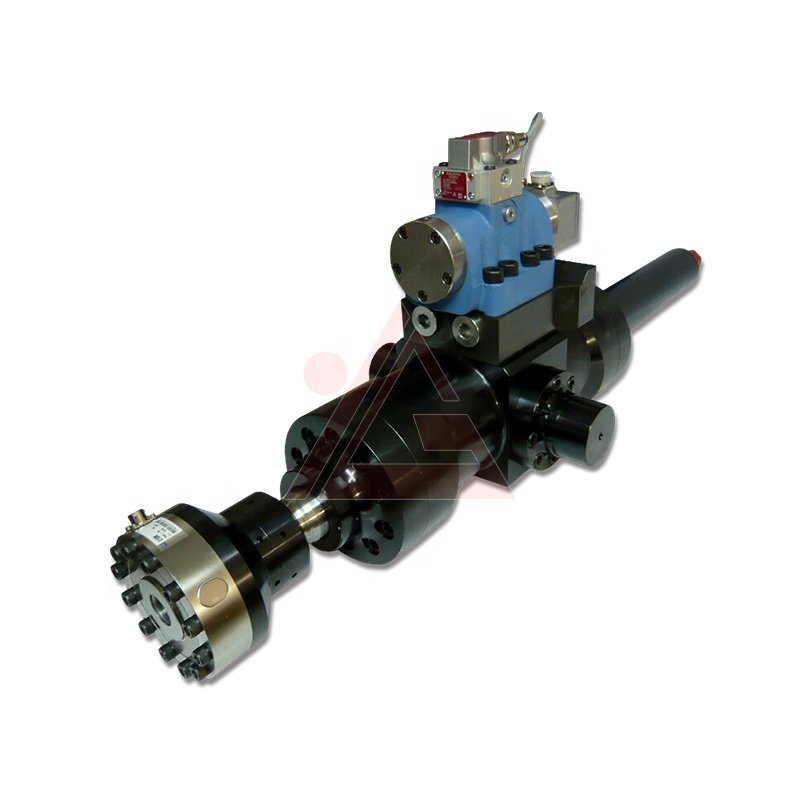

What is YAGANG Double Acting Servo Hydraulic Cylinder
Servo hydraulic cylinder is a precision actuator with closed-loop control for accurate position, force, or velocity regulation, achieving micron-level precision and fast response through advanced design, ideal for dynamic applications like materials testing, aerospace, and industrial automation.
Parameter Table
| Model | Custom |
|---|---|
| Type | Double Acting Cylinder |
| Bore | Custom |
| Rod | Custom |
| Stroke | Custom 1-1800mm |
| Working Pressure | Custom |
| Tube | 40CrMn |
| Piston | 40Cr |
| Rod Surface | Hard Chrome Plating |
| Seal Kit | FKM, NBR |
| Operating Temperature | -40~200°C |
Details of ISO Custom 63mm Double Acting Tie-Rod Hydraulic Cylinder
Features of YAGANG Double Acting Servo Hydraulic Cylinder
Closed-Loop Precision Control
Integrates high-resolution sensors (LVDT, magnetostrictive) and servo valves to achieve micron-level positioning accuracy and millisecond-level response, enabling precise regulation of position, force, or velocity unmatched by standard cylinders.
Superior Dynamic Performance
Engineered with low-friction seals and precision-machined components to deliver high-frequency response (up to 100 Hz) and smooth, stick-free motion essential for demanding applications like materials testing and aerospace actuation.
High Power Density with Precision
Combines the inherent high force and power density of hydraulics with the accuracy of servo control, delivering exceptional force-to-size ratio while maintaining precise motion control.
Applications
Widely used in industrial machinery, automotive manufacturing, aerospace testing and actuation, medical equipment, and mining and cement.
FAQ
hydraulic cylinder, hydraulic valve, hydraulic pumps.
You can first contact us and inform us of the product specifications, model or drawings you desire. We will provide you with a quote and confirm the transportation method as soon as possible. Subsequently, we will draft the order for you. Please confirm the order amount and make the payment.
We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
1pc.
The material of the cylinder barrel commonly used by our company is 40CrMn honed tube ,while the magnetic cylinder uses 304 material for the cylinder barrel.
