Standard hydraulic cylinders work well for many applications, but sometimes your equipment demands a unique solution. That is where Custom Hydraulic Cylinder Manufacturers come in. They design and build cylinders tailored exactly to your machine’s dimensions, performance requirements, and environmental conditions. Understanding what these specialists can do helps you avoid costly modifications or performance compromises. For general selection advice, see our guide on How to Choose Reliable Hydraulic Cylinder Manufacturers.
1. Design to Your Exact Mounting and Porting
One of the primary services of Custom Hydraulic Cylinder Manufacturers is creating cylinders that fit your existing mounting brackets, pin sizes, and port locations. Off-the-shelf cylinders often require adapters or bracket modifications. A custom cylinder eliminates those extra parts. Whether you need a heavy duty hydraulic cylinder with a special clevis mount or a compact hydraulic cylinder for a tight machine envelope, custom manufacturers deliver exactly what you specify.
2. Tailored Stroke Length and Bore Size
Not every machine can use standard stroke lengths or bore diameters. Custom Hydraulic Cylinder Manufacturers can produce any stroke from a few inches to several meters. They can also adjust the bore size to achieve the precise force output you need – not too much (wasting energy) and not too little (risking failure). This flexibility is especially valuable for a high pressure hydraulic cylinder where every millimeter affects strength.
3. Special Rod Coatings and Materials
Corrosive environments, abrasive dust, or extreme temperatures demand special surface protection. Custom Hydraulic Cylinder Manufacturers offer options such as hard chrome, nickel-chromium, ceramic, or even stainless steel rods. They can also select barrel materials like carbon steel, stainless steel, or aluminum. For example, a marine hydraulic cylinder needs saltwater-resistant coatings, while a mining hydraulic cylinder requires extra-hard rods to resist impact damage.
4. Unique Seal Materials and Configurations
Standard seals may fail in aggressive fluids or temperature extremes. Custom manufacturers can equip your cylinder with seals made of Viton, polyurethane, PTFE, or other specialty compounds. They can also configure double wipers, tandem seals, or water-cooled glands. A high temperature hydraulic cylinder for steel mill service, for instance, needs heat-resistant seals that standard suppliers don’t stock.
5. Integrated Sensors and Position Feedback
Modern machines often require closed-loop control. Custom Hydraulic Cylinder Manufacturers can integrate linear transducers (magnetostrictive or potentiometer), proximity switches, or pressure sensors directly into the cylinder body. This eliminates external mounting brackets and protects sensors from damage. A precision hydraulic cylinder used in CNC press brakes or injection molding machines benefits greatly from this integration.

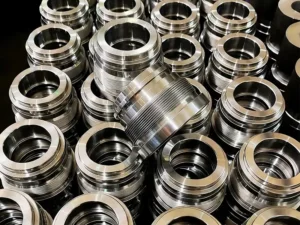

6. Custom Port Threads and Fittings
If your existing hydraulic system uses non-standard ports (e.g., BSP, metric, or SAE with special angles), custom manufacturers can machine exactly those threads. They can also add manifold mounting surfaces or integrate cartridge valves into the cylinder body. This reduces external plumbing and leak points. A tie rod hydraulic cylinder with custom ports is common in retrofitting projects.
7. Prototyping and Low-Volume Production
Unlike mass producers, Custom Hydraulic Cylinder Manufacturers welcome small batch sizes. They can build one prototype, test it, and then produce as few as five or ten units. This is ideal for equipment rebuilders, specialty machine builders, or research projects. They also offer rapid turnaround for emergency replacements when a replacement hydraulic cylinder with odd dimensions is needed.
8. Reverse Engineering and Obsolete Cylinder Replacement
When an original cylinder is no longer available, custom manufacturers can reverse-engineer it. They measure the old cylinder (or provide detailed drawings) and build an exact duplicate. This service is invaluable for aging machinery. A large hydraulic cylinder for a vintage press or a telescopic hydraulic cylinder for an old dump truck can be recreated with modern materials and seals.
9. Performance Testing and Certification
Reputable Custom Hydraulic Cylinder Manufacturers test every custom cylinder before shipping. They perform pressure tests, cycle tests, and leakage checks. They can also provide certification to API, ABS, DNV, or other standards if required. A high quality hydraulic cylinder from a custom shop comes with documented proof of performance.
10. Ongoing Engineering Support
After delivery, good custom manufacturers offer support: installation advice, troubleshooting, and future modifications. They keep records of your cylinder’s design, so ordering a spare or a modified version years later is easy. This long-term partnership is a key advantage over buying from anonymous mass suppliers.
Conclusion
Custom Hydraulic Cylinder Manufacturers solve problems that standard catalog cylinders cannot. They offer tailored mounting, stroke, bore, rod coatings, seal materials, sensor integration, custom ports, prototyping, reverse engineering, testing, and ongoing support. Whether you need a heavy duty hydraulic cylinder, compact hydraulic cylinder, high pressure hydraulic cylinder, marine hydraulic cylinder, mining hydraulic cylinder, or high temperature hydraulic cylinder, a custom manufacturer can build it to your exact needs. For foundational guidance on selecting a partner, revisit How to Choose Reliable Hydraulic Cylinder Manufacturers. Investing in a custom cylinder today prevents performance compromises and costly downtime tomorrow.
