The mining industry operates in some of the harshest environments on earth – extreme dust, shock loads, temperature swings, and abrasive materials. To survive these conditions, mining equipment relies on Heavy-Duty Hydraulic Cylinders that are built to withstand continuous punishment. From excavating ore to hauling overburden, these cylinders convert hydraulic pressure into the brute force needed to move tons of rock. In this guide, we will explore how mining applications demand and utilize Heavy-Duty Hydraulic Cylinders across different machines.
1. Why Mining Requires Heavy-Duty Hydraulic Cylinders
Standard hydraulic cylinders fail quickly in mines. The combination of high pressure (often over 5,000 psi), constant vibration, and abrasive dust destroys ordinary seals and rods. Heavy-Duty Hydraulic Cylinders feature thicker barrel walls, hardened chrome rods, heavy-duty bearings, and specially formulated seals. They are designed for millions of cycles without failure. For example, a hydraulic cylinder for mining excavator must endure sudden shock loads when the bucket hits rock, plus side forces during trenching.
2. Excavators – The Workhorses of Open-Pit Mining
Large hydraulic excavators are the backbone of surface mining. Their booms, sticks, and buckets are powered by multiple Heavy-Duty Hydraulic Cylinders. The boom cylinder lifts the entire front attachment; the stick cylinder extends and retracts the arm; the bucket cylinder curls and dumps material. A hydraulic cylinder for mining excavator typically has a bore diameter of 200–400 mm and can generate hundreds of tons of force. These cylinders must also resist bending moments when the bucket digs sideways.
3. Underground Mining – LHD Loaders
In underground hard-rock mining, LHD (Load-Haul-Dump) machines are essential. They load ore from drawpoints, haul it through narrow drifts, and dump into ore passes. The lift and tilt functions rely on Heavy-Duty Hydraulic Cylinders. A hydraulic cylinder for underground mining LHD must fit compact spaces yet deliver high force. Underground conditions add challenges like limited ventilation (heat buildup) and corrosive groundwater. Cylinders for LHDs often use stainless steel rods and specialized wipers to keep dust out.
4. Haul Trucks and Dump Trucks
Mining dump trucks carry payloads of 100 to 400 tons. The hoist cylinder that lifts the dump body is one of the largest Heavy-Duty Hydraulic Cylinders in any industry. A hydraulic cylinder for mining dump truck and haul truck is typically a telescopic design with multiple stages. When the driver engages the hoist, the cylinder extends stage by stage, raising the body to dump material. These cylinders must operate reliably in extreme temperatures (from -40°C to +50°C) and resist corrosion from acidic ores.
5. Telescopic Cylinders for Long Reach
Some mining applications require very long stroke in a compact retracted length. Heavy-Duty Hydraulic Cylinders with telescopic stages are ideal for dump bodies, conveyor tensioning, and certain roof supports. A telescopic hydraulic cylinder for mining may have three, four, or even five stages. Each stage must seal perfectly against high pressure while sliding smoothly. Telescopic cylinders are also used in mobile stackers and reclaimers.
6. Mining Shovels – Power and Precision
Electric rope shovels and hydraulic shovels are used in large scale surface mining. Hydraulic shovels use multiple Heavy-Duty Hydraulic Cylinders for crowd, hoist, and tilt functions. A hydraulic cylinder for mining shovel must provide both high breakout force and fine control to avoid damaging the truck body. These cylinders often incorporate cushioning at the end of stroke to reduce impact. They also have sacrificial wear bands to protect the barrel from side loading.
7. Draglines – Pulling Millions of Tons
Draglines are among the largest land-based machines. They use a bucket suspended from a boom to remove overburden. While draglines are usually electrically powered, they still use Heavy-Duty Hydraulic Cylinders for ancillary functions such as fairlead adjustment, boom hoist (on some models), and walking mechanism (on crawler draglines). A hydraulic cylinder for dragline must operate in dusty, high-vibration environments and be serviceable in the field. These cylinders are often custom built with extra thick chrome and heavy-duty seals.
8. Maintenance Challenges and Choosing a Reliable Supplier

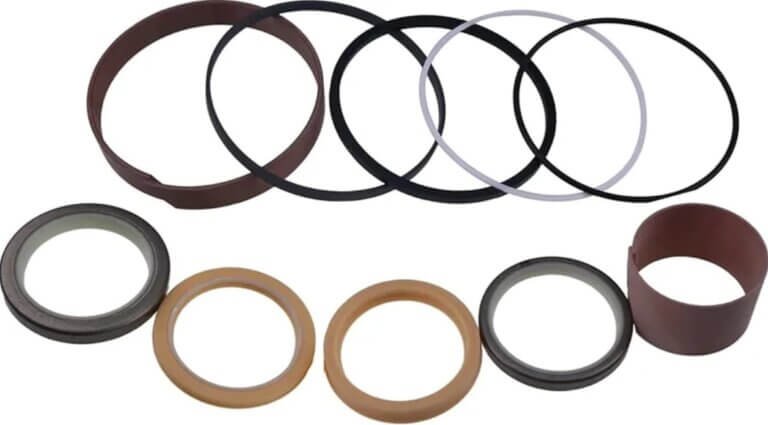

Mining operators face unique maintenance issues with Heavy-Duty Hydraulic Cylinders. Dust and grit quickly wear rod seals if wipers are damaged. Contaminated hydraulic fluid (water, silica particles) accelerates internal wear. Regular inspection of rod surfaces, seal condition, and mounting pins is critical. Many mines schedule cylinder rebuilds based on operating hours rather than waiting for failure. Using high quality Heavy-Duty Hydraulic Cylinders from a reputable manufacturer such as Yagang hydraulic cylinder factory reduces unplanned downtime and ensures long service life.
9. Material and Design Features
What makes a cylinder “heavy duty” for mining? Key features include:
Induction hardened or nitrided rods for scratch resistance
PTFE filled wear rings to handle side loads
Double wipers to keep dust out
High strength alloy steel barrels
Corrosion resistant coatings (zinc nickel, hard chrome)
Conclusion
The mining industry simply could not function without Heavy-Duty Hydraulic Cylinders. From hydraulic cylinder for mining excavator and hydraulic cylinder for underground mining LHD to hydraulic cylinder for mining dump truck and haul truck, telescopic hydraulic cylinder for mining, hydraulic cylinder for mining shovel, and hydraulic cylinder for dragline, these components provide the muscle for digging, lifting, dumping, and hauling. Understanding how mining uses Heavy-Duty Hydraulic Cylinders helps engineers specify the right cylinders and maintenance teams keep them running. When extreme conditions demand extreme reliability, heavy-duty designs from a trusted factory are the only choice.
