The marine and offshore industry operates in one of the most corrosive and demanding environments on earth. Saltwater, extreme waves, high winds, and heavy loads challenge every component on a vessel or offshore platform. A Hydraulic Cylinder used in these conditions must resist rust, withstand shock loads, and provide reliable linear motion for critical operations. From steering ships to lifting drilling rigs, Hydraulic Cylinder technology is indispensable. In this guide, we will explore key applications where Hydraulic Cylinder systems power marine and offshore equipment.
1. Offshore Jack-Up Platform Lifting Systems
Jack-up platforms are mobile drilling units used in shallow waters. They have legs that penetrate the seabed and a hull that raises above the water surface. The lifting mechanism relies on massive Hydraulic Cylinder systems. An Offshore Jack-up Platform Lifting Cylinder is designed to lift the entire platform weight – sometimes thousands of tons – and hold it safely against waves and wind. These cylinders must have extremely long stroke, high holding force, and fail-safe locking features. They operate in salt spray and require special chrome plating and seal materials.
2. Offshore Cranes for Heavy Lifting
Offshore cranes are mounted on platforms or vessels to lift subsea equipment, supplies, and personnel. The luffing, hoisting, and slewing functions are powered by Hydraulic Cylinder actuators. An Offshore Crane Hydraulic Cylinder must provide smooth, controlled motion even when the vessel is rolling or pitching. These cylinders often incorporate integrated counterbalance valves to prevent load dropping. Corrosion resistance is critical because crane cylinders are exposed to direct saltwater splash. Many offshore cranes use cylinders with duplex stainless steel rods and ceramic coatings.
3. Corrosion-Resistant Designs for Marine Use
Standard hydraulic cylinders would rust within weeks in a marine environment. Therefore, a Corrosion-Resistant Hydraulic Cylinder for Marine Use incorporates special materials: nickel-chromium plated rods, stainless steel or bronze components, and seawater compatible seals (often Viton or PTFE). The cylinder barrel may be made of duplex stainless steel or coated with heavy-duty epoxy. These Hydraulic Cylinder units are used on deck machinery, anchor handling systems, and subsea controls. Without corrosion protection, even a small pit on the rod can destroy the seal and cause massive leakage.

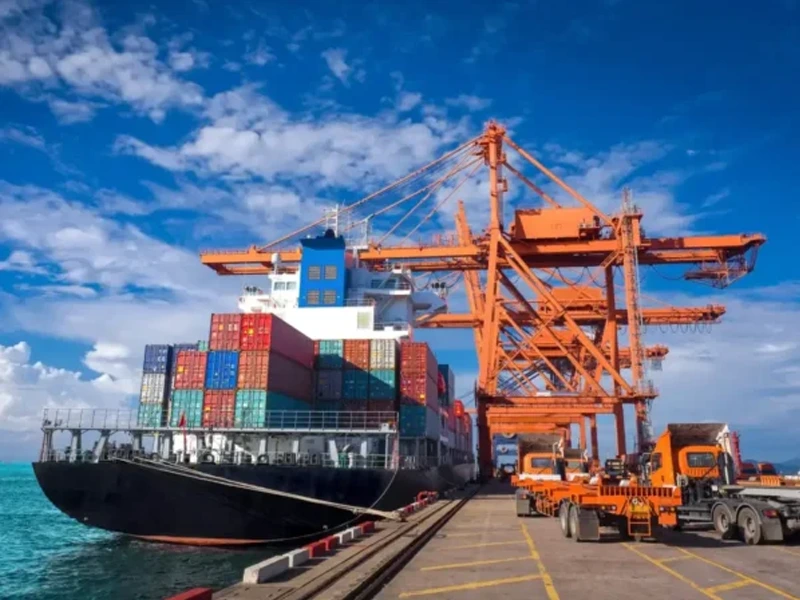

4. Ship Rudder Steering Cylinders
Ship steering systems convert helm commands into rudder movement. For large vessels, hydraulic power is essential. A Ship Rudder Hydraulic Steering Cylinder (often a double-acting cylinder with a feedback system) pushes and pulls the rudder stock. These Hydraulic Cylinder assemblies must respond instantly and hold position against wave forces. They are typically mounted in the steering gear compartment, which may be hot and humid. Steering cylinders are designed for high reliability because steering failure at sea is catastrophic. Many are equipped with dual seals and emergency manual override.
5. Anchor Handling and Mooring Systems
Anchor handling vessels (AHVs) and tugboats use Hydraulic Cylinder systems to deploy, retrieve, and secure anchors. The cylinder pulls the anchor chain into the hawsepipe and locks it. These applications involve shock loads when the anchor catches the seabed. Special cylinders with cushioning and shock-absorbing features are common. Corrosion resistance is again vital because of constant seawater exposure.
6. Subsea Control Systems
Underwater oil and gas production uses hydraulics to operate valves, connectors, and blowout preventers (BOPs). While many subsea actuators are rotary, linear Hydraulic Cylinder units are used for functions like hydraulic connectors and gate valve actuators. These cylinders must withstand external seawater pressure (hundreds of bar) and internal hydraulic pressure. They are made of super duplex stainless steel and use special pressure-balanced seals. A Hydraulic Cylinder for subsea service is a precision, high cost component.
7. Hatch Covers and Ramps
Cargo ships, ferries, and Ro Ro vessels use Hydraulic Cylinder systems to open and close hatch covers, bow doors, and stern ramps. These cylinders operate in a highly corrosive saltwater environment and are often exposed to deck wash. They must function reliably even when covered in ice (for Arctic routes). Many are equipped with heating elements or special low-temperature seals. A failed hatch cylinder can delay port operations significantly.
8. Choosing a Reliable Manufacturer for Marine Hydraulic Cylinders
Given the harsh conditions, sourcing Hydraulic Cylinder units from an experienced supplier is essential. A manufacturer like Yagang Hydraulic Cylinder Manufacturer understands the need for corrosion-resistant materials, precise tolerances, and rigorous testing. Marine and offshore cylinders often require certification of pressure test reports, and coating specifications. A reliable Hydraulic Cylinder supplier will also offer spare parts and repair services globally.
9. Maintenance Tips for Marine Hydraulic Cylinders
To extend the life of a Hydraulic Cylinder in marine service:
Rinse the rod with fresh water after saltwater exposure.
Inspect wipers and rod seals regularly for cuts or hardening.
Check for pitting on the chrome – repack or rechrome if found.
Use the correct hydraulic oil (often high-grade mineral or biodegradable oil).
Store spare cylinders in a dry, covered area.
Conclusion
From lifting jack-up platforms to steering ships, the Hydraulic Cylinder is a critical component in marine and offshore operations. Specialized units like the Offshore Jack-up Platform Lifting Cylinder, Offshore Crane Hydraulic Cylinder, Corrosion-Resistant Hydraulic Cylinder for Marine Use, Ship Rudder Hydraulic Steering Cylinder, and those supplied by Yagang Hydraulic Cylinder Manufacturer demonstrate how engineering adapts to harsh environments. Understanding these applications helps operators select the right Hydraulic Cylinder for their vessel or platform. With proper corrosion protection and regular maintenance, a marine Hydraulic Cylinder will deliver years of reliable service.
