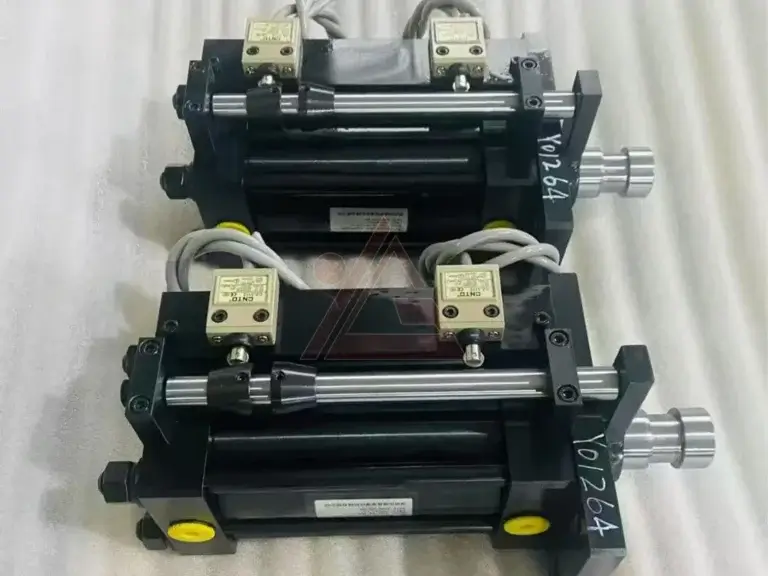

A Compact Hydraulic Cylinder is a reliable workhorse in tight spaces, but like all mechanical components, it requires regular maintenance to deliver long service life. Because compact cylinders are often installed in hard-to-reach locations, neglecting maintenance can lead to costly downtime and premature failure. In this guide, we will provide practical maintenance tips for a Compact Hydraulic Cylinder – from daily visual checks to scheduled seal replacement. For a basic understanding of this cylinder type, see our guide on What Is a Compact Hydraulic Cylinder.
1. Perform Daily Visual Inspections
Before each shift, inspect the Compact Hydraulic Cylinder for external leaks, damaged rod surface, or loose mounting bolts. Look for oil puddles under the cylinder or wetness around the gland (where the rod exits). A small leak today becomes a big failure tomorrow. Pay special attention to a small bore hydraulic cylinder – even a tiny leak can cause significant pressure drop. Also check that the rod wiper is not torn or hardened.
2. Keep the Rod Clean
The piston rod is the most exposed part of a Compact Hydraulic Cylinder. Dirt, dust, and dried fluid on the rod will damage the rod seals and wipers. Wipe the rod daily with a clean, lint-free cloth. For a stainless steel compact cylinder used in food or marine environments, also rinse off salt or chemical residues with fresh water. Avoid using abrasive pads that could scratch the chrome or stainless surface.
3. Monitor Hydraulic Fluid Condition
Contaminated fluid is the number one cause of seal failure. Take fluid samples every 500 operating hours or quarterly. If fluid appears milky (water contamination), dark (oxidation), or contains metallic particles, change it immediately. A high pressure compact cylinder running on dirty fluid will wear out seals within weeks. Also replace return line filters at recommended intervals to keep the system clean.
4. Check for External Leaks at Ports and Gland
Use a flashlight to examine all port connections and the rod gland. A slow drip from a port fitting may only need tightening, but a leak from the gland indicates a worn rod seal. For a long stroke compact cylinder, check the full rod length for oil film – an even film is normal; streaks or drops indicate seal damage. If you find a gland leak, plan to replace the seal kit soon.
5. Inspect Rod Surface for Scoring or Corrosion
Run your fingernail across the piston rod. Any scratch you can feel will cut new seals. Minor scratches can be polished with fine emery cloth (1000-1500 grit). For a heavy duty compact cylinder in mining or construction, inspect the rod after each heavy use. If chrome flaking or deep pitting is found, the rod must be re-chromed or replaced. A corroded rod on a compact hydraulic cylinder will destroy the wiper and rod seal rapidly.
6. Listen for Unusual Noises
Abnormal sounds – knocking, whining, or grinding – are early warning signs. Knocking may come from loose mounting bolts or a bent rod. Whining often means aeration (air in the system) or a failing pump. Grinding suggests metal-o-metal contact inside the cylinder, possibly due to worn bearings or a damaged rod. A high force compact cylinder that suddenly becomes noisy should be taken offline for inspection.
7. Test for Internal Leakage (Drift)
Internal bypass occurs when the piston seals wear out, allowing oil to cross from one side of the piston to the other. To test a Compact Hydraulic Cylinder, fully extend it, shut off the pump, and block both ports. If the rod retracts on its own, piston seals are leaking. For a double acting compact cylinder, also test the retracted position. Perform this test every 1,000 operating hours. Early detection allows a seal replacement compact cylinder repair instead of a full rebuild.
8. Lubricate Mounting Pins and Bearings
If your Compact Hydraulic Cylinder uses clevis or trunnion mounts, the pivot pins need periodic greasing. Dry pins cause binding, side loading, and premature rod seal wear. Use a lithium-based grease and follow the equipment manufacturer’s lubrication schedule. A custom compact cylinder with non-standard mounts may have unique grease fittings – mark them on your maintenance map.
9. Clean the Cylinder Body and Tie Rods (if applicable)
Accumulated dirt on the cylinder body hides leaks and traps moisture. Clean the exterior with a mild solvent and a soft brush. For a stainless steel compact cylinder, use a non-chlorinated cleaner to avoid pitting. Never use a pressure washer directly on the rod gland – water can be forced past the wiper. After cleaning, inspect for rust or pitting on any exposed steel parts.
10. Schedule Regular Seal Replacement
Seals degrade over time even without visible leakage. For most industrial applications, replace the seal kit every 2-3 years or 5,000-10,000 operating hours. A compact hydraulic cylinder seal kit is inexpensive compared to downtime. When replacing seals, also install new wear rings and wipers. Keep a log of seal replacement dates for each cylinder. If your cylinder is a repairable compact cylinder (with removable end caps), plan the replacement during planned shutdowns.
11. Store Spare Cylinders Properly
If you keep spare Compact Hydraulic Cylinders on site, store them upright with ports capped, rods fully retracted, and coated with rust inhibitor. Keep them in a dry, temperature-controlled area. A long stroke compact cylinder stored horizontally may bend its rod if not supported. Label each spare with part number, bore, stroke, and mounting style.
Conclusion
Maintaining a Compact Hydraulic Cylinder involves daily visual checks, rod cleaning, fluid monitoring, leak inspection, rod surface care, noise listening, internal leakage testing, lubrication, body cleaning, scheduled seal replacement, and proper spare storage. Whether you use a small bore hydraulic cylinder, stainless steel compact cylinder, high pressure compact cylinder, long stroke compact cylinder, heavy duty compact cylinder, or custom compact cylinder, a proactive maintenance plan dramatically extends life and reduces unplanned downtime. For foundational knowledge, revisit What Is a Compact Hydraulic Cylinder. Regular care pays back in reliability and lower repair costs.
